Einleitung
Is your phone not playing music correctly or at all? This guide will help your fix this problem by replacing the media speaker in your phone.
Werkzeuge
Ersatzteile
-
-
Locate the small slit on the bottom edge of the device between the back and front cases.
-
Pop the back case off by inserting your finger and pulling the case away from the phone.
-
-
-
Remove SIM card by pushing down and away from the slot, then pulling it out toward the bottom edge of the phone.
-
-
-
Staring near the power button, use a plastic opening tool to disengage the plastic clips securing the midframe.
-
-
-

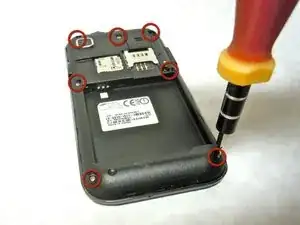

Locate the seven screws on the plastic casing.
-
Using the Phillips #00 Screwdriver, remove all seven screws.
-
Be careful not to lose any of these small screws.
-
-
-
Once all seven screws have been removed, use the Plastic Opening Tools to gently release the plastic snaps around the seam of the black casing.
-
Be careful not to break any of the plastic snaps.
-
-
-

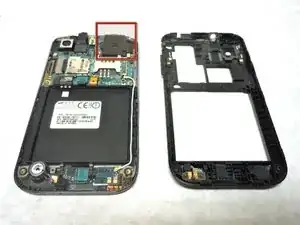

After all the plastics snaps have been released, the black plastic casing will come off easily.
-
Locate the speaker.
-
-
-

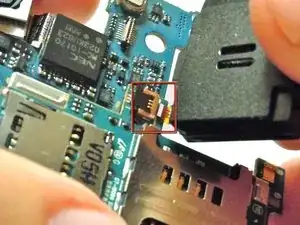

Using the Plastic Opening Tools, carefully lift the golden-brown clamp holding down the speaker's ribbon cable.
-
Remove the speaker by gently pulling it.
-
To reassemble your device, follow these instructions in reverse order.
