Samsung Galaxy S Vibrant Unhooking Antenna Cable Replacement

Geschrieben von: Taylor Catlin
  • Kommentare: 0
Samsung Galaxy S Vibrant Unhooking Antenna Cable Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

If you are having a lot of issues with signal reception, you may want to replace your antenna. Or if you would rather not, you may just want to buy a new phone.

  1. UikZogRNCMwpwYq4
    UikZogRNCMwpwYq4
    SCBfUteKAXbJSmJP
    4Ddoo2VoV4BoGPaf

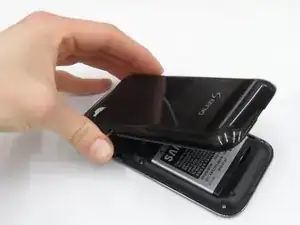

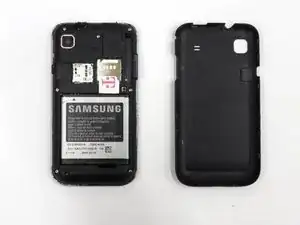

    • Locate the small slit on the bottom edge of the device between the back and front cases.

    • Pop the back case off by inserting your finger and pulling the case away from the phone.

    • If necessary (it shouldn't be), use the Plastic Opening Tools to pry the back case off.

  2. Qd1RTweupSHDICUD
    Qd1RTweupSHDICUD
    WPx1lBaLrOSgJgDt

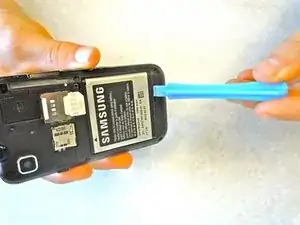

    • Remove the battery by pushing the bottom edge of the battery up and away from the phone

    • If you would prefer, you may use the Plastic Opening Tools for this step as well.

  3. FPwZVFJUnjxWcBV2

    • Remove SIM card by pushing down and away from the slot, then pulling it out toward the bottom edge of the phone.

  4. Np3AdaYVFgrEK3iU

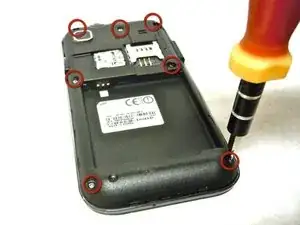

    • Remove the seven 4.5 mm Phillips #00 screws along the perimeter of the phone.

  5. 5pCHnh1Z4AIS6Zxy
    5pCHnh1Z4AIS6Zxy
    dHYoaBb5yisSbhxs
    ptAAU6FpVeEo5wmD

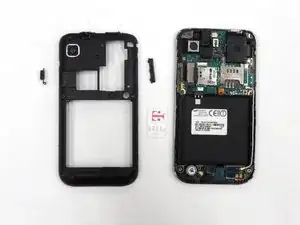

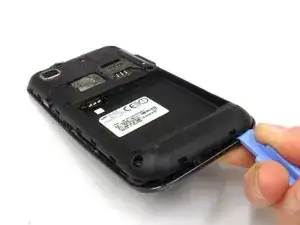

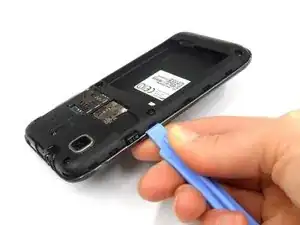

    • Staring near the power button, use a plastic opening tool to disengage the plastic clips securing the midframe.

    • Work carefully, and disengage all of the clips before removing the midframe.

    • The power button and the volume control button on the sides of the phone will fall out when the midframe is removed.

  6. QOFEA2lvXGFRaYJa
    QOFEA2lvXGFRaYJa
    WBAVreYi1VHGhhdi

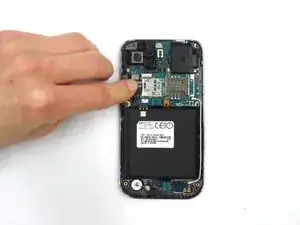

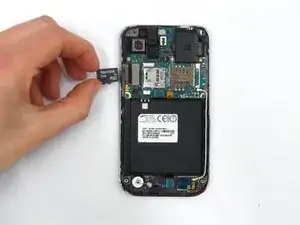

    • Slide the SD card out of its slot.

  7. VOYuqbmeMGUwEitB
    VOYuqbmeMGUwEitB
    ZJhYwqZEqvwWZIgZ
    U2fsSppw2nrAkZ6I

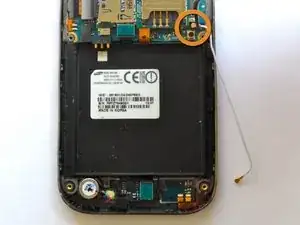

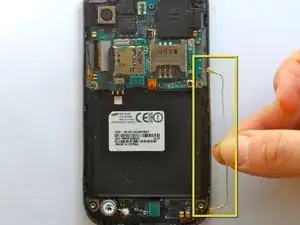

    • Disconnect the antenna using Tweezers. Do the lower end first, and then the upper.

    • Do the lower end first, and then the upper.

    • Pull the antenna cable out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
