Samsung Galaxy S4 Active I537 Charging port Replacement

Geschrieben von: ted582 ted583
  • Kommentare: 3
Samsung Galaxy S4 Active I537 Charging port Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

25 Minuten

Einleitung

how to replace the charging port for samsung galaxy 4 active att SGH I537

  1. UFrCW6xUYbSiNFBP
    UFrCW6xUYbSiNFBP
    ThmPMSOqYxyiC1XZ

    • Remove back cover

    • Remove battery

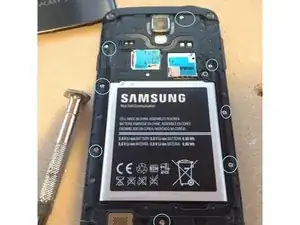

  2. WcU4iJIPQ3lkjLLb

    • remove battery before taking off screws

    • remove the 8 screws in the back using a small Phillips screw driver

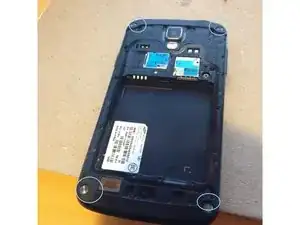

  3. od5GA6aXBQmoPWyu

    • using a prying tool or something remove the 4 covers that are blocking the last 4 screws

    • you might have to put a bit of pressure to get them off

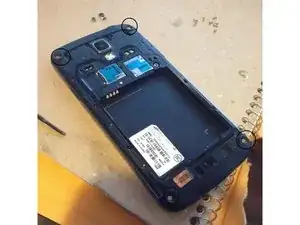

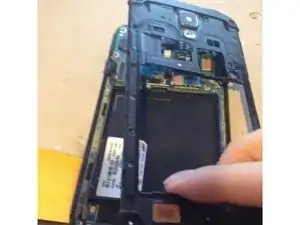

  4. hLMJZHfVmApAkw5a
    hLMJZHfVmApAkw5a
    w1XMGcDhEDcV1BZX

    • Remove the 4 screws

    • with a prying tool or fingers go around the edges to remove the plastic back part of the phone

    • be carefull not to break it by using too much force

  5. G1RL3WQIhRZyTQcg

    • Remove these 2 screws then take off the white plastic part

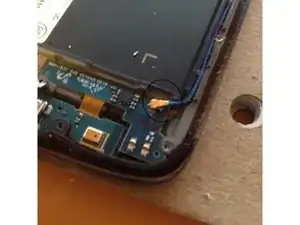

  6. OrjsZQKlpTQEZKj5

    • use prying tool or finger to unplug antenna cable

    • be extra careful unplugging this

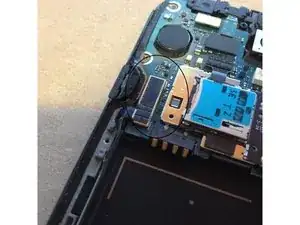

  7. stgIAVPTR1Cv5hd6

    • use prying tool or fingers to unplug this connection

    • again be careful

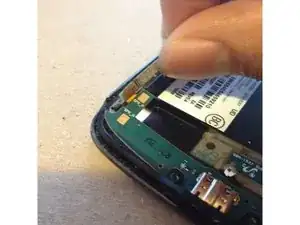

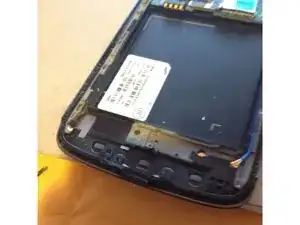

  8. BsipvMUIxDl6sgjU
    BsipvMUIxDl6sgjU
    GPxbPtvesnFh5DbC

    • you can now use the prying tool or fingers to remove the charging port and replace it with the new one

    • follow steps in reverse to resemble

    • carefully

Abschluss

To reassemble your device, follow these instructions in reverse order.
