Samsung Galaxy S4 Display Einheit ersetzen

Geschrieben von: Sam Goldheart
  • Kommentare: 75
Samsung Galaxy S4 Display Einheit ersetzen

Schwierigkeitsgrad

Mittel

Schritte

28

Zeitaufwand

1 - 3 Stunden

Einleitung

Verwende diese Anleitung, um die Display Einheit deines Samsung Galaxy S4 zu ersetzen.

  1. rjhlmKL4roqDcNeD
    rjhlmKL4roqDcNeD
    ySIEOikDPMFCTh6j

    • Heble mit einem Plastic Opening Tool, oder deinem Fingernagel, in die Kerbe links von den Rückkamera, bei dem Power Button.

  2. QoGD1nhUjIK4SYhA
    QoGD1nhUjIK4SYhA
    mYdKICGURgG1VuPm
    EGyVAufYjRnV5oMH

    • Hebe das hintere Gehäuse an der Ecke, die der Kerbe am nächsten ist, an und entferne es von dem Gerät.

    Where is the divot? Please let me know that

    James -

    I purchased a blue plastic opening tool(AKA: Spudge) like the one used in the above Step 1 rear cover pic and found the divot and was able to take off the rear cover as per the “Step 2 “ instructions.

    Terry Crawford, Jr. -

  3. MDC6e1YyIBLkTSJq
    MDC6e1YyIBLkTSJq
    r4qIuNXi4DRJBNYO
    alOZWSSKuQtAOYyx

    • Drücke die microSD Karte mit dem Fingernagel etwas tiefer in ihren Slot, bis du ein Klick hörst.

    • Lasse die Karte nach dem Klicken los. Daraufhin ploppt sie aus dem Slot.

    • Entferne die microSD Karte.

    • Beim Wiederzusammenbau drücke die microSD Karte in den Slot, bis sie wieder einrastet.

    I was able to remove the MicroSD Card as per the Step 3 MicroSD instructions with no problems.

    Terry Crawford, Jr. -

  4. crygJXPQtUYDKNlg
    crygJXPQtUYDKNlg
    qFUmmdiFJSbJncKZ
    24gAbT1EpiKW1ldS

    • Führe ein Plastic Opening Tool, oder deine Finger, in die Kerbe am Akkufach und hebe den Akku nach oben.

    • Entferne den Akku von deinem Samsung Phone.

    it worked for me

    John Donovan -

  5. MQ1HoKUOlTYUB2Fl
    MQ1HoKUOlTYUB2Fl
    sHEGGRwOQFo3IeR5
    FldhpEixJL5ycMhU

    • Drücke die SIM Karte mit einem Plastic Opening Tool oder dem Fingernagel etwas tiefer in ihren Slot, bis du ein Klick hörst.

    • Lasse die Karte nach dem Klicken los. Daraufhin ploppt sie aus dem Slot.

    • Entferne die SIM Karte.

    • Beim Wiederzusammenbau drücke die SIM Karte in den Slot, bis sie wieder einrastet.

    Looks easy but doesn't work. No one has a plastic opening tool. Using fingernail, you can press SIM card into slot but it does not pop out so you can remove it.

    Laurie McWherter -

    I agree with the comment above

    I also don't have a plastic tool and my finger nail won't pop the card out.

    Grethe Montano. September 22

    Grethe Montano -

  6. EDtlEYuMDEYXrblv

    • Entferne die neun 4,0 Kreuzschlitzschrauben, mit denen der Mittelrahmen an der Display Einheit befestigt ist.

    How much it will cost to replace a midframe

    kannan -

    How much cost will be on replace a midframe

    Hiren pedhadiya -

    I'm seeing midframes available on Ebay for around $10.

    Alex -

    I purchased a 1.5x40mm Phillips screw driver and was able to remove all 9 40mm screws from the midframe as per the Step 6 Midframe instructions.

    Terry Crawford, Jr. -

  7. WSuKHwiYL4wEeKPM
    WSuKHwiYL4wEeKPM
    A3gOcQAfyqxkjAeK

    • Der Mittelrahmen ist mit mehreren Kunststoff-Clips hinter der Chromeinfassung des Mittelrahmens an der Display Einheit befestigt.

    • Starte auf der Seite, wo sich der Lautsprecherregler befindet. Führe dein Plastic Opening Tool zwischen die Chromeinfassung um das Displayglas und das größere Chromrandteil.

    • Fahre mit dem Opening Tool an der Spalte entlang und trenne dabei die Kunststoff-Clips.

    • Sei sei vorsichtig beim Hebeln und heble gerade stark genug, um die Kunststoff-Clips zu trennen—in der Einfassung des Mittelrahmens gibt es einige dünne Punkte, die brechen können, wenn du sie zu stark biegst.

    I used same tool as in the photo and i broke the display. I think you should use a very thin plastic tool, such as a credit card but even more thin and flexible.

    nicosoranno4gxo -

    I purchased a blue plastic opening tool(AKA: Spudger) and was able to remove the midframe from the display assembly as per the Step 7. I had to hold the cell phone firmly in my left hand while I gently forced the spudger between the chrome bezel and the midframe with my right hand and heard plastics clips separate and saw the midframe start to separate from the display assembly. Don’t be afraid to get that spudger in and just gently go down the side of the phone and you will hear the plastics clips detach and the midframe to separate more and more until you are able to separate them 100%. I started at the volume button side of the phone in Step 7 and ended at the power button side in Step 9.

    Terry Crawford, Jr. -

    This blue Case Opening tool has a less rigid edge that is kinder to trim than the hard black Spudger shown in later steps. I was glad to have the right tool on hand at this step. Use it as a wedge and slide it along the gap.

    Tom Huber -

  8. mlLqgVTFjlULZmXr
    mlLqgVTFjlULZmXr
    xbBRETlSI6ZKDpZJ

    • Heble weiter um die Ecke des Mobiltelefons herum.

    • Fahre mit deinem Opening Tool an der Spalte zwischen dem Mittelrahmen und dem Display entlang des unteren Teil des Gerätes und löse dabei die dortigen Kunststoff-Clips.

    I purchased a blue plastic opening tool(AKA: Spudger) and was able to remove the midframe from the display assembly as per the Step 7. I had to hold the cell phone firmly in my left hand while I gently forced the spudger between the chrome bezel and the midframe with my right hand and heard plastics clips separate and saw the midframe start to separate from the display assembly. Don’t be afraid to get that spudger in and just gently go down the side of the phone and you will hear the plastics clips detach and the midframe to separate more and more until you are able to separate them 100%. I started at the volume button side of the phone in Step 7 and ended at the power button side in Step 9.

    Terry Crawford, Jr. -

  9. NjGCILVpYvQZSYBN
    NjGCILVpYvQZSYBN
    KTbBqoxDr3GYJkMc

    • Heble weiter um die Ecke herum in Richtung der Power Button Seite.

    • Fahre mit dem Opening Tool an der Spalte entlang.

  10. YxMui1KI6EfoKuUH
    YxMui1KI6EfoKuUH
    KjQOOeflFdfxLybe

    • Fahre mit dem Plastic Opening Tool entlang der Oberseite des Mobiltelefons und löse die letzten Clips. So lässt sich der Mittelrahmen von der Display Einheit lösen.

    • Nun kannst du mit deinem Plastic Opening Tool noch einmal um das Gerät herumfahren, um sicherzugehen, dass alle Kunststoff-Clips gelöst sind.

    On my phone, there was another clip holding the white midframe to the battery compartment, in the middle of the top edge of the battery compartment, near the battery contacts. If you don't release that before removing the midframe, it is easy to break.

    josephoswald -

    I purchased a blue plastic opening tool(AKA: Spudger) and was able to remove the midframe from the display assembly as per the Step 7. I had to hold the cell phone firmly in my left hand while I gently forced the spudger between the chrome bezel and the midframe with my right hand and heard plastics clips separate and saw the midframe start to separate from the display assembly. Don’t be afraid to get that spudger in and just gently go down the side of the phone and you will hear the plastics clips detach and the midframe to separate more and more until you are able to separate them 100%. I started at the volume button side of the phone in Step 7 and ended at the power button side in Step 9. In Step 10 just make sure all the plastic clips are separated from the midframe and the display assembly so you can pull them apart 100% without breaking them.

    Terry Crawford, Jr. -

  11. MDb1XKUptBuYX6Bu
    MDb1XKUptBuYX6Bu
    R6HtRH5JnJXupZRr
    rDyAIYBh3bl6IN2Z

    • Entferne den Mittelrahmen von der Display Einheit.

    here i leave them a video i made doing the work

    https://www.youtube.com/watch?v=85pOvI6O...

    enjoy

    Gabriel Barrandeguy -

    My Sprint S4 was slightly different then the one pictured above but I just completed this repair in under 10 minutes.. It would have been slightly quicker but fooling around with those little screws can be irritating if you have big hands.

    Michael Willis -

    Just did this on my S4. Instructions were extremely helpful, but I had to remove a screw (step 10.5?) to remove the upper display assembly bracket. Other than that, flawless! Thanks!

    JackieME -

    The 3rd image of the 11th step shows that when the midframe is removed, some parts come along with it (at the bottom part of it). What are these parts? should they be removed too and placed in the new midframe? Are they easy to remove?

    Chris -

  12. QOBJ3LFbWBFVVGcA
    QOBJ3LFbWBFVVGcA
    yVD1EFNFEaXchvOf
    63C2pIomgcyGqkCc

    • Trenne den Stecker der USB Platine mit dem flachen Ende eines Spudgers.

    • Trenne den Kabelstecker der Frontkamera.

    • Trenne den Kabelstecker der Ohrhörer-/ Lautsprecher Einheit.

  13. rNPnmChVeydDDOkQ
    rNPnmChVeydDDOkQ
    XLIVIYF1GdMvaGRN
    epVsggkyQGhUiBBG

    • Trenne den Kabelstecker der Kopfhörerbuchse.

    • Trenne den Kabelstecker des Displays/Digitizers.

    • Trenne den Kabelstecker der Antenne.

    My model had an antenna connection next to the usb board connector in addition to the antenna connection near the display cable connector.

    Drew -

    That's point a, on the daughter board (where the USB is located is point b. You must connect it from a to b

    djweijers1997 -

    I could not get the screen connector to fit on with the motherboard assembly in place. I had to remove the motherboard assembly, attach the screen connector, and then carefully replace the motherboard assembly, with the screen connector still attached..

    Tom4G -

    Same as Tom4G above. When trying to connect the screen connector, it would not give me that nice clear snap indicating a positive connection. The phone powered up with no screen. So, I disconnected the other connectors again, lifted the motherboard out and connected the screen connector by pinching it with finger and thumb from both sides of the motherboard, this time getting a nice snap when it engaged.

    speedrzr -

  14. rj6NCBPKbIQYnvFu

    • Entferne die einzelne 2,4 mm Kreuzschlitzschraube von der Motherboard Einheit.

    As Sam Lionheart states at the end of this guide, some of these phones have an additional antenna on the opposite side of the phone. Be sure to detach it before removing the motherboard.

    mcr4u2 -

  15. aePe63fVSmTOtsPY
    aePe63fVSmTOtsPY
    etpnFuSt2fSS2A1Y

    • Entferne vorsichtig das Motherboard.

    • Halte das Motherboard an seinen Kanten, um Schäden durch elektrostatische Entladung zu vermeiden. Achte darauf, dass es nicht an Kabeln hängenbleibt, wenn du es aus der Display Einheit entfernst.

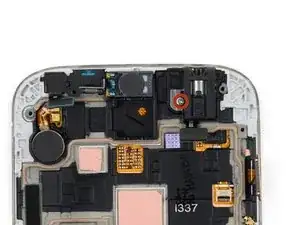

  16. M6LDETEiodQjtxTS

    • Entferne die einzelnen 2,4 Kreuzschlitzschrauben, welche die Kopfhörerbuchseneinheit am Display befestigen.

    My assembly had a silver conductive tape shield over the array of components shown in the middle of this photo. I peeled the old one off and attached it in the same location on my new digitizer.

    David -

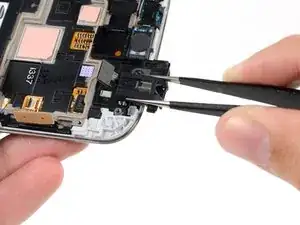

  17. Ny4onYB2SMAm2ncs

    • Entferne die Kopfhörerbuchseneinheit.

    The headphone jack is surrounded by rubber. It's kind of squeezed in there. You can pry on it to get it out.

    jonathan -

    I had a quick question there's a little white rubber circular gasket piece that the headphone jack covers up

    What's that piece called?

    damian lasher -

    The small rectangular milky-white silicon gasket appears to be a diffuser for ambient light sensor.  I removed it with a small screwdriver, and replaced it in the same location in my new screen assembly.

    Nicholas Crisp -

    The small rectangular milky-white silicon gasket appears to be a diffuser for an ambient light sensor.  I prised it out of the old assembly and placed it in the new screen assembly.  I also started transferring the components as they were removed from the old screen, so the head-phone jack went straight into the new at this point.  I may regret that later…

    Nicholas Crisp -

    The angle of the picture here makes it appear like the head phone jack needs to be slid out of the top of the phone. This is impossible due to small bits of plastic holding it in at the top. If you're having trouble, the headphone jack is in fact supposed to lift straight up out of the phone.

    sigoshi -

    Additionally, there might be a small amount of adhesive holding the headphone jack to the board (there was some in my device). Apply a bit of heat to loosen it up, if needed.

    Mikolaj Banasik -

    it is easy to pop off, if you apply pressure to the right point. Using a plastic pair of tweezers or a pry tool, push at the lower right corner and gradually increase the pressure, if you apply enough pressure it will just pop right off.

    Wissmiller Services -

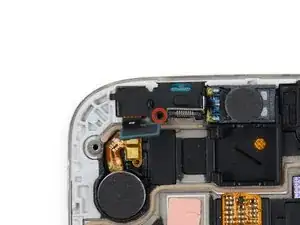

  18. klv5gjhY1h2uodKm
    klv5gjhY1h2uodKm
    W4d3KUYSwbOSfKQy

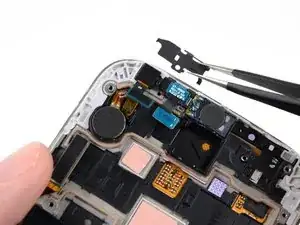

    • Falls vorhanden, entferne die 2,4 mm Kreuzschlitzschraube, welche die obere Klammer der Display Einheit sichert.

    • Entferne die obere Klammer der Display Einheit.

    I’ve found that a pretty easy way of popping the bracket off is to slide a thin end of the spudger from the left, then delicately push in - it just popped off easily in my case.

    Mikolaj Banasik -

    Be careful with this part! It is very springy. I was gently trying to lift it and it shot across the room!

    NikonErik -

  19. 3i1WYISSl4FHw5PM

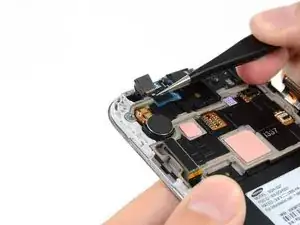

    • Entferne die Frontkamera von der Display Einheit.

  20. BUIUp2bAyrqjk6GY

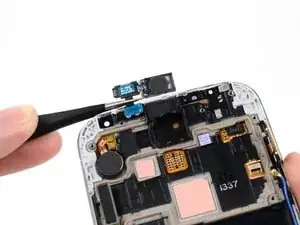

    • Entferne die Ohrhörer-/Lautsprecher Einheit von dem Display.

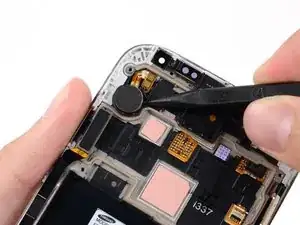

  21. qD6eOcyUwFdVgc45
    qD6eOcyUwFdVgc45
    1aL3ZCdYR1qTXjga
    mqwcZhSMmYIKtXHC

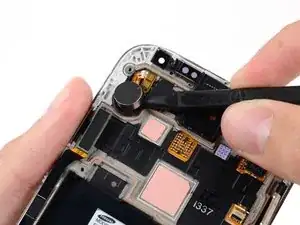

    • Fahre mit der Spudgerspitze unter das Vibrationsmodul, um es von dem Kleber, mit dem es am Display befestigt ist, zu befreien.

    • Entferne das Vibrationsmodul noch nicht, da sein Kabel noch an der Rückseite der Display Einheit angebracht ist.

    • Heble mit der Spudgerspitze das Vibrationsmotorkabel von der Display Einheit ab.

    • Hitze wirkt hier ausnehmend "überzeugend", um den Kleber aufzuweichen. Mäßige Anwendung von Hitze aus einer Heißluftpistole weicht den Kleber auf. Wenn du ihn vorsichtig behandelst, kannst du ihn aufbewahren und wiederverwenden.

    also you can really feel free to dig the motor out as the housing will be discarded.

    Pavlina G -

    I would suggest getting the cable loose first as the vibrator comes out suddenly and you could break off the cable if it is still glued down.

    ken -

    bro i cant get it out with a spupger and a i dont have a heat gun/hair dryer any more tips

    Libety Cunty -

  22. XQeI5ftH4k54xAUj

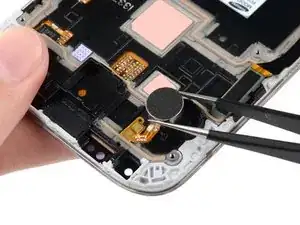

    • Entferne den Vibrationsmotor hinten vom Display

  23. 1hQYkhCkyWHei6xN
    1hQYkhCkyWHei6xN
    QgqVTOnBCehqBfWg

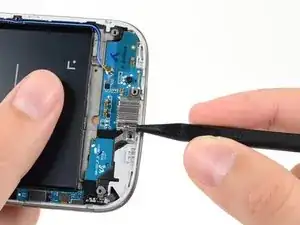

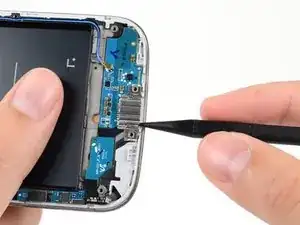

    • Setze die Spudgerspitze vorsichtig zwischen dem USB Port und dessen Klammer an und heble eine Seite der Klammer aus seiner Verankerung.

    Use a tiny screwdriver to pry up next to the left post of the USB port bracket instead of the spudger and it will pop right off. I tried the spudger but it didn't work for me.

    computeripodrepair -

  24. YE3wKckB5iepTDVd

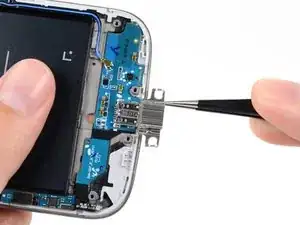

    • Entferne die USB Port Klammer vom USB Port.

    • Die Klammer ist leicht elastisch und sollte beim Wiederzusammenbau zurück an ihren Platz poppen.

  25. fGKsDkwkmGSOUEeK
    fGKsDkwkmGSOUEeK
    smbQumVHrciI1LDW

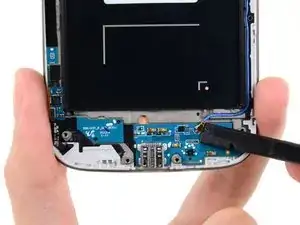

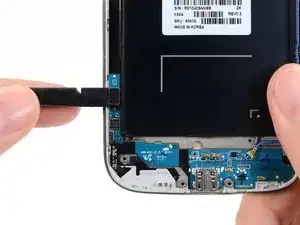

    • Trenne das Kabel der Softtaste von dem USB Board Kabel. Sei hier besonders vorsichtig; sobald du das Kabel entfernt hast, ziehe es von der USB Platine weg.

    • Trenne das Verbindungskabel der Antenne von der USB Platine.

  26. cBpBUX4dRyujRGR6
    cBpBUX4dRyujRGR6
    n4IjaJ4AGMUe6kGr
    Mob1BEZoerS5UXRw

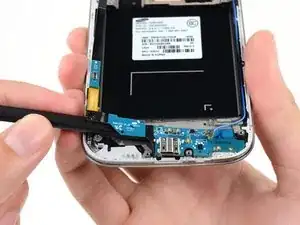

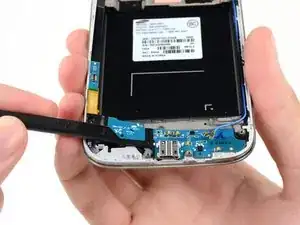

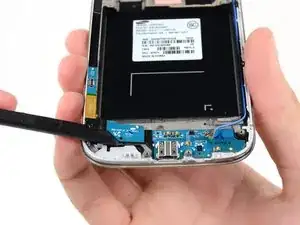

    • Die USB Platine ist mit leichtem Kleber an der Display Einheit befestigt.

    • Fahre mit dem flachen Spudgerende vorsichtig unter die USB Platine, um sie von dem Kleber zu befreien.

    • Gehe langsam vor und sei vorsichtig, dass du die Platine nicht durchbiegst.

    This one was a bit tricky. The board was very tight to the frame so I ended up having to remove the board from the opposite side slowly until I got to the front, then used the tool to remove it.

    mitch -

    I also had the most trouble with this part -- it's very well-glued to the assembly, so I used my hair dryer to loosen it somewhat and pried it up with tweezers. This seems to be the part most likely to crack (because it's long and glued down the entire length of the board), so I recommend patience and a little heat to help things along.

    Andrew Richards -

    I’ve found that applying the heat loosens up the adhesive, making it easier to remove the board.

    You can either use a heat gun on lowest setting, or a hair dryer, to apply heat to the board area, then start slowly from the left side. Adhesive appears to be applied as a strip of materials, so with enough care, you can keep it in place and for keeping the USB board in place after reassembly.

    Mikolaj Banasik -

    Double-sided tape was used in the i9500 version I used. Be very slow. Heat from a hair dryer helped.

    Chris Chaulk -

    Working on Verizon SCH-i545, if you’ll follow the instructions, they really do help. The board will bend ever so slightly because your spudger is crafted at an angle by default. The key is to roll it out, and literally keep the spudger as close to the frame as possible. I removed mine with no heat application. I’ll update this once the repair is completed to let you know how the overall process was and what galaxy diags say once the phone is back together. #StrivelinkTech

    Sturgis Baxter -

    Repair went well, hardware working as desired. Used a B stock part to replace the screen since it’s a beater phone repair anyway. Board works fine, went back in smoothly with no heat applied.

    Sturgis Baxter -

  27. KPLhkutCv4SC4HyB

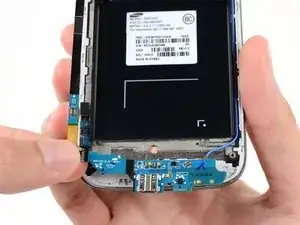

    • Entferne die USB Platine von der Display Einheit.

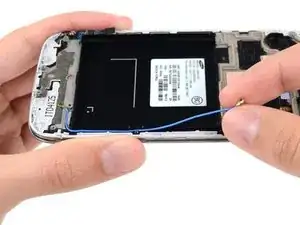

  28. H35uZcEpkPhgtQVa
    H35uZcEpkPhgtQVa
    XQBEdjBWuo1u4pDY
    IITFDJeKVBmU4GSJ

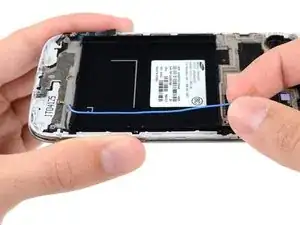

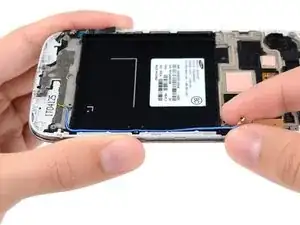

    • Hole das Verbindungskabel der Antenne aus seinem Kanal hinten auf der Display Einheit und entferne es.

    • Andere Modelle haben möglicherweise ein weiteres Antennenkabel auf der anderen Seite des Mobiltelefons. Entferne auch diese Antenne von der Display Einheit.

    • Beim Wiederzusammenbau ist es hilfreich, zuerst die USB Platine zu installieren und dann das Verbindungskabel der Antenne wiederzuverbinden, bevor man es zurück in seinen Kanal legt.

    When did the display get replaced? Is the last piece trash and the phone rebuilt on the new one?

    Mark Peterson -

    Yep, the component leftover after removing the antenna interconnect cable is the display assembly. The digitizer, LCD and display frame are a glued together unit, replacing the entire assembly is much safer than trying to delaminate the display. The next step would indeed be to rebuild the phone on top of the new display assembly.

    Sam Goldheart -

Abschluss

Arbeite die Schritte in umgekehrter Reihenfolge ab, um dein Gerät wieder zusammenzubauen.

Tinte & Feder

Sam Goldheart

Mitglied seit: 19/10/12

457712 Reputation

28 Kommentare

HELP! step 28 just ends how do I insert the new one, how do I resemble the parts that used adhesives to stick?

Tom -

Nearly all the guides end like this, you just need to work backwards through the steps using the new hardware.

Dave Davidson -

Just work backwards like Nick stated. I usually reverse assemble the parts I take off so I know the order in which I need to put them back in.

Sturgis Baxter -

Just run it along its track. Use a plastic spudger to push it down. Use 3m double sided adhesive tape to re-attach parts that require adhesive.

Fausto Lebron -

What is the difference between an AT&T digitizer and a Verizon digitizer? How interchangeable are they?

Martin -

I believe the digitizer is the same but if you buy the digitizer with assembly (frame) there is a difference between the models. Here are the model numbers for all the versions. I545 (Verizon) , I337 (AT&T), L720 (Sprint), M919 (T-Mobile), I9500 (International), i9505 (International)

Fausto Lebron -

The "display assembly" I purchased was very simple: glass and LCD and a small board with cable and that's it. It didn't have all this beefy mid frame stuff so I had to reuse my old one. Check to see which part you purchased before going through unnecessary disassembly steps like I did.

Logan Kennedy -

This guide was perfect, phone works like new again. Thank you for putting this together.

Brant -

When you get to Step 7, it is much safer (for the screen) to begin to separate the mid frame from the seam inside the battery compartment. Place the phone face down on a clean sheet of paper, put your fingernail in the seam and pull it apart with spudger. Much less likely to do any damage to the screen.

Gary McIntosh -

Help, i replaced the display assembly, but the touchscreen isn't working. any idea of what i've done wrong? or did maybe damaged something?

lilytjuhh -

This just happened to me too, I think I might have pulled the digitizer by mistake or took off the sticker on the back which might have messed up the ribbon cables, did you fix it yet? My touch screen isn't working now also.

justin -

Absolutely 100% perfect. Everything works and I have my Galaxy S4 back. Couldn't be happier!!!

macmcknight -

Thanks SOO MUCH! This was awesome. Just pay close attention to the pictures as you go, take your time, and save yourself about $150 vs having a shop do it...

Further advice: DO NOT use anything metal when prying apart the frame in the beginning... The cell phone tool kits are worth it.

jrupertnh -

Superb guide, got me there successfully from start to finish ... Thank you

Kevin -

I have two phones with the same problem. After reassembly, just before I install the midframe, I check the phone with the sim card and it works perfect. When I install the midframe I get intermittent on one phone and continuous and the other 'sim card not recognized restart the phone'. I get this, as I've said, only when the midframe is re-installed.

JustinTimeToo -

Perfect! Great guide, all functions a go.

Don Joseph -

I have a Verizon Samsung Galaxy S4, and during disassembly I noticed that it contains two antennas - one in the position as shown in this guide and one on the exact opposite side (colored light red). It too must be disconnected in the same fashion as the antenna in this guide. Removal and installation of both antennas was simple. As the guide suggests, I would recommend installing USB board and motherboard back in place prior to reinstall and routing of antenna wires. Excellent guide. Fixed my broken S4!

coastguard26 -

thank you thank you thank you!!!! i didn't have any of the tools but used my thumb nails!

twiskinmcmillan -

Easy. Thanks for sharing this tutorial.

Philippe RIPAUX -

Hi i want s4 display no wornty i want

pratik wadhwa -

This was AWESOME! I was able to fix my phone. It took me about 2 hours as I kept stopping for breaks.

Pavlina G -

I did it, and it wasn't too hard.

Here are some tips:

- when removing the midframe, begin from the side with the volume buttons like mentioned here

- the USB board can be bent a bit, it will probably still work fine if it did not crack when you removed it.

- The GT-i9515 also uses the GT-i9505 screen

- make sure that all ribbon cables are really fully attached, apply a bit of pressure

- when reattaching the midframe, make sure to clip in the power button side first, you will have a VERY hard time clipping it on there last. I had to remove the midframe again and start at that side

Schule04 -

Great guide, helped me out alot

nev tevi -

Thanks - Works well

Rainer Nickel -

Good walk through.

Moïse Chadwick -

Thanks for the great, easy instructions iFixit!!!

noahthomashall -

Great guide, I just did it now for fun, I broke the S4 display in January 2019 and wanted to try to replace the screen. So today I managed it thanks to this guide. The USB board was hard to remove and I bent it like a potato chip, but still works fine. I put the I9505 display part on I9506 and it still works. The plastic mid-frame was super fragile, the places for screws crack easily (even before reassembly) and also the edge broke completely on one place during my re-assembly.

Lukáš Z -
