Samsung Galaxy S4 Frontkamera ersetzen

Geschrieben von: Sam Goldheart
  • Kommentare: 30
Samsung Galaxy S4 Frontkamera ersetzen

Schwierigkeitsgrad

Mittel

Schritte

14

Zeitaufwand

Keine Schätzung

Einleitung

Benutze diese Anleitung, um die Frontkamera deines Samsung Galaxy S4 zu ersetzen.

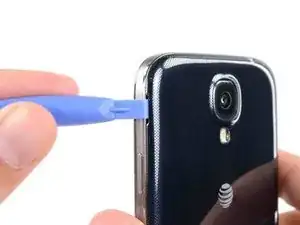

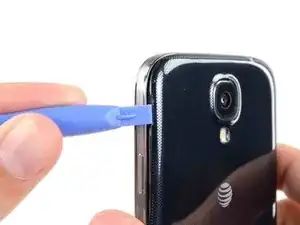

  1. rjhlmKL4roqDcNeD
    rjhlmKL4roqDcNeD
    ySIEOikDPMFCTh6j

    • Heble mit einem Plastic Opening Tool, oder deinem Fingernagel, in die Kerbe links von den Rückkamera, bei dem Power Button.

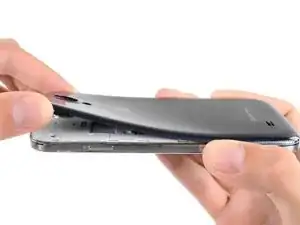

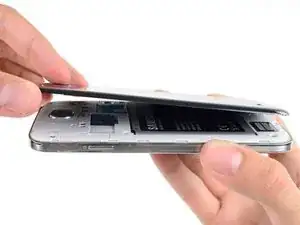

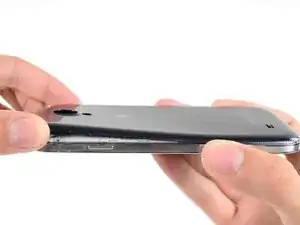

  2. QoGD1nhUjIK4SYhA
    QoGD1nhUjIK4SYhA
    mYdKICGURgG1VuPm
    EGyVAufYjRnV5oMH

    • Hebe das hintere Gehäuse an der Ecke, die der Kerbe am nächsten ist, an und entferne es von dem Gerät.

    Where is the divot? Please let me know that

    James -

    I purchased a blue plastic opening tool(AKA: Spudge) like the one used in the above Step 1 rear cover pic and found the divot and was able to take off the rear cover as per the “Step 2 “ instructions.

    Terry Crawford, Jr. -

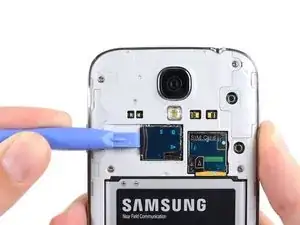

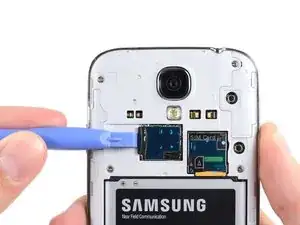

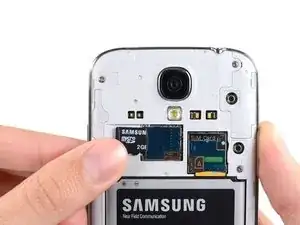

  3. MDC6e1YyIBLkTSJq
    MDC6e1YyIBLkTSJq
    r4qIuNXi4DRJBNYO
    alOZWSSKuQtAOYyx

    • Drücke die microSD Karte mit dem Fingernagel etwas tiefer in ihren Slot, bis du ein Klick hörst.

    • Lasse die Karte nach dem Klicken los. Daraufhin ploppt sie aus dem Slot.

    • Entferne die microSD Karte.

    • Beim Wiederzusammenbau drücke die microSD Karte in den Slot, bis sie wieder einrastet.

    I was able to remove the MicroSD Card as per the Step 3 MicroSD instructions with no problems.

    Terry Crawford, Jr. -

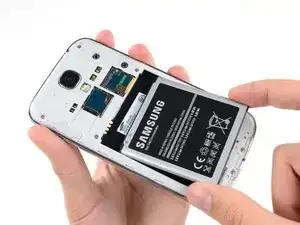

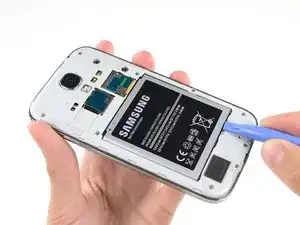

  4. crygJXPQtUYDKNlg
    crygJXPQtUYDKNlg
    qFUmmdiFJSbJncKZ
    24gAbT1EpiKW1ldS

    • Führe ein Plastic Opening Tool, oder deine Finger, in die Kerbe am Akkufach und hebe den Akku nach oben.

    • Entferne den Akku von deinem Samsung Phone.

    it worked for me

    John Donovan -

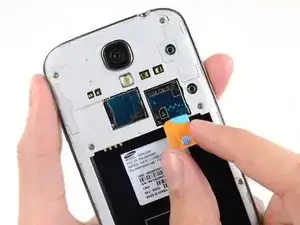

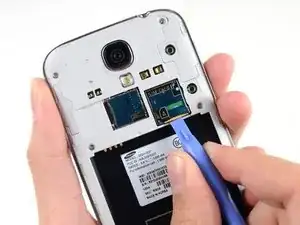

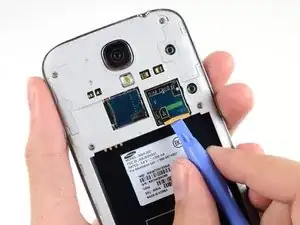

  5. MQ1HoKUOlTYUB2Fl
    MQ1HoKUOlTYUB2Fl
    sHEGGRwOQFo3IeR5
    FldhpEixJL5ycMhU

    • Drücke die SIM Karte mit einem Plastic Opening Tool oder dem Fingernagel etwas tiefer in ihren Slot, bis du ein Klick hörst.

    • Lasse die Karte nach dem Klicken los. Daraufhin ploppt sie aus dem Slot.

    • Entferne die SIM Karte.

    • Beim Wiederzusammenbau drücke die SIM Karte in den Slot, bis sie wieder einrastet.

    Looks easy but doesn't work. No one has a plastic opening tool. Using fingernail, you can press SIM card into slot but it does not pop out so you can remove it.

    Laurie McWherter -

    I agree with the comment above

    I also don't have a plastic tool and my finger nail won't pop the card out.

    Grethe Montano. September 22

    Grethe Montano -

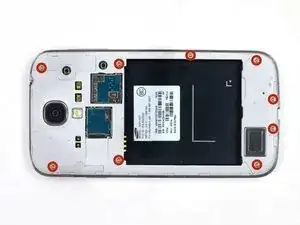

  6. EDtlEYuMDEYXrblv

    • Entferne die neun 4,0 Kreuzschlitzschrauben, mit denen der Mittelrahmen an der Display Einheit befestigt ist.

    How much it will cost to replace a midframe

    kannan -

    How much cost will be on replace a midframe

    Hiren pedhadiya -

    I'm seeing midframes available on Ebay for around $10.

    Alex -

    I purchased a 1.5x40mm Phillips screw driver and was able to remove all 9 40mm screws from the midframe as per the Step 6 Midframe instructions.

    Terry Crawford, Jr. -

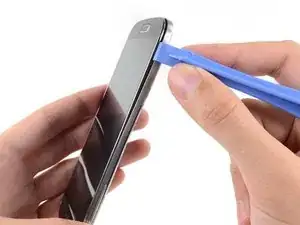

  7. WSuKHwiYL4wEeKPM
    WSuKHwiYL4wEeKPM
    A3gOcQAfyqxkjAeK

    • Der Mittelrahmen ist mit mehreren Kunststoff-Clips hinter der Chromeinfassung des Mittelrahmens an der Display Einheit befestigt.

    • Starte auf der Seite, wo sich der Lautsprecherregler befindet. Führe dein Plastic Opening Tool zwischen die Chromeinfassung um das Displayglas und das größere Chromrandteil.

    • Fahre mit dem Opening Tool an der Spalte entlang und trenne dabei die Kunststoff-Clips.

    • Sei sei vorsichtig beim Hebeln und heble gerade stark genug, um die Kunststoff-Clips zu trennen—in der Einfassung des Mittelrahmens gibt es einige dünne Punkte, die brechen können, wenn du sie zu stark biegst.

    I used same tool as in the photo and i broke the display. I think you should use a very thin plastic tool, such as a credit card but even more thin and flexible.

    nicosoranno4gxo -

    I purchased a blue plastic opening tool(AKA: Spudger) and was able to remove the midframe from the display assembly as per the Step 7. I had to hold the cell phone firmly in my left hand while I gently forced the spudger between the chrome bezel and the midframe with my right hand and heard plastics clips separate and saw the midframe start to separate from the display assembly. Don’t be afraid to get that spudger in and just gently go down the side of the phone and you will hear the plastics clips detach and the midframe to separate more and more until you are able to separate them 100%. I started at the volume button side of the phone in Step 7 and ended at the power button side in Step 9.

    Terry Crawford, Jr. -

    This blue Case Opening tool has a less rigid edge that is kinder to trim than the hard black Spudger shown in later steps. I was glad to have the right tool on hand at this step. Use it as a wedge and slide it along the gap.

    Tom Huber -

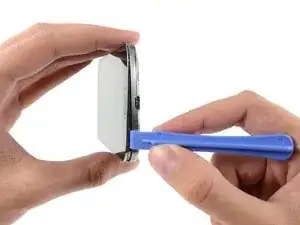

  8. mlLqgVTFjlULZmXr
    mlLqgVTFjlULZmXr
    xbBRETlSI6ZKDpZJ

    • Heble weiter um die Ecke des Mobiltelefons herum.

    • Fahre mit deinem Opening Tool an der Spalte zwischen dem Mittelrahmen und dem Display entlang des unteren Teil des Gerätes und löse dabei die dortigen Kunststoff-Clips.

    I purchased a blue plastic opening tool(AKA: Spudger) and was able to remove the midframe from the display assembly as per the Step 7. I had to hold the cell phone firmly in my left hand while I gently forced the spudger between the chrome bezel and the midframe with my right hand and heard plastics clips separate and saw the midframe start to separate from the display assembly. Don’t be afraid to get that spudger in and just gently go down the side of the phone and you will hear the plastics clips detach and the midframe to separate more and more until you are able to separate them 100%. I started at the volume button side of the phone in Step 7 and ended at the power button side in Step 9.

    Terry Crawford, Jr. -

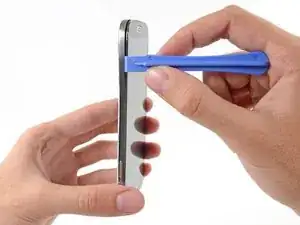

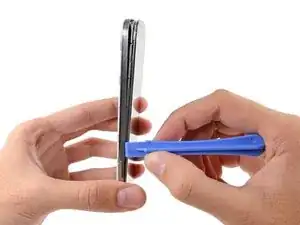

  9. NjGCILVpYvQZSYBN
    NjGCILVpYvQZSYBN
    KTbBqoxDr3GYJkMc

    • Heble weiter um die Ecke herum in Richtung der Power Button Seite.

    • Fahre mit dem Opening Tool an der Spalte entlang.

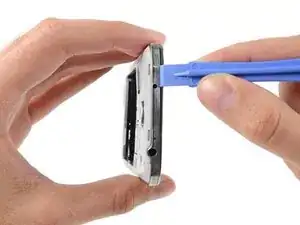

  10. YxMui1KI6EfoKuUH
    YxMui1KI6EfoKuUH
    KjQOOeflFdfxLybe

    • Fahre mit dem Plastic Opening Tool entlang der Oberseite des Mobiltelefons und löse die letzten Clips. So lässt sich der Mittelrahmen von der Display Einheit lösen.

    • Nun kannst du mit deinem Plastic Opening Tool noch einmal um das Gerät herumfahren, um sicherzugehen, dass alle Kunststoff-Clips gelöst sind.

    On my phone, there was another clip holding the white midframe to the battery compartment, in the middle of the top edge of the battery compartment, near the battery contacts. If you don't release that before removing the midframe, it is easy to break.

    josephoswald -

    I purchased a blue plastic opening tool(AKA: Spudger) and was able to remove the midframe from the display assembly as per the Step 7. I had to hold the cell phone firmly in my left hand while I gently forced the spudger between the chrome bezel and the midframe with my right hand and heard plastics clips separate and saw the midframe start to separate from the display assembly. Don’t be afraid to get that spudger in and just gently go down the side of the phone and you will hear the plastics clips detach and the midframe to separate more and more until you are able to separate them 100%. I started at the volume button side of the phone in Step 7 and ended at the power button side in Step 9. In Step 10 just make sure all the plastic clips are separated from the midframe and the display assembly so you can pull them apart 100% without breaking them.

    Terry Crawford, Jr. -

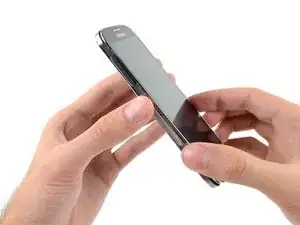

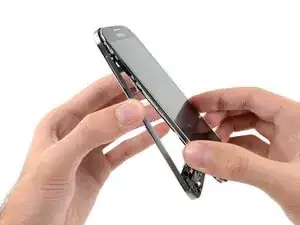

  11. MDb1XKUptBuYX6Bu
    MDb1XKUptBuYX6Bu
    R6HtRH5JnJXupZRr
    rDyAIYBh3bl6IN2Z

    • Entferne den Mittelrahmen von der Display Einheit.

    here i leave them a video i made doing the work

    https://www.youtube.com/watch?v=85pOvI6O...

    enjoy

    Gabriel Barrandeguy -

    My Sprint S4 was slightly different then the one pictured above but I just completed this repair in under 10 minutes.. It would have been slightly quicker but fooling around with those little screws can be irritating if you have big hands.

    Michael Willis -

    Just did this on my S4. Instructions were extremely helpful, but I had to remove a screw (step 10.5?) to remove the upper display assembly bracket. Other than that, flawless! Thanks!

    JackieME -

    The 3rd image of the 11th step shows that when the midframe is removed, some parts come along with it (at the bottom part of it). What are these parts? should they be removed too and placed in the new midframe? Are they easy to remove?

    Chris -

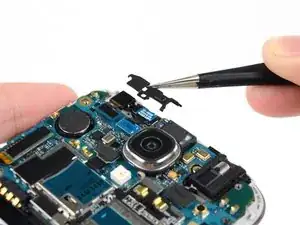

  12. 3VGKp6njoQCrHJlx

    • Entferne die obere Halterung der Displayeinheit.

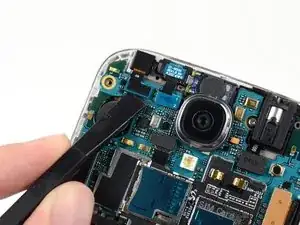

  13. 1xh3JTI1xbAWTDFE

    • Benutze das flache Ende eines SPudgers, um den Stecker des Frontkamerakabels zu trennen.

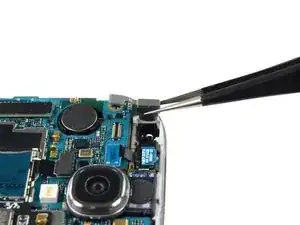

  14. C2t6CuM1Eqb3Uwb6

    • Entferne die Frontkamera.

Abschluss

Um dein Gerät wieder zusammenzubauen, folge der Anleitung in umgekehrter Reihenfolge.
