Samsung Galaxy S4 Mini Charging Assembly

Geschrieben von: Francis Barnett
  • Kommentare: 9
Samsung Galaxy S4 Mini Charging Assembly

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

15 - 20 Minuten

Einleitung

Use this guide to replace the charging assembly in the event of an inability to charge.

  1. FrPUpDnOnCEllBAM

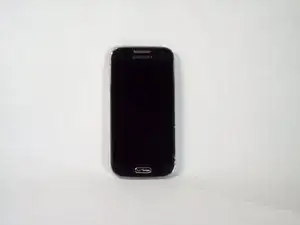

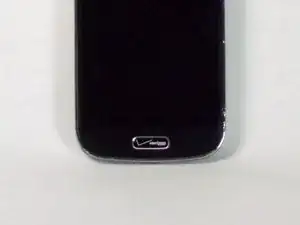

    • Press and hold the END key to power the phone down.

  2. dpWKh4PkdPKCTGTg

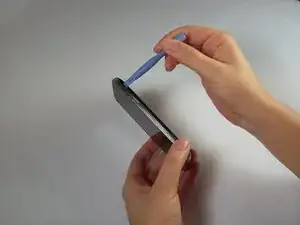

    • Remove the back cover of the cell phone using a plastic opening tool.

    The LEGO Brick Separator (https://www.lego.com/en-us/service/brick...) also works perfectly if you don’t have the iFixit Opening Tool handy.

    Håvard Haugen -

  3. D3REkBkgRvtMbfhf

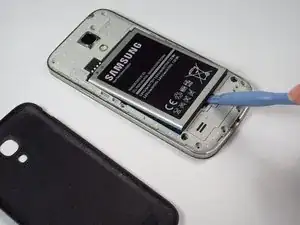

    • Pry the battery out using a plastic opening tool.

    Vai s4 mini motherbotd paua jay

    atik.pgm -

  4. TgqeTYhAGyomhp3u
    TgqeTYhAGyomhp3u
    tBBAxupNUgBWgmPr

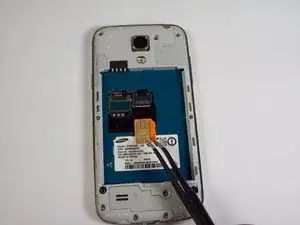

    • Using tweezers, remove the SIM card by sliding it towards the bottom of the device.

  5. n5mOqZoNe6olZ6r3

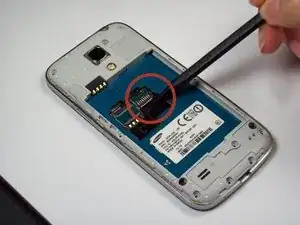

    • Using a nylon spudger, push through the hole at the top of the memory card holder to slide it out.

    Does “slide it out” refer to memory card holder or the memory card itself?

    Mikko Rantalainen -

    Photo useless. Cannot see where “hole” is.

    Brian Gilkes -

  6. 52pxlDjwRCee5fUd

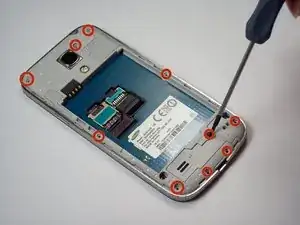

    • Remove the 10 4.0 mm Phillips screws on the back of the phone using the #00 Phillips screwdriver.

    • Not needed, but Tweezers can be helpful in removing the screws from their holes, as their size makes removal a tad difficult.

  7. bX1HVERnf34IMKoy

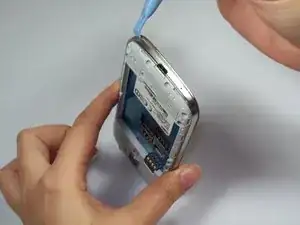

    • Starting at the USB port, slide a plastic tool around the perimeter of the phone between the rear housing and frame. As you work your way around the edge you will feel the clips release.

  8. WnKkekWbFfE23jQR

    • Carefully separate the rear housing and the mid-frame to reveal the inside of the phone.

  9. FyD6A2GTuZDDKVLB

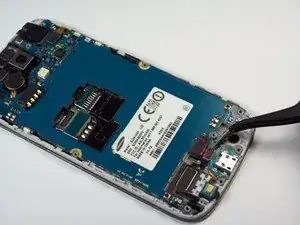

    • Remove the 2 flex cables shown that attach to the USB board, Tweezers can be especially helpful here.

    Attention! Some Models have also an Cable on the right side for the 3G-Module. Also this have to be removed. In this case the Module is also bigger and fixed with 2 tapes.

    Maxi -

  10. PlNCjQIuTUwyhGBr

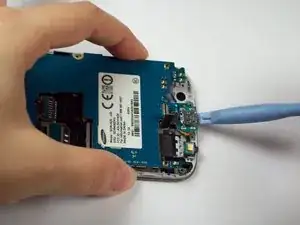

    • Gently pry underneath the charging port using the plastic opening tool to separate it from the double sided tape below.

  11. EwOuBMO1l6bYM4Ea

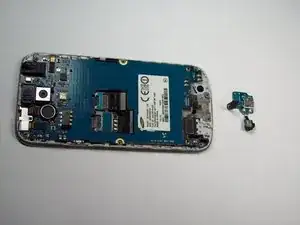

    • Once its released, gently lift the main board and remove the USB board containing the charging port.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Francis Barnett

Mitglied seit: 23/09/14

1056 Reputation

4 Kommentare

if i open the device like this, can i solder cables on the usb port to connect a wireless charging reciever?

Getriebesand -

I was looking for the same solution, and I think it is possible, a closer look at the USB port from various spare parts suppliers, I was in doubt if mine would look the same as the one displayed here, after disassembling my phone, it turned out to be this one: http://bit.ly/1GR4SzP

And it is possible, when messuring connection points, it turns out CN2 on the bord is the +, and - you can fit onto the side of the USB connector itself.

Kenneth H. Nielsen -

I have created a Guide describing the addition of wireless charging, it is in no way affecting the phones stability.

Kenneth H. Nielsen -

Works great with the S4 mini I9195 LTE version, but mind the different spare part (as linked above: http://bit.ly/1GR4SzP).

megaoetzwuchst -
