Samsung Galaxy S5 Rückkamera Austausch

Geschrieben von: Sam Goldheart
  • Kommentare: 61
Samsung Galaxy S5 Rückkamera Austausch

Schwierigkeitsgrad

Mittel

Schritte

30

Zeitaufwand

40 Minuten - 1 Stunde

Einleitung

Diese Anleitung zeigt dir wie du die Rückkamera eines Samsung Galaxy S5 austauscht.

  1. 3mEZDqNpHP1NAoQS
    3mEZDqNpHP1NAoQS
    xTO64DCaMsQFpJBm
    HC3JrUgL6QVjhELX

    • Gehe mit dem Fingernagel oder einem Plastic Opening Tool in die Einkerbung links neben der Rückkamera.

    • Entferne das flexible Rückgehäuse vorsichtig durch Hebeln und Verdrehen von der Rückseite des Gerätes.

  2. fbRApTyubdGpQqcI
    fbRApTyubdGpQqcI
    YQWaDPslkNAgJIpd
    dk6dXbpPRGWWgFDv

    • Gehe mit einem Fingernagel oder einem Plastic Opening Tool in die Einbuchtung in der rechten unteren Ecke des Akkus und hebe ihn nach oben.

    • Entferne den Akku von deinem Gerät.

    The battery will need to be charged after it is placed in the phone. No one told me that and I bought a battery and thought it was bad. Keep the phone off and insert the charger. You will need to charge it for several hours before you can use the phone.

    Diane Schumacher -

  3. AAawVymjqARQpSCD
    AAawVymjqARQpSCD
    BHdA4xn3H5rChNAu

    • Hole die microSD Karte von Hand aus dem Slot.

    • Entferne die microSD Karte von deinem Mobiltelefon.

    I found removing the SIM/SD card with my fingertip a little difficult – not enough friction. So I used a 'rubber' (in US English it's called a pencil eraser or just simply, an eraser.

    Simple, cheap (zero) and effective! :)

    Cheers.

    John

    johnsg0053 -

  4. QxalaCOh3lW5ekjC

    • Wiederhole die vorherige Prozedur, um die SIM Karte zu entfernen.

    Actually this isn’t as easy as it appears in the photo and instructions, since the SIM card does not have a notch that you can use to pull it out. In my experience I’ve found that the best way to remove the SIM card is by pressing down somewhat hard on the SIM card, and then push-pulling it outward.

    OmniWeb Technical Education -

  5. UfxjrONAiEwe3Pqm
    UfxjrONAiEwe3Pqm
    xY6eY5eHtlBGb5TK
    WRYQRcZPGAvYby1N

    • Verwende ein Plastic Opening Tool, um das Mittelrahmen-Anschlussplatte aus Kunststoff nach oben zu hebeln.

    • Entferne die Anschlussplatte mit einer Pinzette.

    • Dort sollte genügend Kleber vorhanden sein, um die Platte beim Wiederzusammenbau wieder festzukleben. Andernfalls verwende etwas doppelseitiges Klebeband.

    In my experience I have always removed this Home button protector panel with ONLY a plastic opening tool, and I have never found adhesive beneath it.

    OmniWeb Technical Education -

  6. xkYwZGCOIJZZMnl4
    xkYwZGCOIJZZMnl4
    4RQMpvTjPEcZoDJ6

    • Heble mit der Spudgerspitze den Home Button Kabelstecker gerade aus seiner Fassung.

  7. IwfbXeWE6jKGCZ2w
    IwfbXeWE6jKGCZ2w
    fjtqM3CfiSvI3Df1

    • Bei den folgenden Schritten wirst du einen iOpener verwenden, um den Kleber, der die Display Einheit am Rest des Gerätes befestigt, zu erwärmen. Dadurch kann das Display sicherer und einfacherer entfernt werden. Wie du den iOpener richtig verwendest, erfährst in der iOpener Anleitung. Beachte die aufgeführten Warnhinweise.

    • Platziere den erhitzten iOpener für mindestens 90 Sekunden auf der linken Seite des Mobiltelefons.

    • Wärme den iOpener wieder auf und platziere ihn auf der rechten Hälfte des Gerätes.

    good location for a timer, I am taking my phone apart

    andrew beals -

    ¿se puede hacer con la pistola de calor?

    Diego Alomoto -

    Si, puedes utilizar la pistola de calor también, pero ten cuidado ;-)

    Sandra Hiller -

    Otra opción es usar una “placa calefactora” que, según yo, es la opción mas “profesional” ya que con ella se puede limitar la temperatura, para que no se malogre la pantalla táctil (la “digitizador” detŕas del vídrio).

    OmniWeb Technical Education -

    Another option is to use a “hot plate” which, according to me, is the more “professional” option since with it you can limit the temperature, so that the touchscreen doesn’t get ruined (the “digitizer” behind the glass).

    OmniWeb Technical Education -

    A hairdryer on low not being used statically is also an easy option. Or if your a caveman or low tech, and all you have is a single baby sock and metal bb’s or little rocks, as long as they’re not silica rocks, put them in the baby sock, at the edge of your cave campfire to warm them and thats all you need. -retired aviation engineer

    crabbysam -

  8. BFv2rbQMoNfFXwOr
    BFv2rbQMoNfFXwOr
    TKlk4XrBGJhZ4VcK

    • In den folgenden Schritten wirst du ein Opening Pick verwenden, um den Kleber, mit dem das Front Panel Glas festgemacht ist, zu lösen. Wenn du auf Widerstand stößt, wende nochmals etwas Hitze, bevor du mit dem Pick weiter in der Spalte entlangfährst.

    • Führe die Kante eines Opening Picks unterhalb der rechten unteren Ecke des Frontglases ein.

    I hope this helps others:

    my screen was STRONGLY glued to the midframe, it was impossible to remove it without breaking it, be very careful with the copper adhesive in the midframe!!!

    I can't even understand how this guide doesn't mention it properly!

    Pedro -

    Yeah, the real trick with these types of screens is to measure (or just “have a feel for”) an adequate temperature with the heat pad (e.g. iOpener), or heat gun, or hot plate. First you have to heat up the screen just enough so that you can “break into” one side without breaking the bezel or the glass, and then verrrry carefully and verrrrry gradually insert plastic opening picks (or even playing cards) as you make progress around the exterior border of the phone. Whenever I do this, I always insert 5-6 objects (again, plastic picks or playing cards) before I fully remove the digitizer-glass assembly, which typically ends up as follows as I move around the exterior border: one pick at each of the four corners and one pick on each of the two sides. WARNING: DO NOT INSERT ANY OBJECT BENEATH THE GLASS MORE THAN A FEW MILLIMETRES FROM THE EXTERIOR BORDER.

    OmniWeb Technical Education -

    Thanks for the info guys! :-)

    Tony -

    Wow seriously 100% ur going to break the LCD if this is the first time opening the phone this is why android is built disposable it now costs 60$ to fix a stupid 10$ part this fix is definitely not worth it

    android=disposable

    apple=a better way of life

    I will never attempt to fix another android again

    taylor britton -

  9. dahXEbODMSOG4Io1
    dahXEbODMSOG4Io1
    MkE5VQe2F4eHWuvx
    IbKdWQDEMu4ejYVx

    • Fahre mit dem Opening Pick entlang der rechten Seite des Displays.

    This is not as easy as they make it seem in this guide. The real trick with these types of touchscreens is to properly measure (or just “have a feel for”) an adequate temperature with the heat pad (e.g. iOpener), or heat gun, or hot plate, that you use to heat the adhesive beneath the glass exterior of the digitizer-glass assembly. First you have to heat up the screen just enough so that you can “break into” one side without breaking the bezel or the glass, and then verrrry carefully and verrrrry gradually insert plastic opening picks (or even playing cards) as you make progress around the exterior border of the phone. Whenever I do this, I always insert 5-6 objects (again, plastic picks or playing cards) before I fully remove the digitizer-glass assembly, which typically ends up as follows as I move around the exterior border: one pick at each of the four corners and one pick on each of the two sides. WARNING: DO NOT INSERT ANY OBJECT BENEATH THE GLASS MORE THAN A FEW MILLIMETRES FROM THE EXTERIOR BORDER.

    OmniWeb Technical Education -

  10. YkOl2cATJhHDltJl
    YkOl2cATJhHDltJl
    h65ueL2OPRF55yQY
    LDQydYLpQV3Zxr6V

    • Fahre mit dem Pick um die Ecke bis zum Lautsprechergitter oben am Gerät.

    Be sure not to nick and tear the capacitive touch chip interface that meets the LCD screen here! I caught it and didn't even feel the resistance. :-(

    Play It Loud Computer Services -

  11. PmNGSMoFdWDsQpEl
    PmNGSMoFdWDsQpEl
    YyZApPZOopQj2Wem
    VIZtsGlSJO3lAcGC

    • Der Kleber oben am Mobiltelefon ist nur ein schmaler Streifen über dem Ohrhörer-Lautsprecher. Fahre mit dem Pick oberhalb der Lautsprecher entlang, um eine Beschädigung der internen Komponenten zu vermeiden.

    • Fahre das Opening Pick entlang der Oberseite des Mobiltelefons und sei dabei vorsichtig, das Pick nicht zu tief einzuführen.

    I have been extra careful, and it did not prevent me to sever the flat cable in the upper left corner. The cable is very close and you should take extreme caution.

    Neocray -

    I accidentally sliced the flex cable and now my Digitizer refuses to work….LCD is still functional.

    Take heed lol. I found out the hard

    Blank -

  12. 1Psg3SUIsPFkAhEB
    1Psg3SUIsPFkAhEB
    XsBxQpHFWGFDmUGy
    3FUm43F2i2ZFNHHf

    • Fahre mit den Pick um die obere linke Ecke herum.

    • Wenn der Kleber abkühlt und du deshalb auf Widerstand stößt, wende erneut einen erhitzten iOpener auf der linken Seite des Gerätes an.

  13. KYZE4kTWWqT3jVO4
    KYZE4kTWWqT3jVO4
    cHZWvHbekCcNYdFG
    ekw5Y1Yj4oqAYT4J

    • Fahre das Opening Pick entlang der linken Hälfte des Mobiltelefons und stoppe an der unteren linken Ecke.

  14. DefZsUGNOQvu4VxB
    DefZsUGNOQvu4VxB
    YhWMpXhsOSYYlMiS

    • Fahre mit dem Pick entlang bis zur linken unteren Ecke des Mobiltelefons und gehe sicher, dass es richtig platziert ist.

    • Im folgenden Schritt wirst du den iOpener über der Home Button Seite des Mobiltelefons platzieren. Pass auf, dass du mit dem Opening Pick nicht abrutscht.

  15. PfLFpWYOEf5diLWN

    • Platziere den wiedererhitzten iOpener über dem unteren Teil der Display Einheit.

    • Es befinden sich empfindliche Komponente in diesem Teil des Mobiltelefons. Deshalb ist es besonders wichtig, dass der Kleber erwärmt und leicht zu lösen ist, um das Gerät zu schützen.

  16. soHBL5LFwXFQS2Bh
    soHBL5LFwXFQS2Bh
    QjGnHmA4ydBCUagU
    VS1sMZ1kdNpZngv6

    • Das untere Ende des Gerätes enthält die Flachbandkabel von Soft Button und Home Button. Wenn du das Opening Pick zu tief einführst, riskierst du diese Kabel durchzuschneiden.

    • Fahre mit dem äußersten Ende von einem Opening Pick entlang der unteren Kante des Displays, um den letzten verbleibenden Kleber zu lösen.

    How do I avoid damage? I tried this and now have to get a new screen, LED, and digitizer since the grey part under the glass snapped and cracked in many areas. I had to discard it and order a replacement to fix the phone.

    cbressijr -

  17. 2hgrZGU1RGKE1gSq
    2hgrZGU1RGKE1gSq
    uUNLHxbcL4EeE3lh

    • Drehe das Opening Pick etwas, damit sich das Glas vom Mobiltelefon löst.

    • Falls das Front Panel sich nicht leicht lösen lässt, sitzt der Kleber noch zu fest und muss weiter durchgetrennt werden.

    Be aware that there is adhesive on the inner parts of the screen. Plan on replacing this screen and digitizer as well.

    AB Computer Services -

  18. Bj5QCRDSiXibxcEN
    Bj5QCRDSiXibxcEN
    SNiiKJiYfYPn5FgP

    • Wenn sich das Front Panel nicht leicht ablösen lässt, muss möglicherweise der Kleber auf dem Soft Button Kabel gelöst werden.

    • Diese Kabel sind dünn und können leicht beschädigt werden. Gehe deshalb sicher, dass du sie nur von der Display Einheit entfernst, aber nicht zerpflückst.

    • Führe ein Opening Pick unter die Soft Button Icons auf dem Display ein und heble die Button Kabel auf der Innenseite des Front Panels ab.

    Accidentally cut one of the side buttons. It wouldn't come out, the screen was badly cracked.

    Nickoakz -

    My digitizer was glued to the chasis, the glass came up separately and the digitizer broke when I tried to pry it up.

    ken -

    That’s actually probably because you might not have heated the sides of the screen (where the adhesive is located) enough before prying up on the exterior border of the glass part. It’s very difficult to know the tolerance limits of such devices if you’ve never seen them apart before, and as such one can easily get confused between where the glass ends and the digitizer begins. On my first smartphone repair I broke a digitizer, so I know how it feels.

    OmniWeb Technical Education -

  19. N1GIqDhGGJ5dqynn
    N1GIqDhGGJ5dqynn
    idHQEUC2FOiIMmW2

    • Hebe die Home Button Seite der Display Einheit etwas an, aber entferne sie nicht.

    • Entferne das Front Panel nicht vollständig. Es ist immer noch durch einen Stecker verbunden.

    • Falls du ein Home Button Flexkabel wiederverwendest, sei vorsichtig, dass du das Kabel nicht vom Home Button trennst. Durch den Kleber kann das Kabel vom Home Button abreißen. Der Home Button würde in diesem Fall noch funktionieren, der Fingerabdruckscanner jedoch nicht.

    The display assembly I purchased from ifixit.com included a new home button with a new flex cable. If you have the same, I'd recommend removing the home button in this step.

    pdub01 -

    Same here. My home-button flex cable extended under the main board rear cover plate, and would have required removing screws to extract. So I left the original home button installed, and removed the one that came with the new assembly.

    The ‘reverse order’ step are misleading. It is not trivial to reconnect the main screen flex cable to the main assembly — lots of trial and error to get it snugly plugged into the receiving connector. That part is glossed over. (Dissassembly is trivial. Reassembly is hard.)

    After putting the screen and connectors on, I learned that there’s some plastic edging on the BACK. I had to remove the screen since it effectively wraps the home-button key. The new screen cracked. Great.

    Peter Nicoll -

    Sansumg S5 is the stupiest design (for repair) ever.

    I have fixed s2,s3,s4, note, note 2 and note 3

    All of them, you can get into the logic board from the back without touching the screen assembly.

    With the S5, just a simple problem could cost you buying a new lcd assembly.

    You must remove the lcd in order to remove the screws for the logic board cover.

    I purchased a cracked lcd S5, so I can replace it and sell it. My mistake was I did not did a research on the tear down (thinking it should the same as previous S model.

    To make story short, lucky for me, I did a dry test of the entire phone, before glueing on the new lcd assembly.

    Because the front camera lens was damaged, cost $5.

    If I glued the lcd, it would be 50/50 chance that I would crack the new screen.

    So any repair that you need to do on the S5, you will have to consider the risk of breaking the LCD.

    I hope Samsung change the design on the S6. Which I doubt it. Because the higher cost of repair means people won't fix them = more new sells

    idevice Recycle -

    How can I find out if I messed my phone up . the person who glued the screen on didn't glue it on right , so I tried to take off the screen and I got it off but now that I try to put it back on the screen is black .

    cholitaesh21 -

    I know this reply is a bit late, over 2 years late, but I just wanted to add to idevice Recycle that the way "they" designed this phone is exactly as you described, to make it wayyyy more difficult to fix even the most simplest thing on this phone. Inverting the motherboard, designed exactly the opposite way of the S4 (as you described), from their standpoint of view, as you'd have to admit, was a brilliant idea on "they're" part.

    I've torn apart and fixed many cell/smart phones in my days thus far, but mostly iphones by far. A friend passed

    me one of these phones this past week. I've never messed with one before so you already know, even though I

    have much knowledge about them, this site was the first I visited about this phone. Needless to say, go figure.

    They did a really great job though making this phone one of the most difficult phones to do any type of repair

    on. Adhesive sucks. But eh, all is well with a bit of time and patience. Had to replace rear camera and middle

    bezel frame. Time to off it....

    you_mad.lil_fella -

    This guide may have been written for a different revision but the SM-G900F that I just repaired had glue sticking the entire of the rear of the screen to the chassis making it very difficult to remove. Had to use a spudger and push it down the inside of the phone separating the copper film from the chassis to free it up. Would be easy to damage the home button cable but I was ok.

    Adam -

    I had the same thing happen just now. I was working on a G900A. A real PITA!

    mcr4u2 -

    Is there a need to put adhesive after removing the screen?? If so, do you have an adhesive recommended...

    garrykufa2000 -

    Should be. i recommend using 3m strip double sided adhesive

    leiki42 -

    I had the same issue as idevice recycle. The model S5 that I was working on had a huge amount of glue on the back of the lcd which I wasn't aware of - this caused me to crack the glass which then literally broke the lcd in half (costing me £120 for a new screen!!!)

    I've repaired all manner of Samsung products over the years and I've never had any issues with any model apart from this one. My advice to anyone doing this repair is once you have managed to unstick the screen from the frame, before attempting to remove it, apply a bit of heat (but not too much, you don't want to damage anything) to the back of the phone where the battery normally sits. This is where all the glue on the back of the lcd is located which sticks the lcd to the frame of the phone - I wish I knew of this before trying to remove the screen!

    Clems -

    The guide needs to mention that the LCD is firmly glued.. Mine was bust anyway, but Step 19 is not fit for purpose.

    Dave -

    So this really blows. I needed to swap the logic board from a phone with a cracked screen to one with a good screen. Yeah that’s not happening. I now have two cracked screens… Thanks Samsung! The difficulty on this should be way higher. As others have said, the screen is glued on the underside over a large portion where the copper foil is. It’s not coming up easily or in one piece.

    Jeremy Buseman -

    If you want to make the reassembly easier, be careful to not separate the Home button assembly, from the glass. Instead, just carefully pry away the soft button adhesive connectors.

    OmniWeb Technical Education -

  20. qhyARYwgfY5QPOTE
    qhyARYwgfY5QPOTE
    MS1XRNkYHaNbaO3C
    HtpMkJeNBEvjPVpM

    • Hebe den Kabelstecker der Front Panel Einheit mit der Spudgerspitze aus seinem Anschluss auf dem Logic Board.

    • Entferne die Front Panel Einheit vom Mobiltelefon.

    • Wenn das Ersatzdisplay ohne einen Home Button geliefert wurde, dann folge unserer Anleitung für die Home Button Einheit, um deinen alten Home Button auf das neue Display zu übertragen, oder um einen neuen Home Button einzubauen.

    Absolutely wonderful! Worked like a charm. This is the easiest replacement I have seen so far on an Android. :)

    Paul Frutiger -

    This was all a breeze until I removed the screen and the LCD and digitizer crumpled on me now I have to replace the whole thing not just the charge port which was the initial issue… Great guide though and thanks it helped. Minus the panic attacked when all the parts started to crack and break as I removed the glass and now digitizer or LCD stayed safe for replacement.

    cbressijr -

    Be VERY careful of the flex ribbon on the LCD …it'll break with the slightest twitch…one of mine ripped totally in half

    Blank -

    please i need number lcd samsunggalaxy s 5 it is g 900 a or what?

    fady awad -

    The difficulty of changing the S5's display is enormous. Not only is it glued around the edges, it's also glued strongly to the midframe. If you ignore this, damage is inevitable. The digitizer flex cable is also very easy to kill. Glue sucks. When assembling the display, the edge bonding is not enough; you need special double-sided adhesive tape that is stuck to the midframe so that the display does not fall out again so quickly. Before doing this, you have to thoroughly remove the old adhesive on the edge. I have successfully performed this procedure once but would never do it again.

    Karl Napf -

  21. DLQUBMAVlE5QCmJT

    • Drehe zehn 3,4 mm Kreuzschlitzschrauben #000 auf der Displayseite des Mittelrahmens heraus.

    It’s probably a good idea to remove (and subsequently screw back in) these screws in a sort of “star fashion” (e.g. alternating from top-to-bottom, left-to-right) in order to equally distribute the tension.

    OmniWeb Technical Education -

  22. YfT26JYqScUXJyHG

    • Drehe das Handy um und entferne folgende Schrauben aus der Akkuseite des Mittelrahmens:

    • Zwei 4,4 mm Kreuzschlitzschrauben #000 in der Nähe der USB-Buchse auf der Akkuseite des Handys.

    • Eine 4,4 mm Kreuzschlitzschraube #000.

  23. P2EMIXYQkM5nKMLZ
    P2EMIXYQkM5nKMLZ
    EsRbVOklL1yX5Wvb
    aHPiOoP6vjkWxVFE

    • Fahre vorsichtig mit einem Plastiköffner an der inneren linken Seite des inneren Rahmens entlang, um die drei weißen Plastikklammern zu lösen.

    There are also two more white clips just along the edges of the battery connection terminals (to the right of the 3 shown in the pictures). Using a spudger to pry these loose too will make separating them later much easier.

    Peter Morris -

    Yes, I second that! You definitely need to loosen those two other clips or you may have problems separating this interior frame from the midframe.

    OmniWeb Technical Education -

  24. oau5VuqXgsb6UDIT
    oau5VuqXgsb6UDIT
    BFKXEZTSZnUZfZ3X

    • Der Mittelrahmen besteht aus zwei Hälften, die die Hauptplatine umfassen.

    • Ziehe vorsichtig die langen Seiten der silbrigen Blenden aus dem Handy um die beiden Hälften des Mittelrahmens zu trennen.

    • Es könnte hilfreich sein aus dem Akkufach heraus zu drücken. Dabei musst du aber aufpassen, dass die innere Hälfte des Mittelrahmens nicht gebogen wird, da die Hauptplatine daran montiert ist.

    maybe my phone was stuck a little, but i had to work it pretty hard to get this step. Just take your time.

    andrew beals -

    Personally I wouldn’t recommend separating the midframe-motherboard assembly like this. What I recommend is the following: 1. Insert the flat end of a spudger between the main speaker grille and the main camera assembly (technically, between the gray and black plastic pieces. 2. Pry up on the black plastic piece (using the gray plastic piece as a fulcrum) in such a way that allows you to lift that end of the interior midframe-motherboard assembly from the inner midframe (see step 27). THEN 3. Once you have created enough space, insert a triangular pick tool, and THEN use a plastic opening tool to pry any remaining corners out of the silver bezel (see step 26). WARNING: BE VERRRRY CAREFUL WHERE YOU INSERT TOOLS or apply pressure because there are many sensitive components along that top part (where the cameras and infrared sensors are located).

    OmniWeb Technical Education -

  25. tBRwTBSTmFpdVyXy
    tBRwTBSTmFpdVyXy
    LkHrsLEEMEtKwVKw

    • Fahre auf der rechten Seite der silbernen Blende fort indem du vom inneren Teil des Mittelrahmens herausziehst, um die beiden Hälften zu trennen.

    Personally I wouldn’t recommend separating the midframe-motherboard assembly like this. What I recommend is the following: 1. Insert the flat end of a spudger between the main speaker grille and the main camera assembly (technically, between the gray and black plastic pieces. 2. Pry up on the black plastic piece (using the gray plastic piece as a fulcrum) in such a way that allows you to lift that end of the interior midframe-motherboard assembly from the inner midframe (see step 27). THEN 3. Once you have created enough space, insert a triangular pick tool, and THEN use a plastic opening tool to pry any remaining corners out of the silver bezel (see step 26). WARNING: BE VERRRRY CAREFUL WHERE YOU INSERT TOOLS or apply pressure because there are many sensitive components along that top part (where the cameras and infrared sensors are located).

    OmniWeb Technical Education -

  26. xEeTrYOZh1MgDZd2
    xEeTrYOZh1MgDZd2
    3avGRewLcqsqBw1U

    • Mit einem Plastiköffner kannst du letzte noch verbliebene Ecken ablösen.

  27. 15SyYwLCP6BqmnEf
    15SyYwLCP6BqmnEf
    JOwAdcljaiJ1rZXT

    • Jetzt kannst du ganz sorgfältig die Einheit aus Mittelrahmen/Hauptplatine vom weißen inneren Rahmenteil trennen.

    Did two of these phones, and a small white hard plastic cap fell out. Can anyone tell me where this goes on reassembly? See pic: http://library-static.snapfish.com/libra...

    Brian Guild -

    The white plastic cap which fell out is actually the piece that covers a small hole marked R2 near the original philips head screw you remove when first disconnecting the small display connector. The good news is that this cap can be put back on after fully reassembling the phone.

    Brian Guild -

  28. v6P3IL65vPaNOV2O

    • Entferne die einzelne 3,0 mm Kreuzschlitzschraube #00 mit der die Hauptplatine am Mittelrahmen befestigt ist

  29. rlNULZdO31NOikg2
    rlNULZdO31NOikg2
    XpSpdmjnJuBRfiAL
    OZDGXq1SbVamTNy6

    • Ziehe die Hauptplatine etwas vom Mittelrahmen weg ohne sie ganz zu entfernen, um an die Anschlüsse an der Rückseite heran zu kommen.

    • Versuche keinesfalls sie ganz zu entfernen, da die Hauptplatine immer noch über die Mikro-USB Verbindung zur Seitenplatine mit dem inneren Rahmen zusammen hängt.

    • Lege die Hauptplatine auf eine saubere flache Fläche und halte den inneren Mittelrahmen mit einer Hand fest, so dass du mit der anderen Hand an der Hauptplatine arbeiten kannst.

  30. ax2MfJfFmgOUhRFW
    ax2MfJfFmgOUhRFW
    vHqKh4ogPUhqFv4n
    tmYNMDKd2ohGGnEC

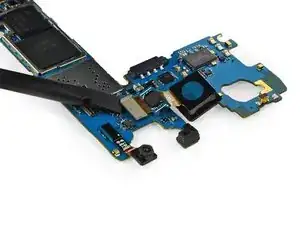

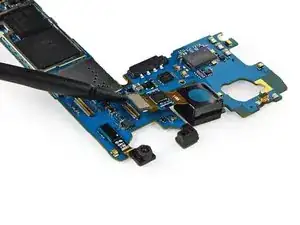

    • Mit dem flachen Ende eines Spudgers kannst du den Verbinder der Kamera senkrecht aus seinem Anschluss auf der Hauptplatine ziehen.

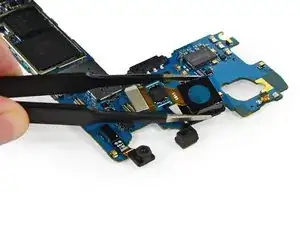

    • Entferne die Rückkamera mit einer Pinzette von der Hauptplatine.

    Does any one know what the connection type is that connects the camera to the mother board? I'm not sure what to search to find it.

    Mason Henke -

Abschluss

Um dein Handy wieder zusammenzusetzen, folge den Schritten in umgekehrter Reihenfolge.

Tinte & Feder

Sam Goldheart

Mitglied seit: 19/10/12

457712 Reputation

11 Kommentare

has any one replaced the camera and now you get the warning camera filled and the led light fails each time you click the app?

Aaron -

did you ever figure out how to fix that, i have the same problem

Stuart Orellana -

Outstanding guide!! My rear facing camera got smashed in a bike accident (key in the same pocket as phone - dumb...) and the impact didn't totally disable it, but it lost the ability to properly focus at any but really close distances. This guide made the replacement process completely straightforward and if not "easy" at least a whole lot less daunting. Especially helpful were all the warnings and advice about dealing with the little itty bitty cables at the touch and home buttons at the bottom of the screen.

One item that I might add to this guide - I found it helpful to use multiple opening picks to keep the already cut adhesive around the edges of the display from re-sticking itself as I continued to slowly heat and cut and heat and cut. It's very tenacious adhesive and it really likes to cling back to itself, cool and re-solidify before you get done cutting it all.

Most importantly, after doing this repair, my phone is back to 100% with a perfectly working camera and all functions normal. YAY!!!

Edward Williams -

... and, here's the actual repair - https://youtu.be/Q2oj6zpJmTQ compressed to just under two minutes

Edward Williams -

I got a phone from someone and the camera was broken, so I replaced it. After that it still doesn't worked, so I wiped the cache, made a factory reset, etc, still nothing. Does this happened to someone else here? What else can affect the proper function of the camera?

Csongor Bakos -

very nice help, how can I help translating to portuguese?

joao4simoes -

Glad to hear you want to contribute to the iFixit guides! We're working on public translations and will let you know when Portuguese translations are possible. Cheers!

Jasper Fleischhauer -

How do you affix the screen back on? Do you need to place new adhesive or just reuse the old one?

pyrexid -

My screen was STRONGLY glued to the midframe, it was impossible to remove it without breaking it, be very careful with the copper adhesive in the midframe!!! I can't even understand how this guide doesn't mention it properly!

Pedro -

Great guide. I replaced the damaged outer plastic chrome bezel, front and rear camera following the instructions carefully and all went perfectly well. Phone is like new now.

Gary Avery -

You really need to let people know about the amount of adhesive on the back of these screens. They are NOT easy to take off (it’s almost as if they have superglue on the back of them) and they can crack with the slightest of pressure. Clearly going from this guide, the adhesive from the back of the screen had already been removed, making this look like an easy process when it actually isn’t :(

Clems -
