Samsung Galaxy S8 Active Battery Replacement

Geschrieben von: Erik Mauk
  • Kommentare: 10
Samsung Galaxy S8 Active Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

35 - 40 Minuten

Einleitung

Use this guide to replace or remove the battery in your Samsung Galaxy S8 Active.

This guide involves removing the back cover of the device, so you will need replacement adhesive to reattach the back cover to the phone.

Before disassembling your device, be sure the battery is charged below 25%. If accidentally punctured or damaged, the battery can catch fire and/or explode; if discharged below 25%, the chances of fire/explosion is decreased.

Follow the iOpener Heating guide for instructions on using the iOpener.

  1. hJVBnbSELa2Jv2ku
    hJVBnbSELa2Jv2ku
    lUftGpNyusfPQIKR

    • Insert and gently push the SIM card ejector tool (or an unfolded paperclip) into the small hole on the left side of the top edge of the phone.

    • Press gently to eject the SIM tray.

    • Remove the SIM card tray from the device.

    • To reinsert the SIM card tray, orient the SIM card with the gold contacts facing up and the notch to the bottom right. Reinsert the SIM card by pressing the card gently into the SIM tray slot.

  2. CI4hBaa6BB2X1TXw
    CI4hBaa6BB2X1TXw
    r6grOpMaIXZ4eMHp
    KIOIjgJnvJBvnYlK

    • Removing the back cover of the S8 Active will compromise its waterproof seals. Have replacement adhesive on hand before you proceed, or be sure to avoid exposure to liquid if you do not replace the adhesive when you reassemble the device.

    • Remove four black 3mm screws from the outside edges of the device that hold the rubber bumpers in place using the TR6 Torx Security Screwdriver.

    • Take off the rubber bumpers from the top and bottom edges of the device.

    not needed as near as I can tell

    jason davis -

  3. 4KGCxRMHF23RkWVP

    • Use a heat gun to lightly heat the edges of the back to soften the adhesive that connects the back cover to the rest of the frame.

    • An iFixit iOpener, hair dryer, or hot plate can also be used to heat the edges.

    • Using a heat gun, hair dryer, or hot plate will make the metal frame rather hot to the touch, so handle it with care.

    • Be careful not to overheat the device –the OLED display, battery and other internal parts can be damaged by excessive heat. Approximately one minute should be enough to soften the adhesive.

  4. oSmMteTFlqJfrI4D
    oSmMteTFlqJfrI4D
    PMI1jiSHeEQMTGCN
    aEJdrClhRtc4PWKB

    • Insert the Jimmy tool under the edge of the back cover.

    • Because of the texture of the back cover, a suction handle does not provide any grip to help lift the back cover.

    • Once the Jimmy tool is under the edge of the cover, insert an opening pick into the seam to prevent the seam from closing if the Jimmy tool slips or is accidentally removed.

    • Cut slowly around the top section of the device and be careful to avoid damaging the cables for the fingerprint sensor and camera. Avoid prying too far into the top of the device to protect the fingerprint sensor.

    • Slide the Jimmy tool down the sides of the device, separating the adhesive.

  5. sfxm3VWbyLT4TlHk

    • Use the opening pick to slice through any remaining adhesive.

    • If you have replacement adhesive strips, remove any remaining adhesive from the device frame using the Jimmy tool.

    • Open the back cover slightly to the point that you can see the fingerprint sensor flex cable connector.

    • The fingerprint sensor cable connects towards the top of the phone near the front-facing camera. To avoid tearing the cable, pull the back cover off gently.

  6. QBY5uvq3WdPrpXaG
    QBY5uvq3WdPrpXaG
    GNQNRtHtIrYgRGu3

    • Slowly flip the cover over and set it down on top of the rest of the device.

    • Disconnect the fingerprint flex cable using the flat end of a spudger.

    • Remove the back cover.

    • To reconnect the fingerprint sensor cable during reassembly, angle the back cover until the flex cable lines up over its socket. Use the flat end of a spudger to snap the cable in place by gently pressing straight down.

  7. lNobq2ZYUNKZpxSr
    lNobq2ZYUNKZpxSr
    NaOxZow5oboGstsh
    Lgjfru1pYr2TrmFH

    • Remove eleven 3.5 mm screws using a Phillips #00 Screwdriver.

    • Remove two 2mm screws using a Phillips #00 Screwdriver.

  8. X2yOcgYi32QnVoxB
    X2yOcgYi32QnVoxB
    XfcX1NLKPqZXxFNZ

    • Remove the NFC antenna and charging coil assembly using the flat end of a spudger.

  9. MoHLOokJkITSgcP1
    MoHLOokJkITSgcP1
    DxRvyLZSTQfeaCYh
    oA6QYnK1Esd5ATjK

    • Remove the loudspeaker assembly using the flat end of a spudger.

    Step nine (removing the loudspeaker assembly) did not seem necessary to replace the battery pack. Skipping this would save some time and risk. Otherwise GREAT instructions! And completed sucessfully! Sam Caldwell rev.sam.caldwell@gmail.com

    Sam Caldwell -

    broke 2 spudgers on this make be careful

    jason davis -

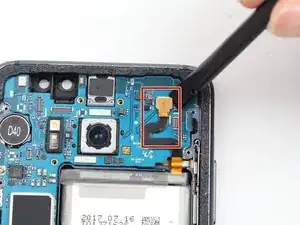

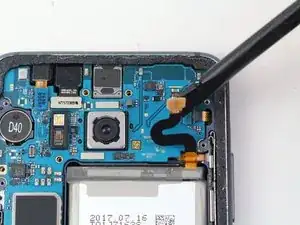

  10. C1HKZQXZUWGcUwM2
    C1HKZQXZUWGcUwM2
    VVjTmqbWcPqutmpU

    • Use the flat end of a spudger to disconnect the battery flex cable.

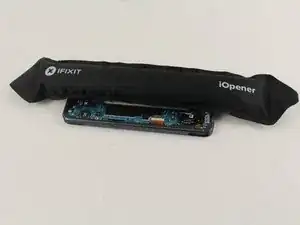

  11. uaXbqPYjd5WgaeBk

    • Place the heated iOpener across the top of the battery for approximately three minutes to soften the adhesive holding the battery to the device.

    • If you have multiple iOpeners, it is recommended to also put one on the screen side of the battery.

    • A hair dryer or heat gun can also be used to soften the adhesive but be careful to not overheat the battery. Also, the hair dryer/heat gun will make the metal frame rather hot to the touch, so handle it with care.

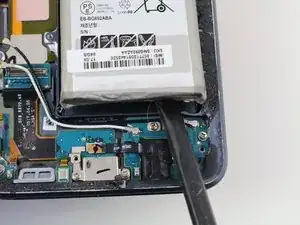

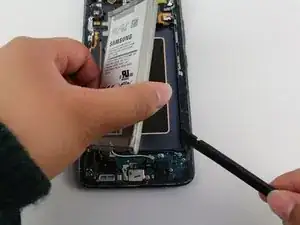

  12. JCK1SXjrpuwtVnNV
    JCK1SXjrpuwtVnNV
    XAtV3pPDMgdjNeqk

    • Pry up on the bottom of the battery until the adhesive separates using the flat end of a spudger.

    • The adhesive that holds down the battery is industrial grade and is VERY difficult to separate.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Erik Mauk

Mitglied seit: 24/01/19

1396 Reputation

7 Kommentare

Can I buy all of the parts on ifixit?

mikeg216 -

Where can I order the batter

walikossovi -

I need to do this repair. Can’t seem to find the battery on here.

jeremy wren -

Nice guide!

I still managed to rip the fingerprint cable tho ¯\_(ツ)_/¯

Somil Joshi -

I completed this, the hardest parts were: 1. When prying up the battery, the back of the screen is directly under it! Any nicks or scratches will completely damage the screen! yikes. 2. when going back through and replacing the step 8 part, make sure the pieces are completely in line and the screws are not even a tiny bit crooked.

Thanks for the guide!

Bree -

My wife has an S8 Active whose back cover is coming off, seems like the adhesive has failed. I’m assuming to do the repair described above you’d need to replace the adhesive on the back cover. Do you sell the adhesive strips?

Chris Coyle -

What type of adhesive should I use during reassembly?

sandijones -
