Einleitung

Using these steps, you can replace the volume button on your Galaxy SIII Mini VE.

  1. DPGWWFjQKTI6jgHm
    DPGWWFjQKTI6jgHm
    n3oZQjdvSmFrYZkD
    ga6lpJJgM5lSxcCE
    • Flip your phone so you are facing the back.

    • Locate the notch at the top and gently use your finger or an opening tool to remove the rear casing.

  2. MF5MqwIJmpMEP4mN
    MF5MqwIJmpMEP4mN
    BkhOoyCjaoAWDKXF
    • Use your finger or an opening tool to pry the battery out of the phone.

  3. ThUURp1oeUBBlWDV
    • Use the Phillips #000 Screwdriver to remove the 10, 4mm screws holding the plastic frame in place.

  4. T63Sl1IoeCWISunG
    T63Sl1IoeCWISunG
    VUqYwhVMgxe4TvZP
    • Using an opening tool, gently separate the plastic framing from the phone.

  5. fTNKAVCoUm6ATClZ
    fTNKAVCoUm6ATClZ
    LKVSF4WHGNQPdRwO
    gKsw56EgjrsAijTH
    • Unhook the two electrical connections at the bottom of the phone using your fingernail or a spudger.

    • Next, use the spudger and tweezers to remove the speaker at the top of the phone.

    • Once the 3 components have detached, the circuit board should release from the phone except for 1 connection on the underside.

    • Detach this connection using the spudger.

  6. e4yMrmiCM3jaFMPQ
    e4yMrmiCM3jaFMPQ
    KHecufPXsWYIIWSa

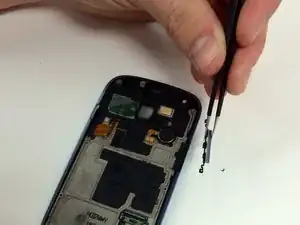

    • Locate the volume button.

    • Using the tweezers, life the volume button up and away from the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
