Einleitung
For the Cricket Samsung Galaxy Sol, this replacement guide will teach you how replace the headphone jack audio plug in. Some reasons why this might need replaced are things like water damage, loose headphone jack and a bad connection from the cord.
Werkzeuge
-
-

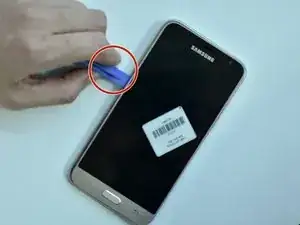

Remove the back case of the phone by using an opening tool or fingernail to lift the divot on the top left side.
-
-
-
Remove the battery by lifting from the bottom up with an opening tool or a small flat tool such as a credit card.
-
-
-

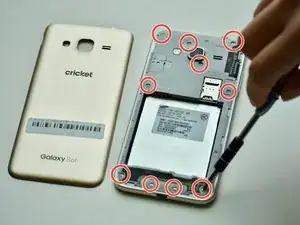

Remove the grey back of the phone by unscrewing all ten 0.4mm screws with a Phillips #00 screw bit.
-
-
-
Remove the headphone jack at the top of of the phone by carefully removing it with tweezers.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
