Einleitung

How to replace their screen on their own in a simple and straight forward manor. Screens can break from physical damage or the screen becomes nonfunctional from everyday ware. The screen is one of the most vital pieces of the phone. Screen replacement can be a hassle and expensive this guide will save you money and time.

  1. eTCRjFIUnYTOhpPN
    • Place phone firmly between both hands with one hand flat on the back of the phone and pop off the back cover

  2. NMZj1kTeyUuDxJba
    NMZj1kTeyUuDxJba
    ksAyYwSSW2S2WT2J

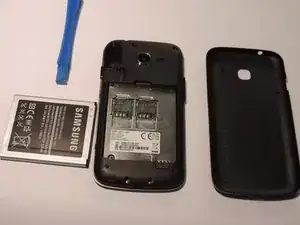

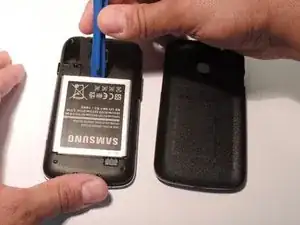

    • Once rear cover is off use small pastic spudger to lift battery out of the phone

  3. KP4ZjKk2kuaySf2s
    • After following how to remove the battery, unscrew the five 1.2mm Phillips Screws on the one back of the phone using screw driver. Use the J00 Phillips head screw bit to take out the screws

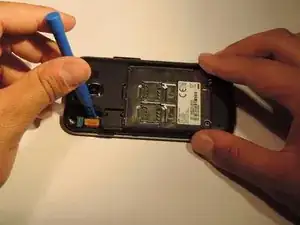

  4. UcM4TgZBIr5rrsVQ
    • Once screws are removed turn the phone over and use the plastic opening tool and unclip the connector holding the screen to the motherboard.

    • Be careful to not damage the press-fit connector that connects the screen to the motherboard.

  5. krgPQxB52NeCFhHs
    • Us the plastic opening tool to pry apart the screen from the plastic. Start from one side and work your way around the whole phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
