Samsung Galaxy Tab A 10.1 S-Pen Speaker Replacement

Geschrieben von: Guneet Bawa
  • Kommentare: 1
Samsung Galaxy Tab A 10.1 S-Pen Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

8 - 10 Minuten

Einleitung

This guide will guide provide you with step by step instructions on how to replace speakers of the Samsung Galaxy Tab A 10.1 tablet.

  1. yttGvJIxrHsXybHO
    yttGvJIxrHsXybHO
    UPpf3ySPGVCgaQJ2

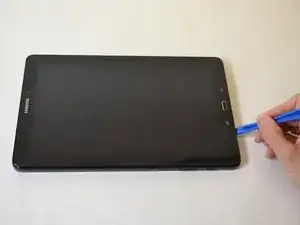

    • Remove all external power and turn off the tablet.

    • Insert a plastic opening tool between the screen and rear casing.

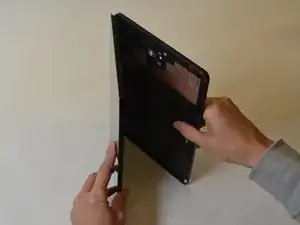

    • Pry the screen and rear casing apart.

  2. vfwhJnFBKL4YeWDC
    vfwhJnFBKL4YeWDC

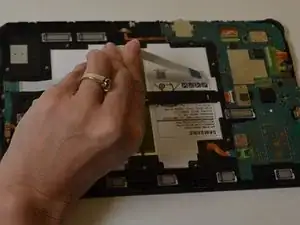

    Cw5CNveJnUxKuvAa

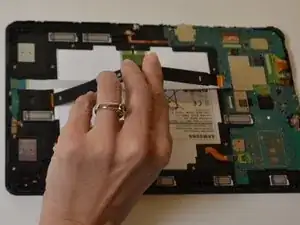

    KkCVVS2iOxAhNdEM

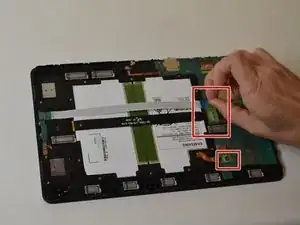

    • Remove the three green pieces of tape covering the white, black, and gold ribbon cables.

    • Use a spudger to flip up the retaining flap on the three ribbon cable ZIF sockets.

    • Pull the ribbon cables out of the sockets.

    So the three ribbon cable ZIF sockets battery one broke off where can I buy and what's the proper way to call it any help would be greatly appreciated

    Douglas Shudarek -

  3. wEBRhRRLNjsBGqQR
    wEBRhRRLNjsBGqQR

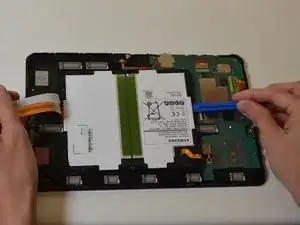

    JKQeMSPWFyKpjNXi
    Q2jTlMCCg6qUZcrl

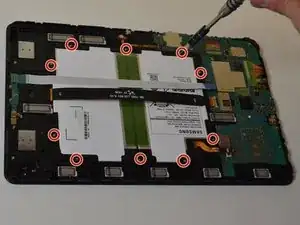

    • Remove the ten 4mm Phillips #000 screws from the battery.

    • Use a plastic opening tool to pry up the battery.

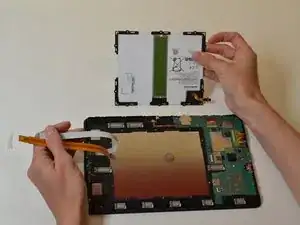

    • Remove the battery.

  4. djxmAOZ5pNdXkQHq

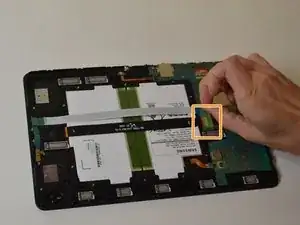

    • Use a spudger to flip up the retaining flap on the ribbon cable ZIF socket.

  5. faLeHMLliWIbM2sH

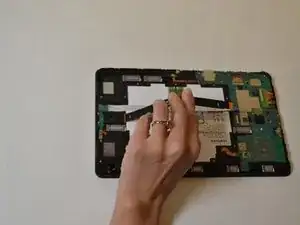

    faLeHMLliWIbM2sH
    h2nXoCUgR4JqBZMr

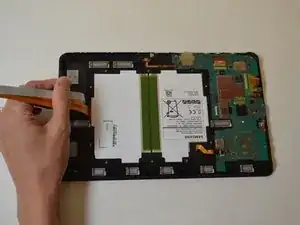

    • Remove the ribbon cable from the socket.

  6. IYxedMsLCWaOHCyt

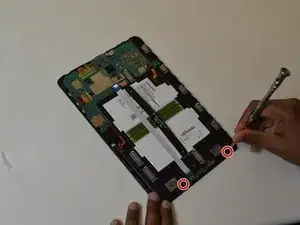

    • Remove the two 4mm Phillips #000 screws from the speakers.

  7. 6fHEflODksEXXyit

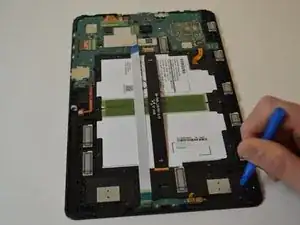

    6fHEflODksEXXyit

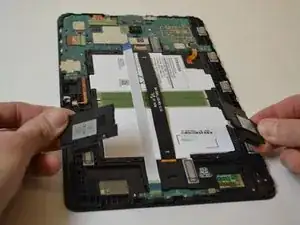

    HmYyAL6PUtPHZgCe

    • Use a plastic opening tool to pry the speakers out of the tablet

Abschluss

To reassemble your device, follow these instructions in reverse order.
