Samsung Galaxy Tab 2 7.0 Disassembly

Geschrieben von: Hadena
  • Kommentare: 1
Samsung Galaxy Tab 2 7.0 Disassembly

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

35 Minuten

Einleitung

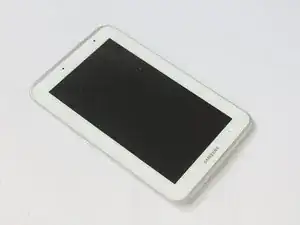

  1. xZ52UTVAtmxuuHKW
    xZ52UTVAtmxuuHKW
    P46dCHQVI4qRnvXk

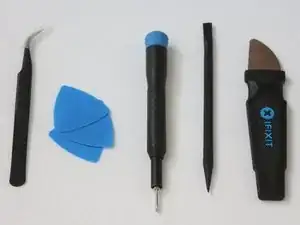

    • 00 Phillips Driver Bit

    • Plastic and Metal Prying Tools

    • Plastic Spudger

    • Tweezers

  2. GPqpcvFqfwpvd2AD
    GPqpcvFqfwpvd2AD
    JLWTagZtKILSTOll
    NgkyEt4ncpMjjCoU

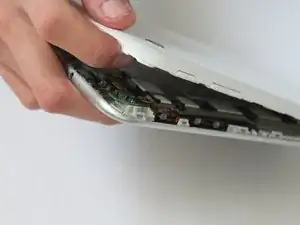

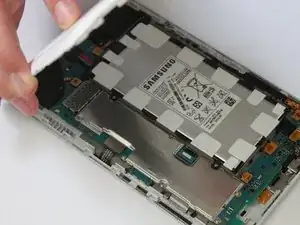

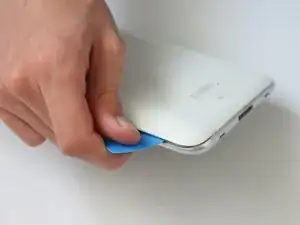

    • Get a pry tool and go along the edge of the cover

    • Twist the pry tool to un-clip the clips

    • This can take some time and can be difficult.

  3. URBLyaGdLP3NYJZs
    URBLyaGdLP3NYJZs
    c1ZhEvtPpgICjfJG
    uqWHWZDSmO1RQjEZ

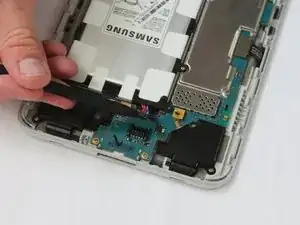

    • Get a plastic spudger and push upwards on the underside of the connector

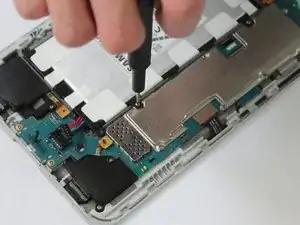

    • Then unscrew the battery from the body.

    • Then you can remove the battery by simply lifting it out of the case.

    • DO NOT use metal pry tools or try to pry the battery out with them if it is stuck. Use gentle pressure with a plastic pry tool to pry the battery out.

    • You will want to remove the battery first to remove all power from the device so you don't short or damage anything inside.

  4. 1MgBBlHbGVlgGKUm
    1MgBBlHbGVlgGKUm
    sWx14WYX2WkiQilU
    VZxYLnBBS64v5YFX

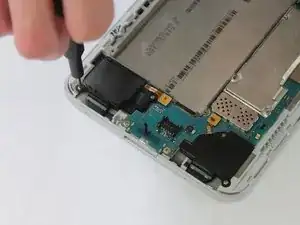

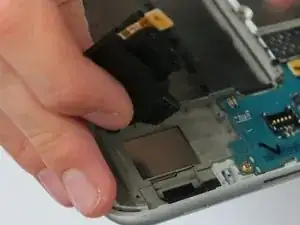

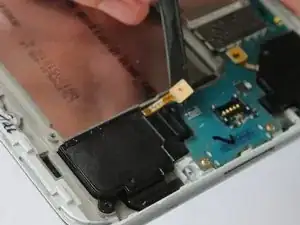

    • Un-screw the two screws on each of the speakers.

    • Use the plastic spudger to un-clip the connectors. These work like Lego bricks.

    • You can then remove the speakers.

  5. jTrxIhhIMpGn3ZjM
    jTrxIhhIMpGn3ZjM
    LpiwFTwRV5ucXBuG
    CP3cFaH6GJUMEeUu

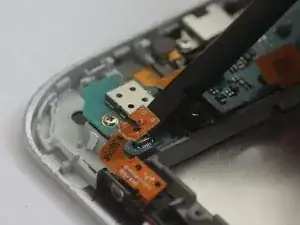

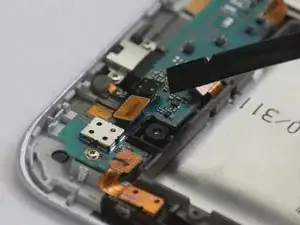

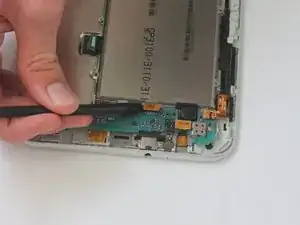

    • Un-clip all of the ribbon connectors from the board.

    • Be careful to not tare any of the ribbon cables.

  6. UAeAd1IkjwZTtrng
    UAeAd1IkjwZTtrng
    3aCSKNClRuqPdfZ5
    HvPrAT5EGCiawDp2

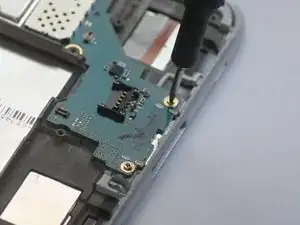

    • Un-screw all of the screws from the board.

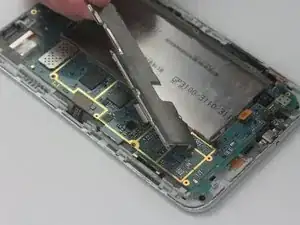

    • You can then remove the metal shield from the board.

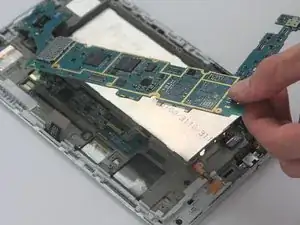

    • After, you can remove the motherboard by pulling up from the top and slide it out of the power connector port.

    • Near the top there is some adhesive which can be a bit hard but giving the board a bit or leverage.

  7. HYvSPgXIXVMaHgVa
    HYvSPgXIXVMaHgVa
    XClrNDGjLg3Sj1g4
    PwqBXoFFZQVqJeiZ

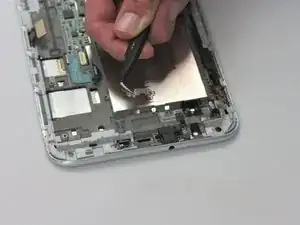

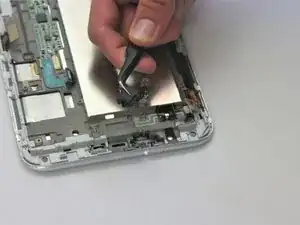

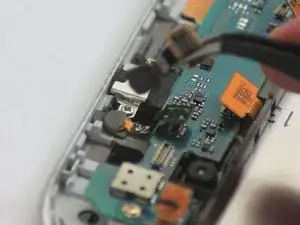

    • You can then remove the components such as the cameras and the mic.

    • To remove the headphone jack you un-screw the metal bracket.

    • The MIC and the AUX port are held in by adhesive but giving it a bit of a push should set them both free.

  8. df15lTl54TLrGoSZ

    • You will be left with the display as one piece. If you need a screen replacement you can replace the whole screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
