Samsung Galaxy Tab 2 7.0 Speaker Replacement

Geschrieben von: Katija Tarailo
  • Kommentare: 0
Samsung Galaxy Tab 2 7.0 Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

If you have water damage, or listen to music too loud and blew out you speakers, this guide will help you replace them. Be aware that there are many small pieces within this device, from 4mm screws to small components. This is a very simple part to replace, so there will not be too much to keep track of - only the back of the device and the speakers themselves.

  1. tFJLtSiTHhCEpgnP

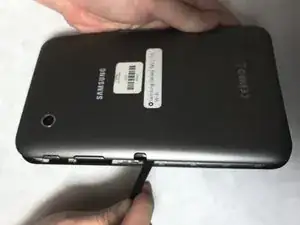

    • Using a nylon spudger or flat plastic opening tool, pry open the back of the device.

    • It is easy to begin this process by starting at the micro SD card insert, as shown in the pictures.

  2. Emrw3PZlSWN324s1
    Emrw3PZlSWN324s1
    Q5R5ZcdpVkIuZKsg

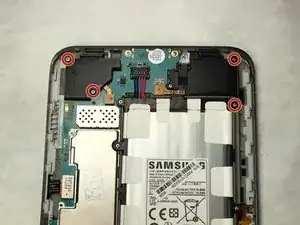

    • Using a phillips head screwdriver, remove the two 4mm screws holding down each speaker.

  3. tDO1gHeDQEMt6wFC
    tDO1gHeDQEMt6wFC
    2wjwWOPrjuUXSODx
    rPfQ2hUThVbhIsti

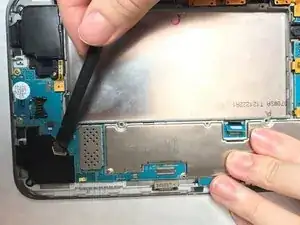

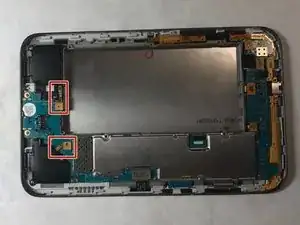

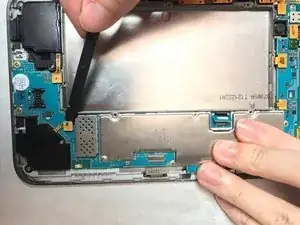

    • Locate the flex cable attaching each speaker to the motherboard.

    • Carefully use a nylon spudger to lift the cable and detach it from the motherboard.

    • Lift the speaker out of the device.

    • If the speaker does not come out easily, use a flat tool under the flex cable to slightly lift the speaker out of place before removing it with your hands.

    • Be careful when working with flex cables. Excessive force and sharp tools have the potential to damage these components.

Abschluss

To reassemble your device, follow these instructions in reverse order.
