Samsung Galaxy Tab 3 7.0 Motherboard Replacement

Geschrieben von: Brandon Dimaya
  • Kommentare: 16
Samsung Galaxy Tab 3 7.0 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

  1. QZEVeMHrP4bZBdVx
    QZEVeMHrP4bZBdVx
    xW4qOYTHwSJ5Okrp

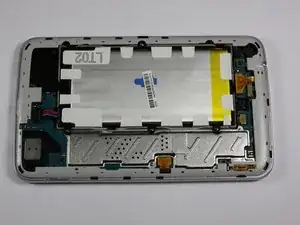

    • With a plastic opening tool, gently insert the prying end in between the glass digitizer and the silver frame from the front of the device.

    I tried this with my Galaxy Tab A. I only wanted to remove the front and rear cameras.

    wmcarroll13 -

    How hard do i need to push the plastic part? i tried it but i wont pop off.

    Emil Klock -

  2. Uw5YYMThPqLEgPuV
    Uw5YYMThPqLEgPuV
    mocuHyko1dprPlMZ
    UltShwDP1QQxaE3s

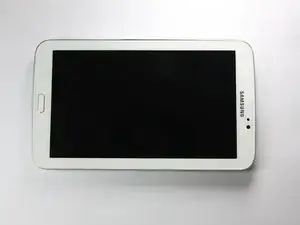

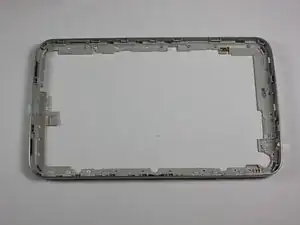

    • Working slowly and carefully, move around the entirety of the face of the device. Small plastic clips should release, if not, apply gentle outwards pressure until you hear the clips popping off.

    I used a dull knife blade and just slide it along the grove. You may have to slide the knife back and forth a couple of times but, the cover will unsnap.

    wmcarroll13 -

  3. R5N2ihJKYjyfXRwF
    R5N2ihJKYjyfXRwF
    U4psn2cCIWY4wVFV
    KeAFkoDxZ4o5XeUx

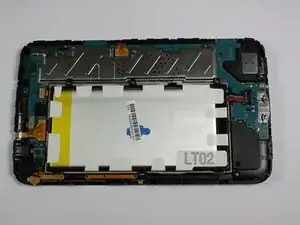

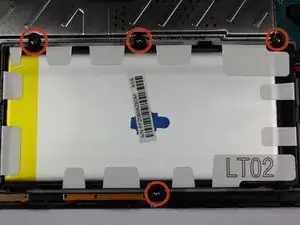

    • To begin actual removal of the battery itself, remove the four designated screws with your screwdriver.

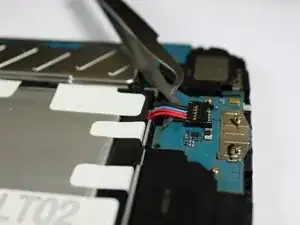

    • Once the screws are removed, use either the tip of your screwdriver or a pair of tweezers to pull up the battery connector. Pull directly up and the connector should pop out.

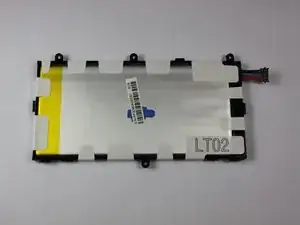

    • Once the battery is removed, it should look as it does in the third picture.

    Gently lift the battery from the inside edge using the battery connector. The battery is hinged on the outside edge by two plastic protrusions which fit into the plastic frame where the battery is located.

    markiratcliffe1 -

    Because I was only removing the cameras, I did not have to touch the battery. However on the motherboard; there are 4 screws up top you have to remove. Where your headphones plug in; gently pull up the connector away from the board. Tilt the motherboard up at a 45-60 degree angle. With a pair of tweezers, pull both cameras up (one at a time) while pulling side to side. The connectors will slide out. Then make sure the bottom of motherboard is slipped under small tabs then replace screws up top. Snap connector for earphones back into place.

    wmcarroll13 -

  4. m2ZQbXropX5BfcBY

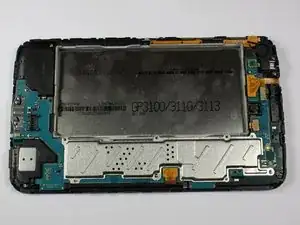

    • To finish battery replacement, place your new battery where the old battery was in your device, as shown in the picture.

    Don't forget to insert the battery on the outside edge first, locating the plastic protrusions into the frame around the battery. Use the tip of your screwdriver to push down on the protrusions to locate them in the frame. Once the battery is located correctly, it should sit flush with the frame that surrounds it.

    markiratcliffe1 -

    No explanation of how to separate the glass from the body in order to access the battery.

    randyshelly -

    Its the 1st step, pry tool down between glass and edge, all the way round. It has pressure clips

    robert.stevens89 -

  5. QUHThw5KNDZfSKr1
    QUHThw5KNDZfSKr1
    ABXHL23eAYJGLLED
    XbTJJqA3dwdvvHDQ

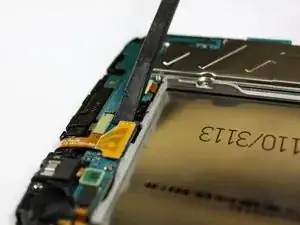

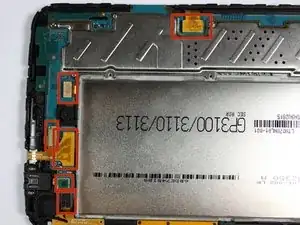

    • Begin replacement of the motherboard by releasing all connections holding down the motherboard, shown in the first picture.

    • To do this, use your spudger, tweezers, or a plastic opening tool and gently lift the connections up from their ports.

    • Once you separate all connections, the back of your device should look as it does in the third picture.

  6. OJbAXMo1ZZfIRbXe
    OJbAXMo1ZZfIRbXe
    aK5PTOpbY5JHaJ3V
    QCngWAANmOqBSSKh

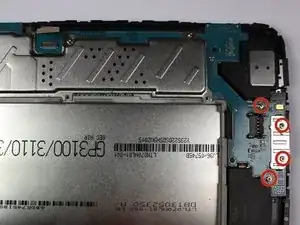

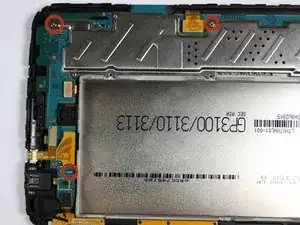

    • Once all connections have been released, begin removing the screws shown in the first two pictures.

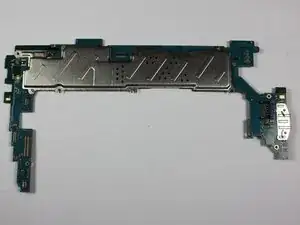

    • Once all screws have been removed, the motherboard can now be removed and replaced with a new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
