Samsung Galaxy Tab 3 8.0 Akku austauschen

Geschrieben von: Peter Paoletta
  • Kommentare: 10
Samsung Galaxy Tab 3 8.0 Akku austauschen

Schwierigkeitsgrad

Mittel

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

Für die meisten Reparaturen muss zunächst der Akku ausgebaut werden, das wird hier gezeigt.

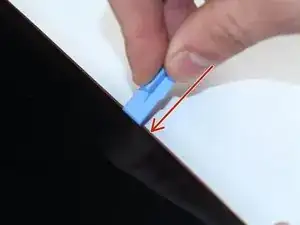

  1. uqPlpWEDaabWyXcG
    uqPlpWEDaabWyXcG

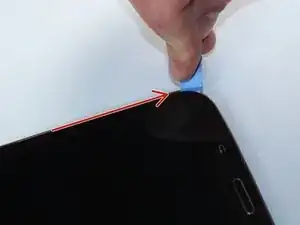

    WFFWqhUOAyqcS5xh

    • Trenne den Bildschirm vom Rückteil indem du ein größeres Plastiköffnungswerkzeug zwischen sie setzt und aufhebelst.

    Separating the back cover was the hardest part of the procedure for me (a retired electrical/software engineer). I used a large flat screwdriver blade instead of the hard plastic tool shown. Go slow all the way around the tablet and expect pops as the pieces separate. I was not able to re-connect the back cover completely, accepting a paper-thin gap about 30% around the cover, but it is secure.

    Rick Nungester -

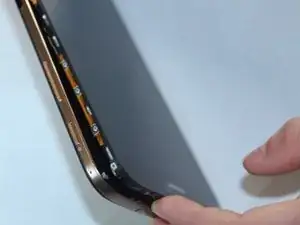

  2. tbiVMVYonZPJ3B2Q
    tbiVMVYonZPJ3B2Q

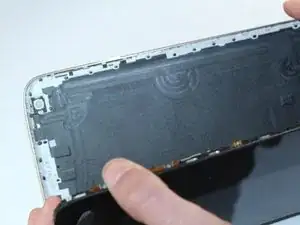

    k5SKVjfsgHGWR5io

    • Wenn der Bildschirm gelöst ist solltest du die Teile mit der Hand trennen können.

    Peter how do I know which charging port I need thank you I don't know how else to reach you Tom Patrick mlc@earthlink.net all small case and no spaces thank you

    Tom Patrick -

    Yikes. I began carefully prizing off the screen - but when it finally came away the connector (near the top of the screen, about 1” from the right side) got ripped, so the unit is damaged beyond repair. I think it would have been helpful if your guide had warned us about this possibility and given some advice about how to make sure it doesn’t happen. I now have a broken tablet and a brand new battery, likewise of no use to me. Pretty heartbroken - the unit had been working fine, mainstay of daily use.

    goodone -

    For any future people repairing their tablets. DO NOT REMOVE THE SCREEN. I thought my tablet was a Tab 2, but no it was a Tab 3. No heat guns needed. I ended up cracking my screen a bit. I don’t know the extent of the damage yet, but Im probably going to get a replacement screen. You need to pop out the whole thing. Not just the front screen. The reason being that there’s a sort of metal scaffolding holding the screen and the back together. This needs to be separated to put in the new charging port.

    Matt -

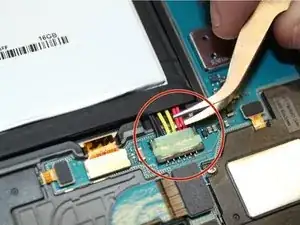

  3. aWAPHjPpCDUvUUn5
    aWAPHjPpCDUvUUn5

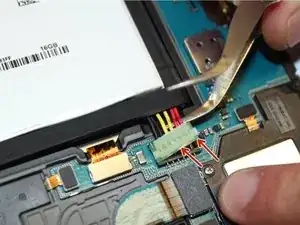

    PGFuXNLsOTvjNhkX

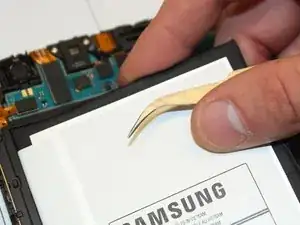

    • Um den Akku zu entfernen musst du zunächst z.B. mit einer Pinzette den Anschluss lösen.

    • Der Verbinder muss nach oben gezogen werden.

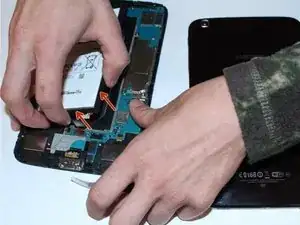

  4. ROniCJCAVJouVoaq

    • Wenn der Anschluss gelöst ist kannst du den Akku mit den Händen herausziehen. Es kann etwas schwer gehen, weil der Akku auf der Rückseite verklebt ist.

    You don't have to, just be careful with battery connector.

    Kyoko Hori -

    You have to be very careful with the battery connector. On mine, the plug was difficult to remove from the base and I ended up breaking the connections between the base and the circuit board. Maybe use the pry tool to hold the base down while easing out the plug.

    Hugh Morrison -

    I just did the same thing Hugh...does that mean my tablet is trashed? Can it be repaired?

    tlibert -

    There’s also a pull tab on with label printed on the batery to make the pulling easier.

    IMI Comp -

Abschluss

Um dein Gerät wieder zusammen zu setzen folge den Schritten in umgekehrter Reihenfolge.

Tinte & Feder

Peter Paoletta

Mitglied seit: 22/09/14

2082 Reputation

2 Kommentare

To remove the battery without risk of damage, slide the corner of an old credit card under the battery in the middle at the end opposite the connector, then slide the card down under the battery to seperate the battery from the adhesive underneath. Repeat on the other side.

Hector McGillivray -

Also be REALLY careful when lifting up on the battery connector. It can tear away from the motherboard easily.

Lori Beth Kerns -
