Samsung Galaxy Tab 3 Kids Battery Replacement

Geschrieben von: ajhoffman
  • Kommentare: 1
Samsung Galaxy Tab 3 Kids Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

This replacement guide will walk you through how to replace the battery in the Samsung Galaxy Tab 3 7.0 Kids. Having a bad or broken battery can lead to poor battery life or unwanted shut downs.

For your safety, discharge your battery below 25% before disassembling your Galaxy Tab. This reduces the risk of a dangerous thermal event if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

  1. 6rqdJixRiYWSDWO5
    6rqdJixRiYWSDWO5
    kfJbvlCsGYslXyyB

    • Before beginning this repair, make sure that the device is completely turned off.

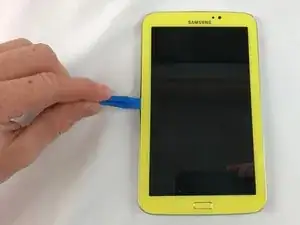

    • Wedge the plastic opening tool in the seam between the screen and the back cover.

    • Slide the tool around all the edges and remove the screen from the back cover.

  2. sBlMbHBgDjsU4uJA
    sBlMbHBgDjsU4uJA
    ucWncfeSDySm4KUn

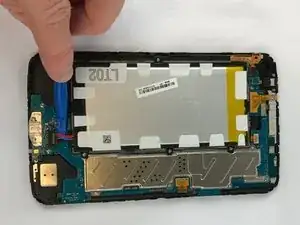

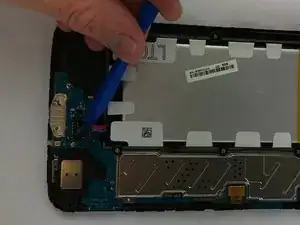

    • Unplug the battery connection carefully using the plastic opening tool.

  3. RPMPhGmYXDUZjU5P
    RPMPhGmYXDUZjU5P
    yx2hyocZV1CdqH1d

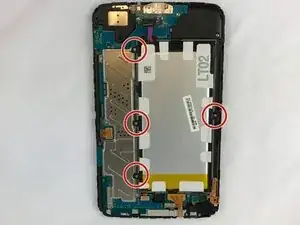

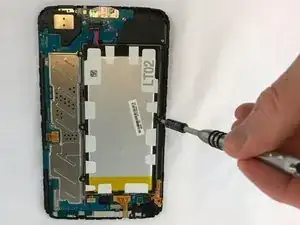

    • Remove the four 1.2 mm Phillips #000 screws surrounding the battery.

  4. DcGCEGbCATQydtgh
    DcGCEGbCATQydtgh
    GSfLXAApC6hgObEH

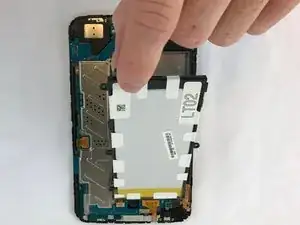

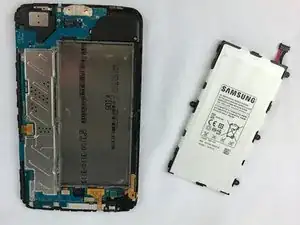

    • Use your hands to gently lift the battery up to remove it.

    • If it does not come off easily, there may be some glue underneath the battery and may need to be pried off with a spudger.

Abschluss

To reassemble your device, follow these instructions in reverse order.
