Samsung Galaxy Tab 4 10.1 Loudspeaker Replacement

Geschrieben von: Blake Klein
  • Kommentare: 4
Samsung Galaxy Tab 4 10.1 Loudspeaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

1 - 2 Stunden

Einleitung

Replacement guide for the loudspeakers on a Samsung Galaxy Tab 4 10.1 android tablet.

  1. 2ypVnXDaH2yMTNDu
    2ypVnXDaH2yMTNDu
    UPiFnLhBSfVoKfrb

    • Insert the wedge of the nylon spudger and slide it between the front and back panels until the back comes off.

  2. xJcyia5ZeKdZ1jBC

    • Peel off the green tape that covers the connectors for the three black strips.

    • Use the tip of a spudger or your fingernail to flip up the small retaining flaps.

  3. 3cYyuEeODfGOQNJ1

    • Use a Phillips #00 screwdriver to remove the four 3.2mm screws.

  4. EjBxK4OZoHIZvDBI

    • Detach the red, blue, and black cables by prying up on the white connector from the motherboard.

    • If using fingers instead, pull evenly on the full width of the cable so the wires are not overly strained.

    • If you pull too hard you can damage the connector on the circuit board. Use a spudger or tweezers to push down on the black connector on the board while gently prying the battery connector loose. The connector breaks VERY easily.

    Take note of the red warning comment! Very easy to pull up the connector off the board!!!

    Unfortunately I just that because I didn’t hold down the connectors with tweezers (or something) and then botched an attempted reflow of the solder, costing even more time and money! :(

    Ashley Lahm -

  5. 1mBdiy6mBF5YsYZ6

    • Use the nylon spudger to remove the battery by prying up on the edges.

  6. BPedFdnyS1twOWIA

    • Once the battery is loose, lift it out of the device.

    I’m new to working on these devices, but I am wondering why the battery is removed? Is that necessary for this repair? Thanks!

    Tuvy Guss -

    Better disconnect battery before any repairs, therefore reducing the possibility of a short-circuit which could destroy the motherboard.

    Tian Lai Li -

    Isolation tape can also be placed over the connection after disconnecting to prevent any accidental short-circuit mishaps, thus reducing the need to remove the battery.

    Cheers Wayne

    Wayne Lyell -

  7. 5eOtE3dUeRVREBQu
    5eOtE3dUeRVREBQu
    uWhf1aPfwCgfCWNS

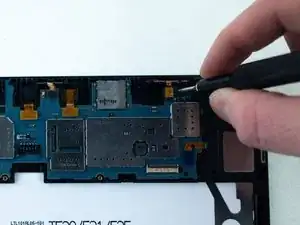

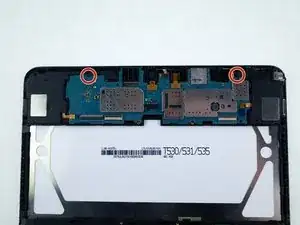

    • Remove the two 2.7mm Phillips #00 screws from the motherboard.

  8. RN1wHEEBgTGUhaHZ
    RN1wHEEBgTGUhaHZ
    DSmEgyfXT41TMTbm

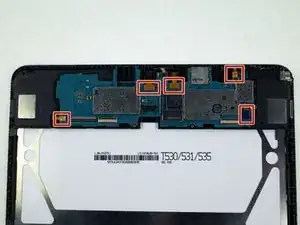

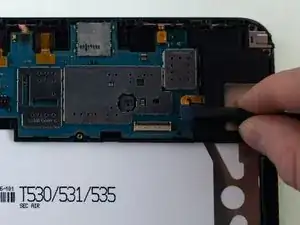

    • Use the flat end of a spudger to pry up and disconnect the five press-fit connectors from the motherboard.

  9. sqOYqhPdH1gmfxta
    sqOYqhPdH1gmfxta
    l33LHkx5JeQqQPnG

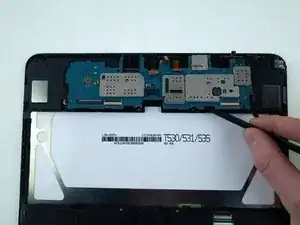

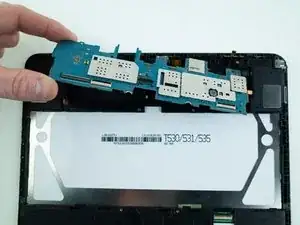

    • Use a spudger to pry up the motherboard, and remove it from the device.

  10. uwu5BnssOlVROLoo
    uwu5BnssOlVROLoo
    1GLNVUWWiuuEB1UO

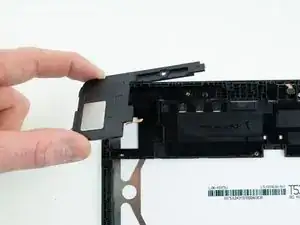

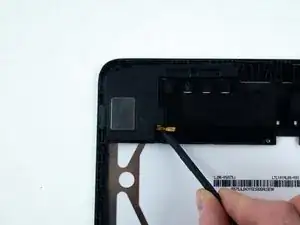

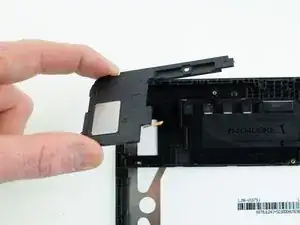

    • Insert the pointed end of a spudger underneath the ribbon connector of the left loudspeaker.

    • Pry upwards to remove the loudspeaker.

  11. 5viUOMCYrjMZaqaG
    5viUOMCYrjMZaqaG
    AOtNtpLHNTjvHTtF

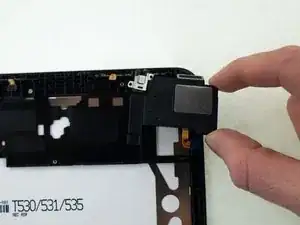

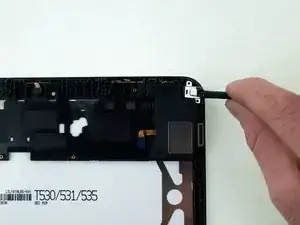

    • Insert the pointed end of a spudger underneath the headphone jack .

    • Pry upwards to remove the loudspeaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
