Samsung Galaxy Tab 4 10.1 Micro USB Port Replacement

Geschrieben von: Blake Klein
  • Kommentare: 6
Samsung Galaxy Tab 4 10.1 Micro USB Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

1 - 2 Stunden

Einleitung

Replacement guide for the micro USB charging port on a Samsung Galaxy Tab 4 10.1 android tablet.

The battery only needs to be disconnected—skip steps 3, 5, and 6.

  1. 2ypVnXDaH2yMTNDu
    2ypVnXDaH2yMTNDu
    UPiFnLhBSfVoKfrb

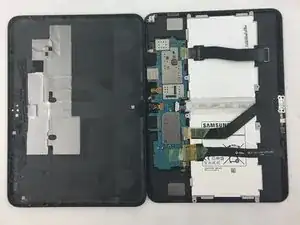

    • Insert the wedge of the nylon spudger and slide it between the front and back panels until the back comes off.

  2. xJcyia5ZeKdZ1jBC

    • Peel off the green tape that covers the connectors for the three black strips.

    • Use the tip of a spudger or your fingernail to flip up the small retaining flaps.

  3. 3cYyuEeODfGOQNJ1

    • Use a Phillips #00 screwdriver to remove the four 3.2mm screws.

  4. EjBxK4OZoHIZvDBI

    • Detach the red, blue, and black cables by prying up on the white connector from the motherboard.

    • If using fingers instead, pull evenly on the full width of the cable so the wires are not overly strained.

    • If you pull too hard you can damage the connector on the circuit board. Use a spudger or tweezers to push down on the black connector on the board while gently prying the battery connector loose. The connector breaks VERY easily.

    Take note of the red warning comment! Very easy to pull up the connector off the board!!!

    Unfortunately I just that because I didn’t hold down the connectors with tweezers (or something) and then botched an attempted reflow of the solder, costing even more time and money! :(

    Ashley Lahm -

  5. 1mBdiy6mBF5YsYZ6

    • Use the nylon spudger to remove the battery by prying up on the edges.

  6. BPedFdnyS1twOWIA

    • Once the battery is loose, lift it out of the device.

    I’m new to working on these devices, but I am wondering why the battery is removed? Is that necessary for this repair? Thanks!

    Tuvy Guss -

    Better disconnect battery before any repairs, therefore reducing the possibility of a short-circuit which could destroy the motherboard.

    Tian Lai Li -

    Isolation tape can also be placed over the connection after disconnecting to prevent any accidental short-circuit mishaps, thus reducing the need to remove the battery.

    Cheers Wayne

    Wayne Lyell -

  7. cd6wNo1ARBRpOqiJ
    cd6wNo1ARBRpOqiJ
    aGUWd5HNC3XXUrGU

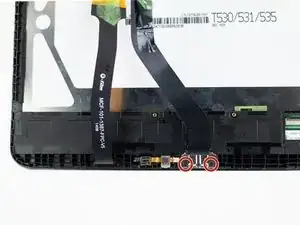

    • Remove the two 2.7mm Phillips #00 screws from the micro USB port.

    • Remove the micro USB retaining bracket.

  8. nEboWtdSKKtl43oT
    nEboWtdSKKtl43oT
    PHUknpmpDVo6jSxj

    • Use the flat end of a spudger to disconnect the micro USB port.

    • Remove the micro USB port.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Blake Klein

Mitglied seit: 30/01/17

67752 Reputation

2 Kommentare

Thank you so much for simplifying this guide for us novices. I have tried watching two videos where they assume I already have some Samsung repair knowledge. I feel confident I will be able to get the tablet up and charging in no time.

Stacie Harper -

There is no need to remove the battery, only detach the power connector, cheers!

Bartosz Kaczynski -
