If your camera is taking blurry pictures, or otherwise not working properly, it may need to be replaced. This guide will demonstrate how to replace your tablet's front-facing camera.
-
-

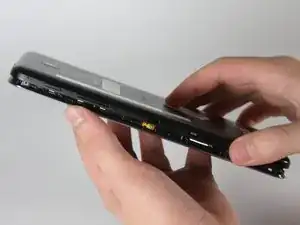

Insert the plastic opening tool into the gap between the device frame and the back panel on any side of the device.
-

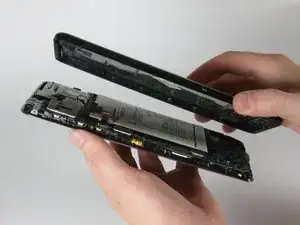

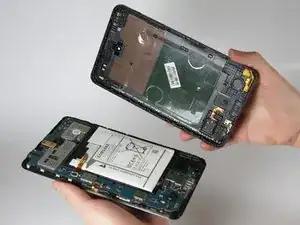

Slide the opening tool around the edges of the device to disconnect the back panel from the frame.
-
-
-

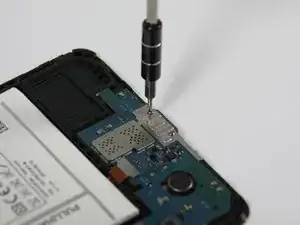

Using a Phillips #00 Screwdriver, remove the five 4 mm screws connecting the motherboard to the frame of the device.
-
-
-
Use the plastic opening tool to unlock the battery wire from the motherboard by flipping-up the small retaining flap.
-
Use the tweezers to carefully remove the battery wire from the motherboard by pulling it away from the retainer flap.
-
-
-
Use the plastic opening tool to unlock the wire on the narrow section of the motherboard by flipping-up the retaining flap.
-
Use the tweezers to carefully remove the wire from the motherboard by sliding it away from the retaining flap.
-
-
-
Disconnect the wire near the bottom of the motherboard by placing the plastic opening tool under the edge of the connector to flip it up.
-
-
-
Disconnect the wire near the top of the motherboard by placing the plastic opening tool under the edge of the connector to flip it up.
-
-
-
Gently remove the motherboard from the frame of the device by grabbing the top and bottom ends and pulling it toward you.
-
-
-
Flip the motherboard over to view the back side.
-

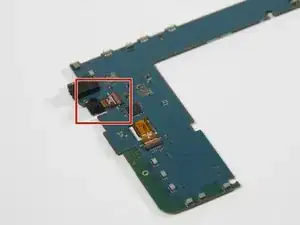

Locate the front-facing camera on the motherboard.
-
-
-

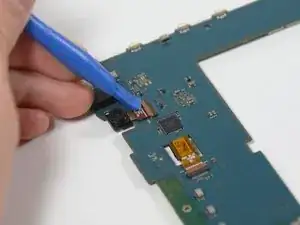

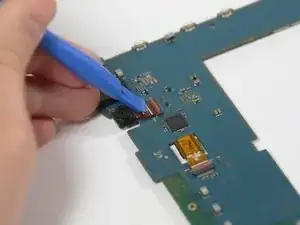

Use a plastic opening tool to unlock the front-facing camera wire from the motherboard by flipping-up the retainer flap.
-
-
-

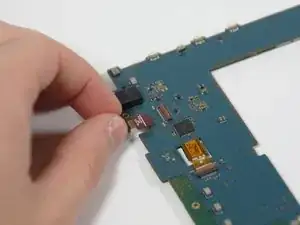

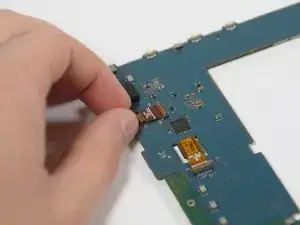

Use your fingers to grip the camera and carefully pull it out and away from the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
