Samsung Galaxy Tab 4 8.0 Verizon Front Facing Camera Replacement

Geschrieben von: Ofelia Cruz

Kommentare: 3

Samsung Galaxy Tab 4 8.0 Verizon Front Facing Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 Minuten

Einleitung

After damaging your front camera, you might feel intimidated to dig into the Samsung Galaxy Tab 4 8.0. Replacing the front camera will only require, a plastic opening tool, tweezers, muscle strength, and these easy to follow instructions. The replacement will be a breeze, but be sure not use too much force when prying the device open.

Werkzeuge

Ersatzteile

Galaxy Tab 4 8.0 Front Camera

Schritt 1

Before disassembling your Samsung Galaxy Tab 4 8.0, be sure it is powered off and you remove the SIM and Micro SD cards.
At the top of the tablet, nudge the blue plastic opening tool between the back plastic casing and the front panel's metal rim.
Do not use excessive force when prying the clips, fastening the casing together, open because they can easily break.

How do u find the tool to open it

Gm - 20/02/16

u can go and search on trade me

armaan devgun - 05/09/16

NOTE: Make sure to remove both the SIM card and the Micro SD card prior to disassembly. Failure to do so could result in broken parts.

Cameron - 22/09/16

Schritt 2

Continue prying the blue plastic opening tool along the perimeter of the tablet to separate the back plastic casing from the front assembly panel.
As right-handers, we found it easiest to move clockwise and use more pressure around the corners to facilitate the process.
You might hear several popping noises caused by the plastic clips coming undone.

Schritt 3

To avoid damaging the screen, gently set the tablet with the LCD screen faced down.
Firmly grasp the back plastic casing and lift it away from the front assembly panel.

Schritt 4

The front camera's ribbon cable is located just above the battery, slightly to the left.

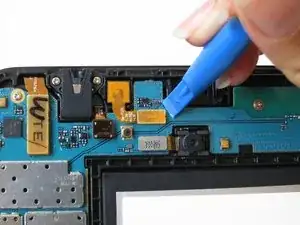

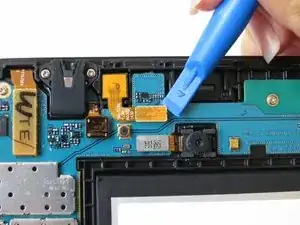

Carefully insert the flat end of the blue plastic opening tool under the connector at the end of the ribbon cable.

Schritt 5

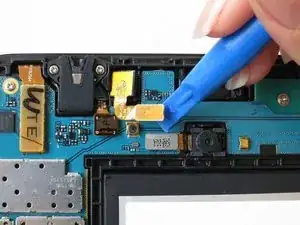

Slightly apply pressure and move the blue plastic opening tool downwards to pop the front camera’s gold rectangular connector from its socket on the motherboard.
