Einleitung
Werkzeuge
Ersatzteile
-
-

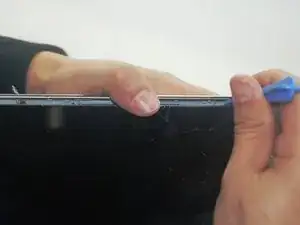

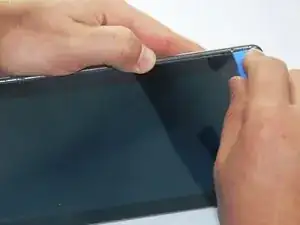

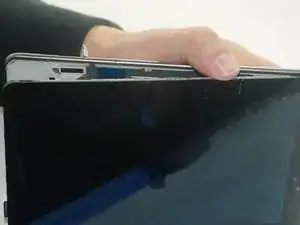

Using the prying tool, pry the silver binding from around tablet from glass edge. You will need to go around the device several times applying some force before it comes off.
-
-
-

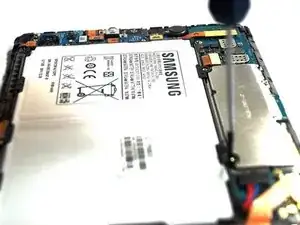

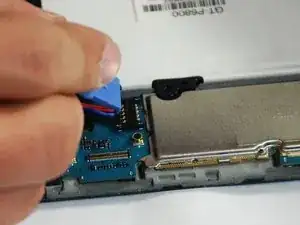

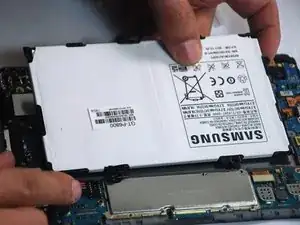

Detach the five wire connection of the battery from the motherboard. You will need to gently insert a flat head screwdriver under the connector, and using left to right motion with your wrist, create a small space separating the connector from its connection. Gradually make the space wider until the connector pops out of its socket.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
In the second and third pictures, the screen is cracked quite a bit. In the first picture there are no cracks. You must have done that taking it apart. Is it that difficult to take apart without breaking the screen? If so, the difficulty should be changed from Moderate to Difficult!
