Einleitung
As a laptop battery ages, it will gradually lose the ability to hold a charge and die more quickly. This guide will show you how to replace your battery and bring life back to your laptop.
-
-

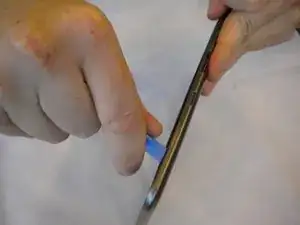

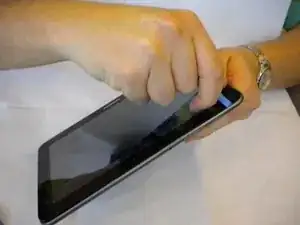

Insert a plastic opening tool between the back cover and the screen of the Samsung Galaxy Tab 8.9.
-
-
-

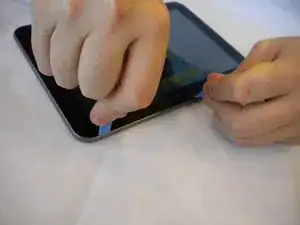

6 cm [2 in] away from the first plastic opening tool, insert a second plastic opening tool between the back cover and the screen.
-
-
-

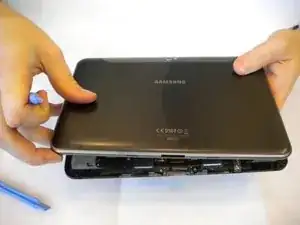

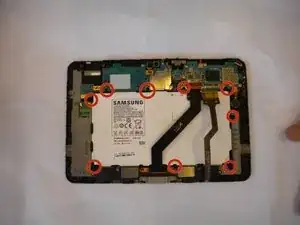

Slide the second plastic opening tool along the edge of the device to separate the back cover from the screen.
-
-
-

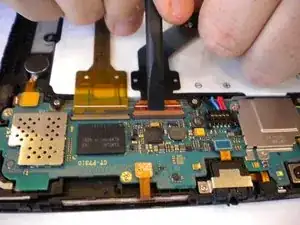

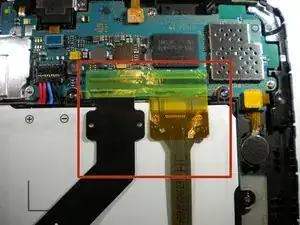

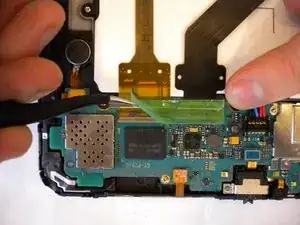

Insert a spudger under the orange tab.
-

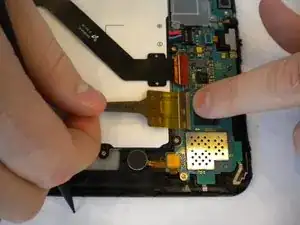

Gently pry up the tab to disconnect the black flexible ribbon cable from the motherboard.
-
-
-

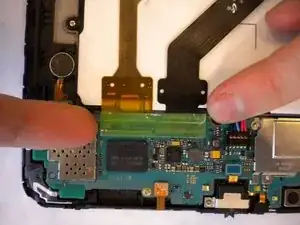

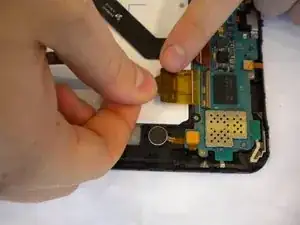

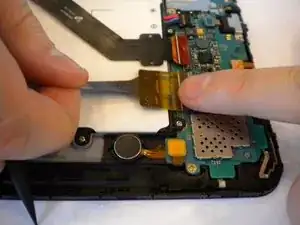

Carefully pull out the yellow flexible ribbon cable to disconnect it from the motherboard.
-
-
-

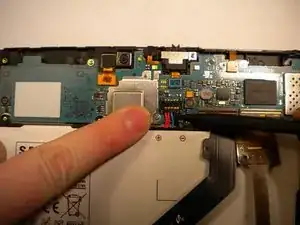

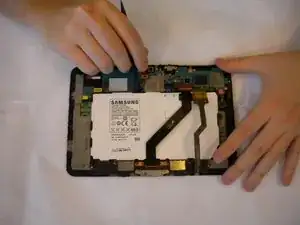

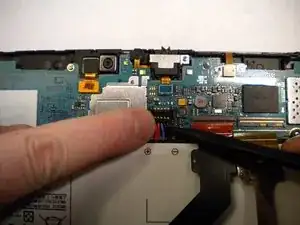

Insert the spudger under the red, black, and white cables.
-

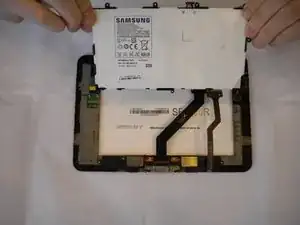

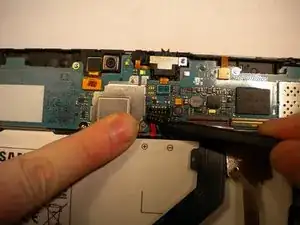

Pry up and detach the battery from the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
Ein Kommentar
Step 8 Clearer to say:
Insert the spudger under the red, black, and white cables to pry up the battery connector and detach it and the battery from the motherboard.
