Samsung Galaxy Tab A 9.7 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 - 20 Minuten

Einleitung

Bring new and uninterrupted life back to your beaten and dead Samsung Galaxy Tab A 9.7 through the replacement of the battery inside the device.

  1. jvTcykEuecNJs1Wd

    • Insert a metal spudger between the back case and the screen of the device.

    • The back cover is attached to the device by a series of snaps. The snaps are positioned about an inch from each other.

    • Move the spudger along the perimeter of the device while it is in between the back case and the screen to open each snap.

    • There will be an audible click every time a snap releases.

  2. B6OxQiemeccKCQ3Q
    B6OxQiemeccKCQ3Q
    OiTdcHdZNRMLmSEn

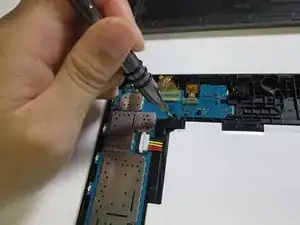

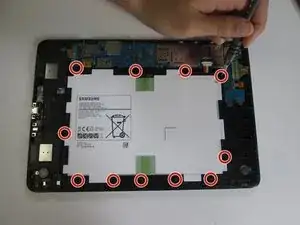

    • Remove the eleven #000 Phillips 2.8mm screws that hold the battery in place.

  3. bF4tMMEeFDCNHBkU
    bF4tMMEeFDCNHBkU
    oXbXLuvakOQau1fa

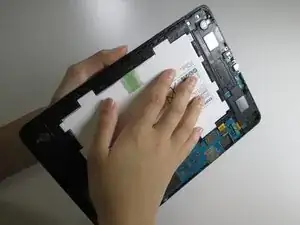

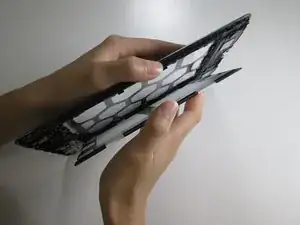

    • Place one hand on the battery and grasp the outer edge of the device with the other hand.

    • Flip the device over so that the battery falls over and onto your hand.

  4. uytyN33V6LmVrerQ
    uytyN33V6LmVrerQ
    2FkUrGqBDKUfqPUV

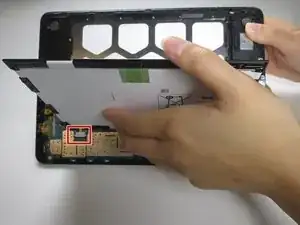

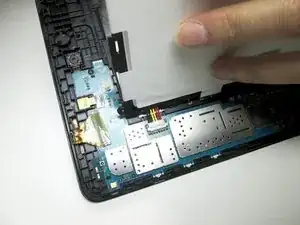

    • Pull the battery out until it is only connected to the device by the black, yellow, and red connectors.

  5. WhljhUsCIDM6p2FN
    WhljhUsCIDM6p2FN
    1rMg4UchnI5LGsLe

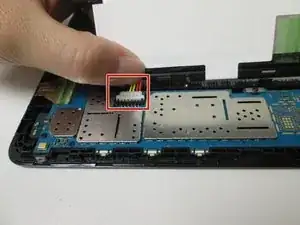

    • Hold the battery and grip the wires with your thumb and finger.

    • Pull the wires away from the device to remove the white connector from the black socket.

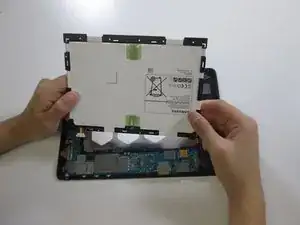

    • Lift the battery away from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
