Samsung Galaxy Tab E 9.6 Verizon Speaker Replacement

Geschrieben von: Dave Dorzback
  • Kommentare: 2
Samsung Galaxy Tab E 9.6 Verizon Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

20 Minuten

Einleitung

This guide will walk you through replacing the speaker on the Samsung Galaxy Tab E.

  1. FnA5CqB22LldtEiQ

    • Remove any micro-SD or SIM cards before continuing.

    • Verify your device is turned OFF.

    • Disconnect all external devices from your tablet.

  2. GKSfYkMLG62sySVb
    GKSfYkMLG62sySVb
    vS66AQe2jTYhkSCZ
    WOFuqVCSPOSw2mQq

    • Insert the plastic opening tool by wedging it between the device's screen and back cover.

    • Move the plastic tool around the edges of the device to undo the plastic lips holding the casing together.

    • This step may require more force than expected. If difficult, try using a suction cup on the screen.

  3. kFsQytZ5ZROUdfVe
    kFsQytZ5ZROUdfVe
    NhxOCcaU6XxOJTGT
    FL6tg4sbPevgZOfG

    • This process will become easier as more clips are separated.

    • Use your hands to gently pull the back cover off the device after about half of the clips are separated.

    • A suction cup can be used in this step as well to assist in pulling the device apart.

  4. tv2mPgHYtMMIfDnO
    tv2mPgHYtMMIfDnO
    siV4gVphnH2rKCfi

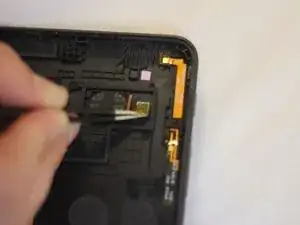

    • Locate the speaker in the top right corner of the back casing. Use a pair of tweezers to pull peel up the film connecting the speaker to the case.

  5. UaGAwPCZTqyeBLdd
    UaGAwPCZTqyeBLdd
    OE3jTmpBQlqHR56N

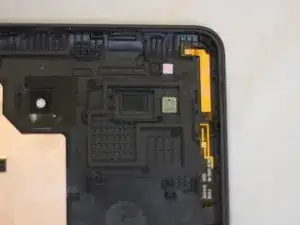

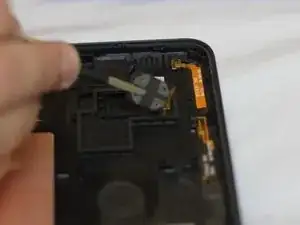

    • Once you've detached the film connecting the speaker to the case, use the tweezers to remove the speaker completely.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Dave Dorzback

Mitglied seit: 28/09/16

602 Reputation

2 Kommentare

Then what? How does this fix the problem? Can I tweek the speaker? Do I buy a new, more powerful speaker? What is your point in this post?

Janet -

@Janet Sorry I know you probably wont even see this, but its to help those who wish to replace a broken speaker, its not about implanting a 9” subwoofer. Sorry but sometimes the simplest of explanations will often answer your questions.

sannas30 -
