Samsung Galaxy Tab Pro 8.4 Charging Port Replacement

Geschrieben von: Jonathan Romine
  • Kommentare: 4
Samsung Galaxy Tab Pro 8.4 Charging Port Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

  1. fdXOqgRq3X1BkyXP

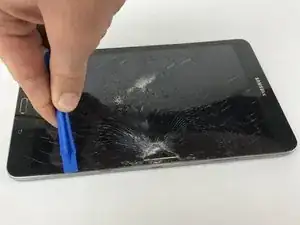

    • Begin by separating the back panel from the screen glass assembly using the plastic opening tool.

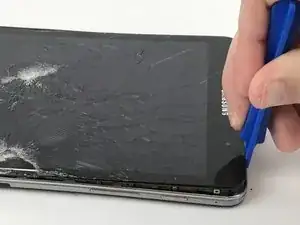

    • Insert the plastic opening tool between the edge of the glass screen and the metal frame around the device.

  2. GSFyXNlwBkdiOFOh
    GSFyXNlwBkdiOFOh
    qateXbgFkxTEpWlB

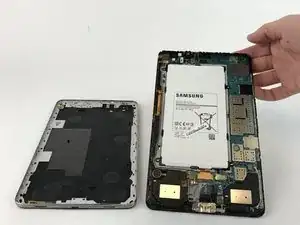

    • Continue around the entire device until the back panel is completely separated from the screen.

  3. TIMJXU1mZ2HHbUdN
    TIMJXU1mZ2HHbUdN
    tOcV1i5KW1SfgdtL

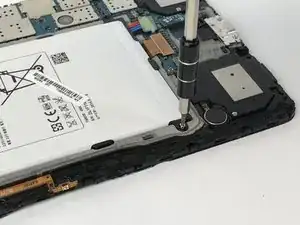

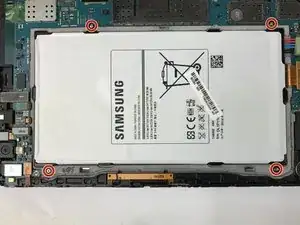

    • Remove the four 2.5mm Phillips #000 screws.

  4. PWScT5YOTlUHeW6l

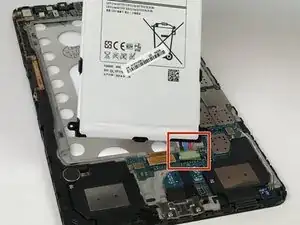

    • Gently pull up on the plastic tab that has red, blue and black wires that connects the battery to the motherboard.

  5. 5WoKvN1hNDjg2vNT

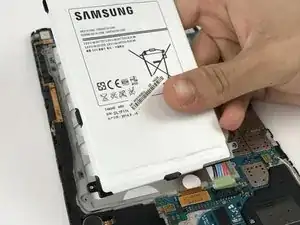

    • The battery should be completely disconnected and the new one can be installed.

    Just two things I’d like to add. In step 2, one can see where the bottom clips to the top with the mainboard, and it’s easier if one pries adjacent to those clips. Secondly, one shouldn’t tighten the screws for the battery too much, I tightened them till they were tight but ended up having to take it apart again and loosen them by around a turn or so. If they are too tight, they will warp the diffuser/reflector/light guide for the LCD panel and there’ll be brighter spots in the LCD screen. The screws originally have thread lock, so I guess if one isn’t confident the screws will stay in place it’s best to re-apply some, though as they are screwing into a plastic frame, the hope is that the plastic provides enough friction for the screw to remain in place.

    Christopher Chan -

  6. wJvoo6CNDXPNacR1
    wJvoo6CNDXPNacR1
    I2DrK5MScvyXbUrw

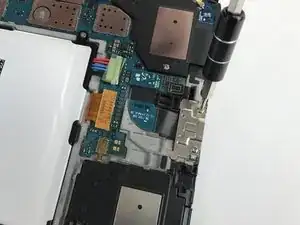

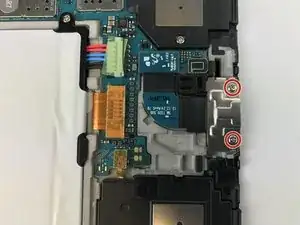

    • Remove the two 2.5mm Phillips #000 screws.

  7. bvxXESfFoHhVXXQ2
    bvxXESfFoHhVXXQ2
    VTnic2BSgQOa6iLc
    QfgtFJZjhBk53rr6

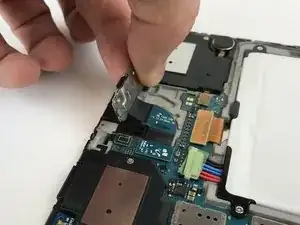

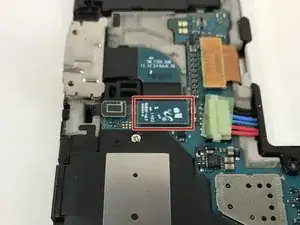

    • Gently pull up on tab that connects the charging port to the motherboard

Abschluss

To reassemble your device, follow these instructions in reverse order.
