Samsung Galaxy Tab S 8.4 Akku austauschen

Geschrieben von: Tara Fussell
  • Kommentare: 19
Samsung Galaxy Tab S 8.4 Akku austauschen

Schwierigkeitsgrad

Mittel

Schritte

5

Zeitaufwand

10 - 30 Minuten

Einleitung

Oft kann eine Batterie ihre Ladekapazität verlieren. Wenn sich dein Akku nicht auflädt oder dein Akku nur noch einige Stunden lang seine Funktion erfüllt, muss der er möglicherweise ausgetauscht werden. In dieser Anleitung erfährst du, wie du den Akku in deinem Gerät austauschen kannst.

  1. UgCSQDir2mIhGgCm
    UgCSQDir2mIhGgCm
    R2LMUYc64GDgQlFs

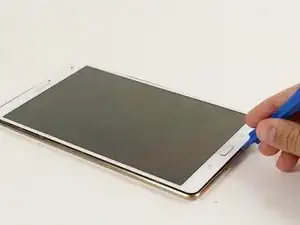

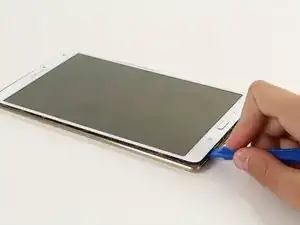

    • Setze das Kunststoff-Öffnungswerkzeug zwischen die Vorderseite des Displays und den Rand der hinteren Abdeckung des Geräts.

    • Bewege das Öffnungswerkzeug aus Kunststoff nach unten, bis sich zwischen dem Tablett und der hinteren Abdeckung ein Spalt bildet.

    Will a butter knife work?

    Team Diamond (DrDiamond53) -

    You could try a credit card, avoid metal tools.

    Isaac Pettis -

    The battery is still connected at this stage so, yes, avoid metal tools.

    Once the outer frame was mostly unclipped with the opening tool, I found the ifixit triangle plastic picks useful. As well as clips around the 4 edges there are maybe 4 more clips in the centre of the back cover that are a challenge.

    Make sure the display screen and logic boards and battery all come out in one bundle, just leaving a bare plastic back shell. Others have reported that if you separate the screen from the boards you’ll invariably break a ribbon cable and lose touch sensitivity.

    Michael Morjanoff -

  2. cYDNYBVBoydJbLQp

    • Schiebe das Kunststoff-Öffnungswerkzeug um den Rand des Geräts und heble vorsichtig den Bildschirm und die hintere Abdeckung auseinander.

    • Versuche, gleichmäßig von allen Seiten zu trennen, bis sich der Bildschirm vollständig vom Träger löst.

    • Wenn du die Abdeckung zum ersten Mal entfernst, ist es ziemlich schwierig, sie vom Tablet zu trennen.

  3. BIWIK2lNGotFJBKg

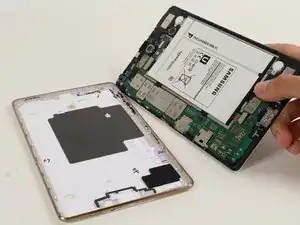

    • Entferne die hintere Abdeckung, wenn die gesamte Umrandung gelöst ist.

    I did some diy fixing because my tab-s came having issues. All battery connection related. Easy fix about 10 minutes but now the back cover won't sit flush and there's a large gap…idk what to do now it's infuriating there no broken tabs or connections

    Jason Carlson -

  4. R2wZsVLluZoIbQXM
    R2wZsVLluZoIbQXM
    QLjgiWsZcLuQ5Pbt

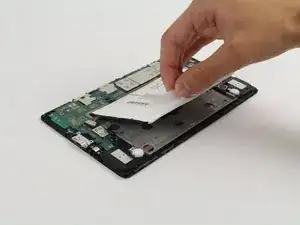

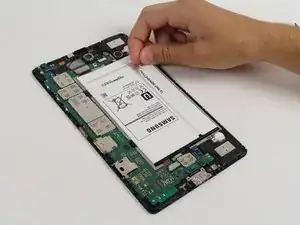

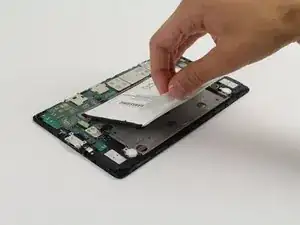

    • Der Akku ist normalerweise mit doppelseitigem Klebeband an den Seiten befestigt. Hebe den Akku heraus, indem du an der gefalteten weißen Lasche in der oberen rechten Ecke ziehst. Möglicherweise musst du erst den Kleber lösen, indem du mit einem dünnen und flachen Plastiköffnungswerkzeug unter den Kanten des Akkus entlangfährst.

    • Sei vorsichtig, wenn du den Akku herausnimmst, er ist immer noch mit dem Gerätes verbunden.

    there is adhesive under the battery that requires a fair bit of pressure to make the battery come out. Pulling on the corner of the battery pull tab is more effective than pulling halfway along and it did come out eventually. heating may help but heating a battery is never a good idea heat is going to take quite a while go get through from the screen side as there are many layers to get through before you get to the battery compartment. best bet make sure it is not cold then pull from the corner carefully

    LidsterIT -

    Any way to remove the battery without lifting the tab?

    Don Lim -

    Original battery was a very snug fit in its space and the triangle pick tool helped. The replacement battery was 2mm narrower so much easier. The pull tab is strong, and needs to be strong.

    Michael Morjanoff -

  5. apmRvE2EO4AFcjAD
    apmRvE2EO4AFcjAD
    ci5Z2lORutQqIQYT

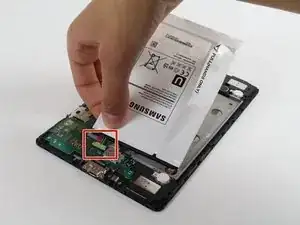

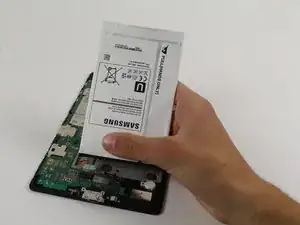

    • Hebe vorsichtig den hellgrünen Stecker in der Nähe der linken unteren Ecke des Akkus hoch. Er ist mit roten, grünen und schwarzen Drähten mit dem Akku verbunden.

    • Ziehe nicht an den Kabeln, um den Stecker zu lösen. Wenn sich die Verbindung nicht leicht lösen lässt, schiebe ein Plastikwerkzeug zwischen den weißen Stecker und die Platine, um diesen von der Platine anzuheben.

    Lifting the old connector out was easy, fitting the new one seemed to need very careful alignment.

    Michael Morjanoff -

Abschluss

Um das Gerät wieder zusammenzusetzten, folge diesen Anweisungen in umgekehrter Reihenfolge.
