Samsung Galaxy Tab S2 9.7 AT&T Camera Replacement

Apply the heat gun around the edges of the tablet to melt the adhesive glue.

Apply the suction to the bottom or top right corner.

Use the plastic opening tool at several points around the screen while the suction is being applied to pop the screen out.

Once the screen is detached, open the tablet like a book.

Using the precision tweezers, remove the silver tape that is holding the orange ribbon cable connecting the two pieces.

Using the precision tweezers, remove the small press-fit connector from the body of the tablet.

Using the Philips #000 screwdriver, remove the seventeen 2.74 mm screws around the edges.

Remove the two 2.74 mm black screws in the middle of the tablet with the Philips #000 screwdriver.

Take the plastic opening tool around the tablet to remove the motherboard from the device.

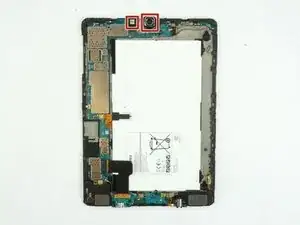

Locate the two cameras at the top of the motherboard.

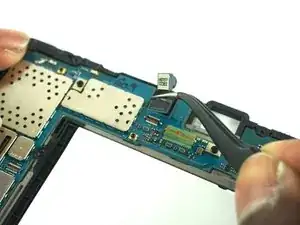

To remove the bigger, back-facing camera, use the precision tweezers to slide the silver ribbon cable out of the ZIF connector.

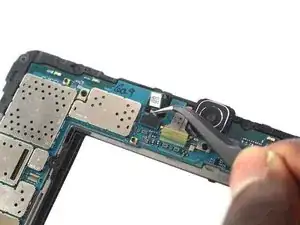

To remove the smaller, front-facing camera, use the precision tweezers to disconnect the press-fit connector.

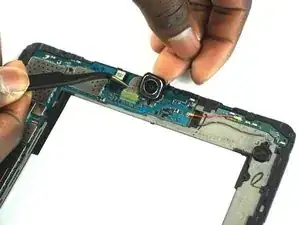

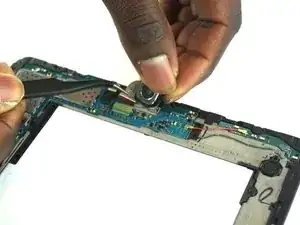

Carefully detach the camera using the precision tweezers.
