Samsung Galaxy Tab S2 9.7 SM-T813 Battery Replacement

Geschrieben von: Nash Elder
  • Kommentare: 12
Samsung Galaxy Tab S2 9.7 SM-T813 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

The battery is essential to the function of your device. Replace the life of your device by following these simple steps.

  1. HfhuJBssEgcLnpLI

    • Heat the iOpeners in a microwave for 1-2 minutes.

    • The iOpeners will be hot. Use caution and hold the tabs on the ends.

    • Place heated iOpeners on screen edges to heat the adhesive.

    • For more detailed instructions on how to use the iOpeners, please refer to the iOpener Instructions.

    Do not remove the screen if you’re replacing the battery, much easier to heat up and pry off the back. Plus no chance of damaging your screen.

    Joseph Watson -

  2. RcKMgWYx6rNVuNH2

    • Separate the screen assembly from the back by wedging the picks between the two components.

    • Slide the picks along the edge and leave them holding the device open all around the edges.

  3. lTFUWXehDp1oSmxU

    • Place suctioning device near the corner of the screen and gently lift up to create a gap between the front panel assembly and the back.

    • Insert the picks to hold the two components apart once a gap is created.

    I irreversibly damaged screen by following this guide. There are connector tapes at the edge of the screen and one of them was damaged by inserting and sliding the picks when lifting the screen. Too bad that author didn't mention to be careful when dealing with edges

    Ajgorr -

    Where can i get one of these screens for the best price. My mother is a retired senior and happened to drop sumthng on her tablet. I wld like to have it repaired as she just bought it for her xmas present a cple months ago. Now we see a new screen is around 300 $ but does anyone know if other screens from older samsung tablets that are also 9.7 “ will work or whr is cheapest place to find one ?

    Christine Bowers -

  4. aLIiOIXJj2EWbRTY

    • Once all edges have been disconnected, carefully lift the screen off by pulling one side up.

    • Be careful not to cut yourself. Any broken glass from the screen will be sharp.

  5. Zr3BWmR4Ht6cnH3J

    • Using the tweezers, gently peel up on the silver tape covering the connector.

  6. 2LINZDD2RC46KImP

    • Use the plastic opening tool to get under the connector piece. This will allow you to remove the front panel assembly from the rest of the device.

  7. KaSEhaxPrNprP6xY

    • Detach the connecter from the inside of the device.

    • Lift the screen to separate the front panel assembly from the rest of the device.

  8. XbglqCMfGXFwBVRr
    XbglqCMfGXFwBVRr
    adYHHyYTVZyw4nVI

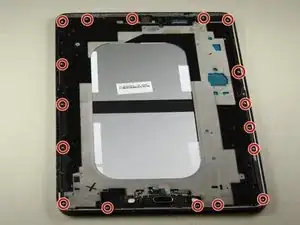

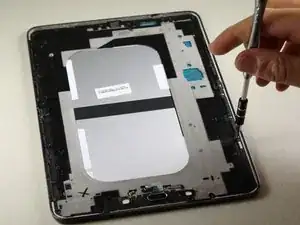

    • Remove the 17 silver 3.0 mm Phillips head screws located around the edge of the device using the screwdriver.

    • For additional information on how to remove screws, please refer to Screwdriver Best Practices.

  9. DdP4FJmsaedAvobs
    DdP4FJmsaedAvobs
    3Y4RYMiLDrGWuXpS

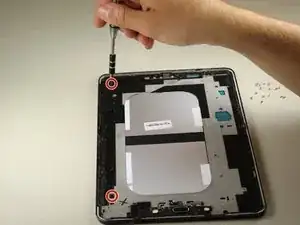

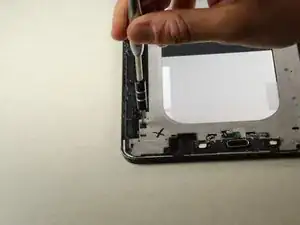

    • Remove the 2 centrally-located black 3.0 mm Phillips head screws using the screwdriver.

  10. bRXIuyx2OAAVGZFU
    bRXIuyx2OAAVGZFU
    xRFYoOup2N51fkUd

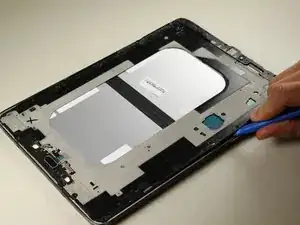

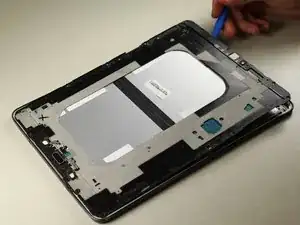

    • Use the plastic opening tools to gently separate the middle panel from the rest of the device.

    • Move the tool around under the edges until you can remove the panel by hand.

    • Popping/cracking noises are completely normal. These are the sounds of the panel separating from the rest of the device.

    Make sure the SIM trays are removed first. Otherwise the connector comes off the board.

    Mikey -

  11. WFFUMuAOcbfGHF2r
    WFFUMuAOcbfGHF2r
    2QCIEldcuInA1DOV
    3FgZOMPXR2mibhZ4

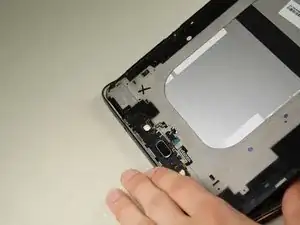

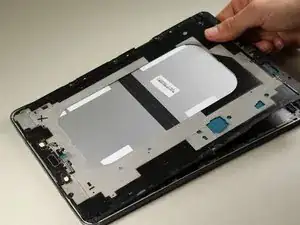

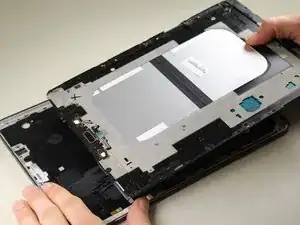

    • Lift up the central panel starting from one corner to separate it from the rest of the device.

    • Pull towards the top of the device as you lift out to ensure that the charging port connection is not damaged.

  12. 4MJb1GuVkYWsFL6A
    4MJb1GuVkYWsFL6A
    JgpFHofyXUVLpEDS

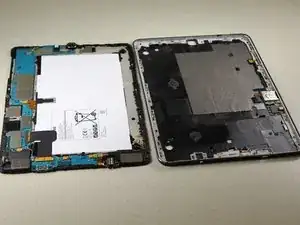

    • Position the central panel so the battery logo is facing up.

    • Gently place the larger plastic opening tool under the ZIF connector on the bottom left of the device.

    • Lift up to detach this connector from the panel.

  13. 2FEKuwpAtcgygYoY
    2FEKuwpAtcgygYoY
    6QUQbflp4SeKpBEF
    RbvcDBJodSVTHUKC

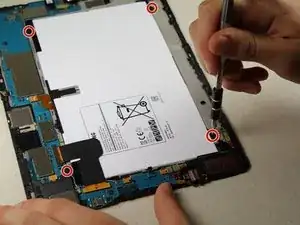

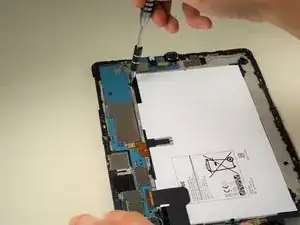

    • Remove the 4 black 3.0 mm Phillips head screws from the corners of the battery housing using the screwdriver.

  14. 3IK66dTSRsCE5SVc
    3IK66dTSRsCE5SVc
    ePRY2x4DRD2RZdQJ

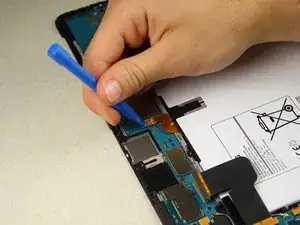

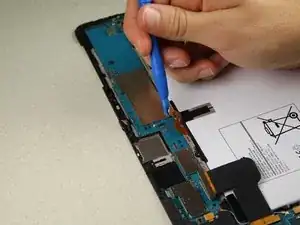

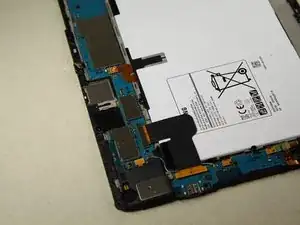

    • Gently place the larger plastic opening tool under the cable connector and lift up to detach the connector from the panel.

  15. mrKwojdptB2mGn6Z
    mrKwojdptB2mGn6Z
    j1ARDGOdxAfRxFal
    wDcIkVr6hmDRIThJ

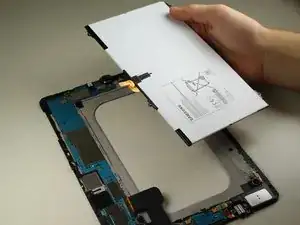

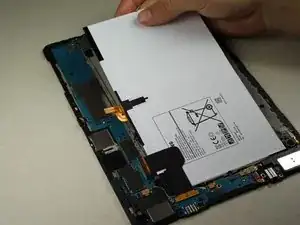

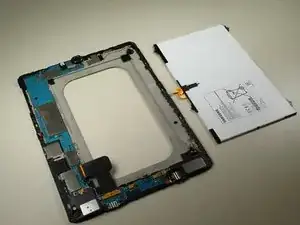

    • Gently lift the battery up from one corner using your hands to remove it from the rest of the central panel.

    ??? Why not just removing the back cover? You don’t need a to remove the screen to change the battery.

    Krisztian Sinka -

Abschluss

To reassemble your device, follow these instructions in reverse order.
