Einleitung

Replacement of the motherboard requires removal of a few other components first. See the prerequisite guides before attempting just the motherboard.

  1. HfhuJBssEgcLnpLI
    • Heat the iOpeners in a microwave for 1-2 minutes.

    • The iOpeners will be hot. Use caution and hold the tabs on the ends.

    • Place heated iOpeners on screen edges to heat the adhesive.

    • For more detailed instructions on how to use the iOpeners, please refer to the iOpener Instructions.

    Do not remove the screen if you’re replacing the battery, much easier to heat up and pry off the back. Plus no chance of damaging your screen.

    Joseph Watson -

  2. RcKMgWYx6rNVuNH2
    • Separate the screen assembly from the back by wedging the picks between the two components.

    • Slide the picks along the edge and leave them holding the device open all around the edges.

  3. lTFUWXehDp1oSmxU
    • Place suctioning device near the corner of the screen and gently lift up to create a gap between the front panel assembly and the back.

    • Insert the picks to hold the two components apart once a gap is created.

    I irreversibly damaged screen by following this guide. There are connector tapes at the edge of the screen and one of them was damaged by inserting and sliding the picks when lifting the screen. Too bad that author didn't mention to be careful when dealing with edges

    Ajgorr -

    Where can i get one of these screens for the best price. My mother is a retired senior and happened to drop sumthng on her tablet. I wld like to have it repaired as she just bought it for her xmas present a cple months ago. Now we see a new screen is around 300 $ but does anyone know if other screens from older samsung tablets that are also 9.7 “ will work or whr is cheapest place to find one ?

    Christine Bowers -

  4. aLIiOIXJj2EWbRTY
    • Once all edges have been disconnected, carefully lift the screen off by pulling one side up.

    • Be careful not to cut yourself. Any broken glass from the screen will be sharp.

  5. Zr3BWmR4Ht6cnH3J
    • Using the tweezers, gently peel up on the silver tape covering the connector.

  6. 2LINZDD2RC46KImP
    • Use the plastic opening tool to get under the connector piece. This will allow you to remove the front panel assembly from the rest of the device.

  7. KaSEhaxPrNprP6xY
    • Detach the connecter from the inside of the device.

    • Lift the screen to separate the front panel assembly from the rest of the device.

  8. XbglqCMfGXFwBVRr
    XbglqCMfGXFwBVRr
    adYHHyYTVZyw4nVI
    • Remove the 17 silver 3.0 mm Phillips head screws located around the edge of the device using the screwdriver.

    • For additional information on how to remove screws, please refer to Screwdriver Best Practices.

  9. DdP4FJmsaedAvobs
    DdP4FJmsaedAvobs
    3Y4RYMiLDrGWuXpS
    • Remove the 2 centrally-located black 3.0 mm Phillips head screws using the screwdriver.

  10. bRXIuyx2OAAVGZFU
    bRXIuyx2OAAVGZFU
    xRFYoOup2N51fkUd
    • Use the plastic opening tools to gently separate the middle panel from the rest of the device.

    • Move the tool around under the edges until you can remove the panel by hand.

    • Popping/cracking noises are completely normal. These are the sounds of the panel separating from the rest of the device.

    Make sure the SIM trays are removed first. Otherwise the connector comes off the board.

    Mikey -

  11. WFFUMuAOcbfGHF2r
    WFFUMuAOcbfGHF2r
    2QCIEldcuInA1DOV
    3FgZOMPXR2mibhZ4
    • Lift up the central panel starting from one corner to separate it from the rest of the device.

    • Pull towards the top of the device as you lift out to ensure that the charging port connection is not damaged.

  12. mZBSN3PdSHnw5wRE
    mZBSN3PdSHnw5wRE
    YS5wjMgtkb5SCrkG
    r12WQJw1OTEmKBco

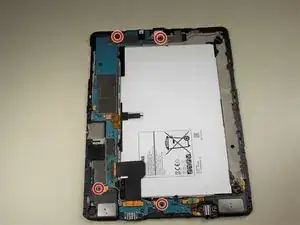

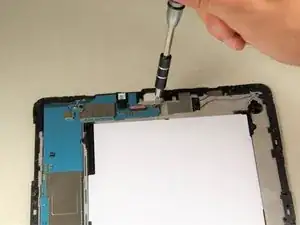

    • Using the screwdriver, remove the 4 black 3.0 mm Phillips head screws located on the upper and lower motherboard.

  13. TleaSCsk2Dl2IHBw

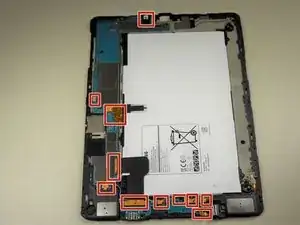

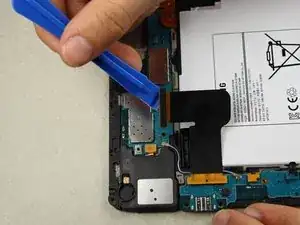

    • Using the plastic opening tools unlock the 11 connectors that must be undone before the motherboard can be removed.

  14. kUnQ4hSPBGMbnNPy
    kUnQ4hSPBGMbnNPy
    6fqZUkPc2JQukLsZ
    EbrJrlOhpDdFVVYt

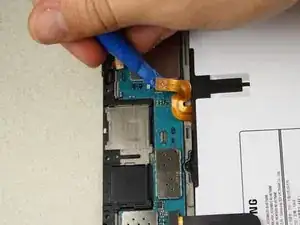

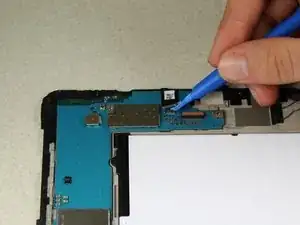

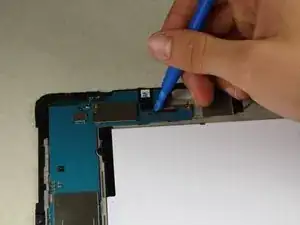

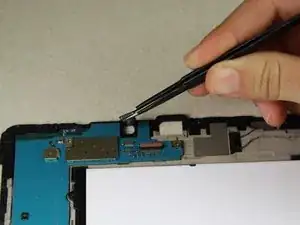

    • Using the plastic opening tool, continue disconnecting cables on upper motherboard.

  15. foxXPNjqoGs6vNjP
    foxXPNjqoGs6vNjP
    Hx1HNkko66NQWSLO
    YCnUQPdACQQXPoJd

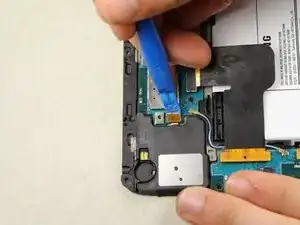

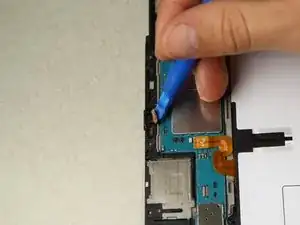

    • Continue disconnecting along the left side of the device.

  16. yYYeSI3qa4m4xnt4
    yYYeSI3qa4m4xnt4
    URkc5mXAeIjMPxVV
    WFvKMXBOHRpUYtZX

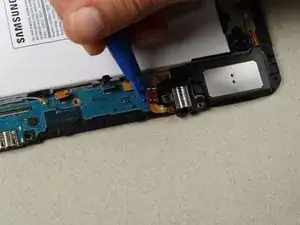

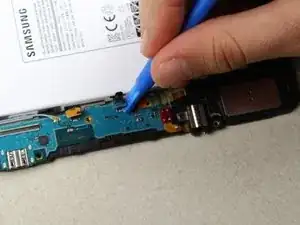

    • Continue removing cables on the lower motherboard.

  17. mLDwiTneELNGCRC4

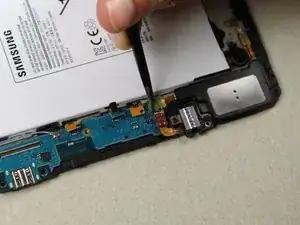

    • Using tweezers, remove the green plastic film to reach the last cable.

  18. 2RVECL54gK2Rf1VG
    2RVECL54gK2Rf1VG
    upGEbRtIvxq2Vdar
    BS1oy4t5VR6lq1Kl

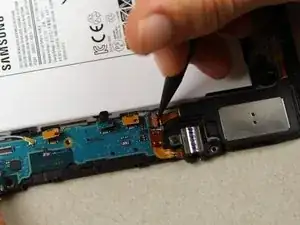

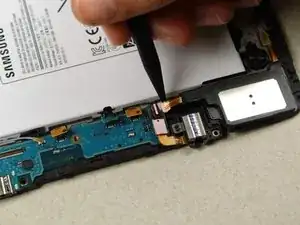

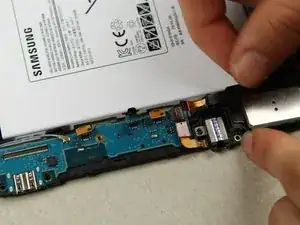

    • Carefully lift the orange flap using the black spudger. Then disconnect the cable from the motherboard.

  19. txwdVUTJwqWIalfF
    txwdVUTJwqWIalfF
    Mbu24u3MbSJVfyqb
    eurFlPAJjTsYNMn4

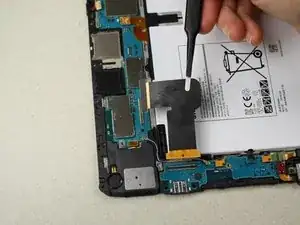

    • Using the tweezers, gently pull the cable off of the motherboard.

  20. qsCAA5HifUttFAWB
    qsCAA5HifUttFAWB
    ibQCMIjujiqM63NT

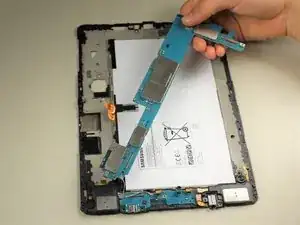

    • Carefully lift the top portion of the motherboard off of the back panel with your hands.

  21. ll1VUpNTwtUJ3BXK
    ll1VUpNTwtUJ3BXK
    px2CXPy3dGKqIvgc
    pFoEwPtROe43LoSh

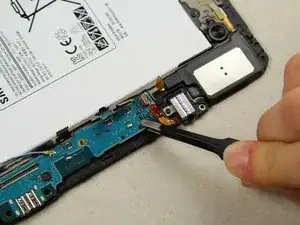

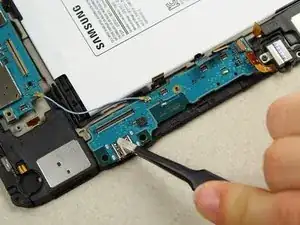

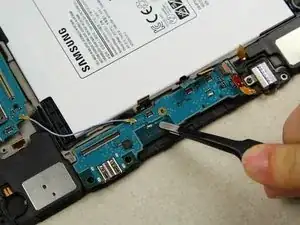

    • Using the tweezers, wiggle under the lower motherboard to remove adhesive.

    • Carefully grab the adhesives with the tweezers and lift up.

  22. eneapC24XtPhYfRt
    eneapC24XtPhYfRt
    A5PqtxHLX2NEvTdD

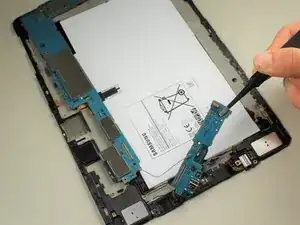

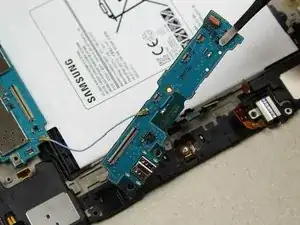

    • Gently lift up the lower motherboard.

    • Keep the two portions of the motherboard together. If the connecting cable is damaged, it could further ruin the condition of the board.

  23. OUeEMKJkx2PxnWUY

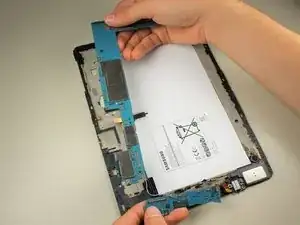

    • Remove both pieces of the motherboard carefully from the back panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
