Samsung Galaxy Tab S2 9.7 Verizon Tablet Front-Facing Camera Replacement

Geschrieben von: Divya Prabakaran
  • Kommentare: 1
Samsung Galaxy Tab S2 9.7 Verizon Tablet Front-Facing Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

25 - 30 Minuten

Einleitung

If your camera has been damaged or not working properly, use this guide to replace your front-facing camera.

  1. DB2DIgdDcOZyPG1b

    • Turn off the tablet before disassembly.

    • Heat up an iOpener for 30 seconds and place on all four seams of the screen. A heat gun can be used as well.

  2. iO3CSUcFKnjqNPgw
    iO3CSUcFKnjqNPgw
    C2gsxosqQVPRwxGd

    • The glue is now melted, so using the metal spudger shown, pry open all sides of the tablet.

    • When prying open near the home and touch screen buttons, use a suction cup.

    • Do not stick the metal spudger past these buttons as this may damage your device.

  3. SJBGLAPXqVRmQk6s
    SJBGLAPXqVRmQk6s
    cQi1TNsxF1GdnQLs

    • Carefully lift up the screen.

    • There is a ribbon cable attached. Lifting the screen too quickly can damage the cable.

  4. fA4vBLYQLOaGUjth
    fA4vBLYQLOaGUjth
    i1OmVy2rGbTpTVDI
    p4mRSQCUFZuYsT2a

    • Remove the ribbon cable using the Metal Spudger.

    • The ribbon may be taped underneath to the grey frame. Gently lift the ribbon to untape it.

  5. LPWVnKZShlrYhnmA
    LPWVnKZShlrYhnmA
    IaVfDMRVAuZt6SZL

    • Remove all seventeen 3 mm screws using a PH000 Phillips screwdriver.

    Be Careful, there are 2 more black screws which hold the cover to remove on the top section of this pic.

    Bo Zhang -

  6. rbYLZsS3qFoEP35s
    rbYLZsS3qFoEP35s
    VssmboJyec3mvUJZ
    txZACo1sqyRlBP6r

    • Lift the black frame using the two Metal Spudgers shown.

    • On the third picture, there is a Sim Card component that is connected to the frame and back cover. As you lift up the frame, it'll detach. This is normal.

  7. u1YAVGvNAixCwXbU

    • Once lifted, flip the grey frame over.

    • This component connects to the sim card.

    • Remember to click this component back into place when reassembling the tablet.

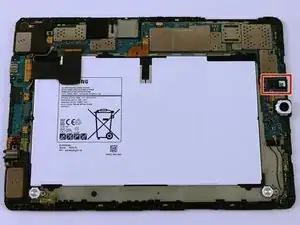

  8. JYy4qkp1nHI4XffE

    • This is where the front-facing camera is located on the frame

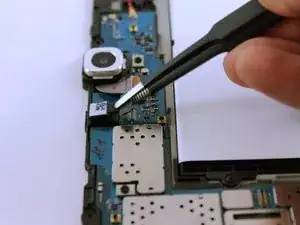

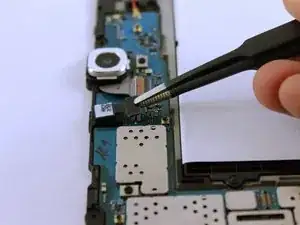

  9. BbDt2CpNBSCeiKHF
    BbDt2CpNBSCeiKHF
    i5sROqGIvBI123Q2
    VgZ3LdME1DvBIN52

    • Using the Blunt ESD Tweezer, disconnect the front-facing camera

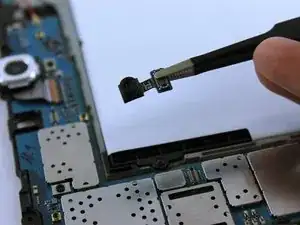

    • Lift the camera

Abschluss

To reassemble your device, follow these instructions in reverse order.
