Samsung Galaxy Tab S2 9.7 Verizon Tablet Home Button Replacement

Geschrieben von: Divya Prabakaran
  • Kommentare: 1
Samsung Galaxy Tab S2 9.7 Verizon Tablet Home Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

20 - 30 Minuten

Einleitung

If your home button is no longer functioning properly, it may have become worn or gotten stuck over time, this guide can help you replace it.

  1. DB2DIgdDcOZyPG1b

    • Turn off the tablet before disassembly.

    • Heat up an iOpener for 30 seconds and place on all four seams of the screen. A heat gun can be used as well.

  2. iO3CSUcFKnjqNPgw
    iO3CSUcFKnjqNPgw
    C2gsxosqQVPRwxGd

    • The glue is now melted, so using the metal spudger shown, pry open all sides of the tablet.

    • When prying open near the home and touch screen buttons, use a suction cup.

    • Do not stick the metal spudger past these buttons as this may damage your device.

  3. SJBGLAPXqVRmQk6s
    SJBGLAPXqVRmQk6s
    cQi1TNsxF1GdnQLs

    • Carefully lift up the screen.

    • There is a ribbon cable attached. Lifting the screen too quickly can damage the cable.

  4. fA4vBLYQLOaGUjth
    fA4vBLYQLOaGUjth
    i1OmVy2rGbTpTVDI
    p4mRSQCUFZuYsT2a

    • Remove the ribbon cable using the Metal Spudger.

    • The ribbon may be taped underneath to the grey frame. Gently lift the ribbon to untape it.

  5. LPWVnKZShlrYhnmA
    LPWVnKZShlrYhnmA
    IaVfDMRVAuZt6SZL

    • Remove all seventeen 3 mm screws using a PH000 Phillips screwdriver.

    Be Careful, there are 2 more black screws which hold the cover to remove on the top section of this pic.

    Bo Zhang -

  6. rbYLZsS3qFoEP35s
    rbYLZsS3qFoEP35s
    VssmboJyec3mvUJZ
    txZACo1sqyRlBP6r

    • Lift the black frame using the two Metal Spudgers shown.

    • On the third picture, there is a Sim Card component that is connected to the frame and back cover. As you lift up the frame, it'll detach. This is normal.

  7. u1YAVGvNAixCwXbU

    • Once lifted, flip the grey frame over.

    • This component connects to the sim card.

    • Remember to click this component back into place when reassembling the tablet.

  8. ek4HC6ruNXOvLUWa
    ek4HC6ruNXOvLUWa
    HujsWJovE4v5s2pS
    LAGrYsCnotKpLNJJ

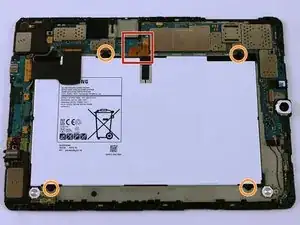

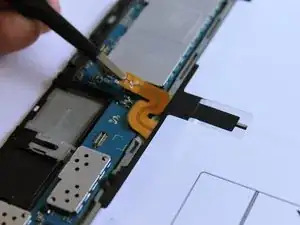

    • Unclip the orange ribbon cable located above the battery using the Blunt ESD Tweezer.

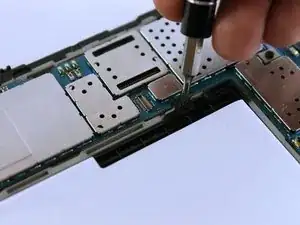

    • Remove the four black 3mm screws using a PH000 Phillips screwdriver.

  9. AciZuLZlGnQh2NOS

    • Hold the frame and pop the battery off from the other side.

  10. SbhTSGEVZW1R3Jil
    SbhTSGEVZW1R3Jil
    AhyZx4tcXtcBjyqp
    2C1hRoD5YKAixQTd

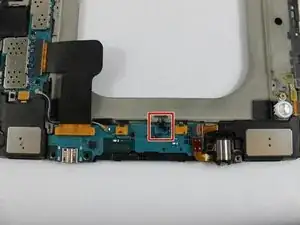

    • This is where the ribbon cable for the home button is located.

  11. IEcZDoIQLjvyhpOD

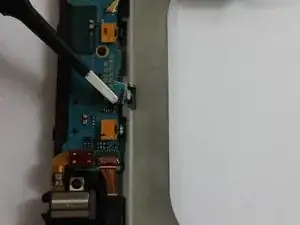

    • Unclip the blue ribbon cable using the Blunt ESD Tweezer.

  12. YsTJjdYSSKJQMvjp
    YsTJjdYSSKJQMvjp
    LAVHidMXexL4cWGn
    BjaAJjaqUPLSMVRX

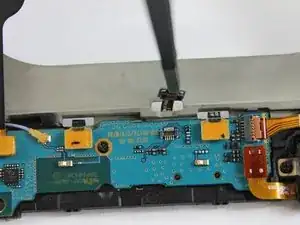

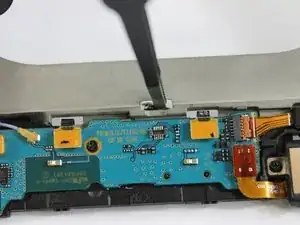

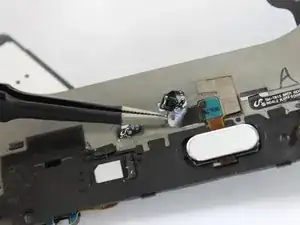

    • Carefully push the cable through the hole to the other side of the frame.

  13. 6AXxaxXQQvWbkaaX

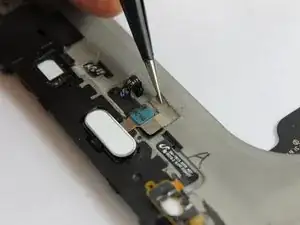

    • Using the pointed ESD Tweezer, lift up the silver tape.

  14. AUQfwSUkOxmmyBpu
    AUQfwSUkOxmmyBpu
    GICesrrOFdgZyJKd
    d3TWlCmiRTLLOfvH

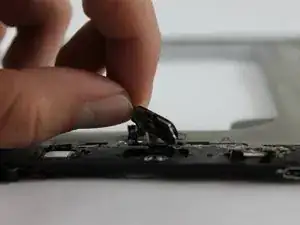

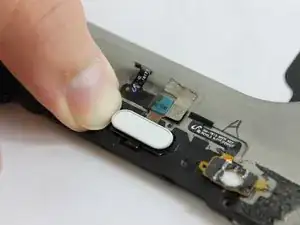

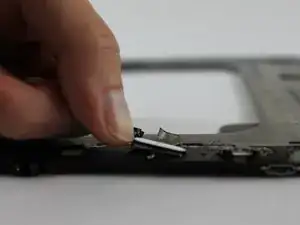

    • Using your thumb, push the home button to the right and lift up to dislodge it.

  15. mafHyHb24OoYCIWO
    mafHyHb24OoYCIWO
    IVLEjYBbSmBlA5yq

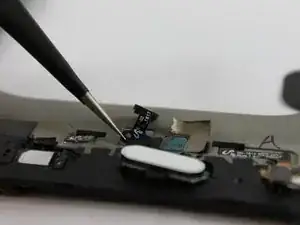

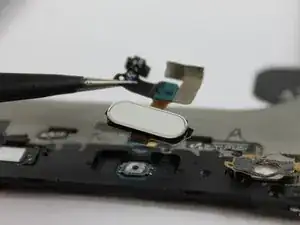

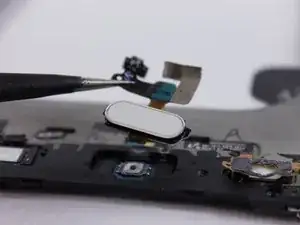

    • Peel the ribbon cable off carefully, it may be glued to the grey frame.

    • Lift the home button.

Abschluss

To reassemble your device, follow these instructions in reverse order.
