Samsung Galaxy TabPro S Rear Facing Camera Replacement

Geschrieben von: Jyotsna Gone
  • Kommentare: 0
Samsung Galaxy TabPro S Rear Facing Camera Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 - 7 Minuten

Einleitung

Is your tablet not able to take photos, videos, or adjust screen brightness by itself?

Then maybe its time to replace your tablet's camera.

This guide will give you step by step instructions on how to replace your tablet's camera.

  1. Wdl6dRffwAEsP4Gl

    • Place the device face down on a flat work surface.

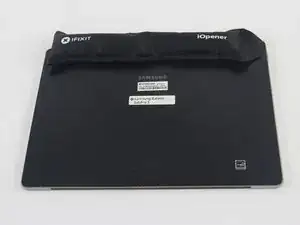

  2. MUwLWyiesBJJHROA
    MUwLWyiesBJJHROA
    EHVJJJWLukubACkS

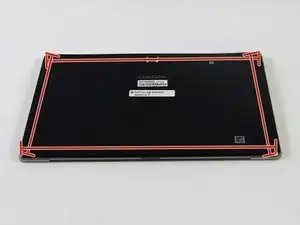

    • Heat the iOpener in the microwave for 30 seconds. Then place it on each side for 20 seconds in order to loosen the adhesive sealing on the device.

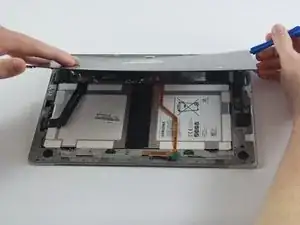

  3. qJX1BPuDYgdtk4Ey
    qJX1BPuDYgdtk4Ey
    KKceIZW2bQZZ5aWU
    IUSqwWZO5DVmQdkw

    • Using the plastic spudger, open up the back of the device.

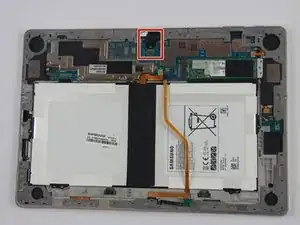

  4. oDKhjVYTZNeILBuw

    • Locate the camera and its corresponding connecting port.

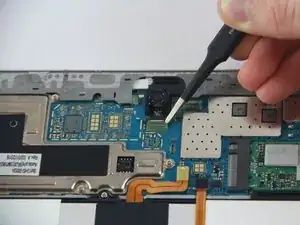

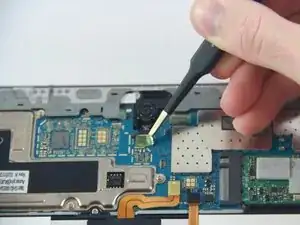

  5. tyoD5M1ZRAT12VPL
    tyoD5M1ZRAT12VPL
    KGDKN4GTtViHarHF
    DBdMvsClZZBpT2Dr

    • Using tweezers carefully peel off the sticker.

  6. kjOQsutJpBZYB4G4
    kjOQsutJpBZYB4G4
    6HuSpEbJnr263xPG

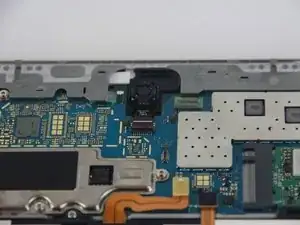

    • Using the black nylon spudger, flip the top half of the connecting port downward until you hear a click.

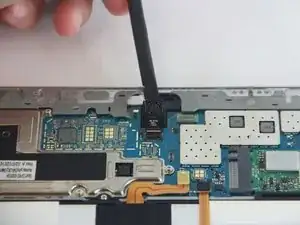

  7. uLvhFXVMrxKQVJ24

    • Proceed to lift up the camera out of its resting position.

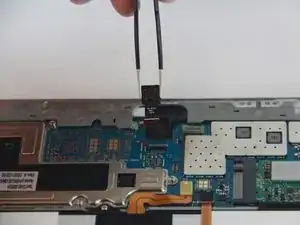

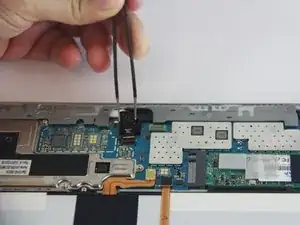

  8. IE66WIyWF6pjfW2t
    IE66WIyWF6pjfW2t
    afIQFUIFoiUqN4Nd

    • Simply pull the camera parallel to the device out of its connecting port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
