The motherboard controls a majority of the functions on your phone. Go ahead and dive into this guide for detailed steps on how to remove the motherboard on your device.
-
-

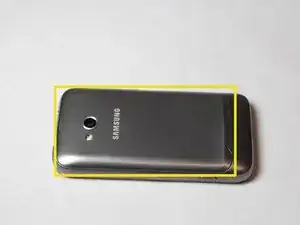

Place phone face down. Ensure the side with the display screen is not facing you.
-

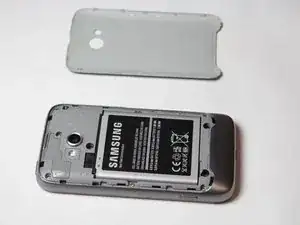

Locate battery door and slide open.
-

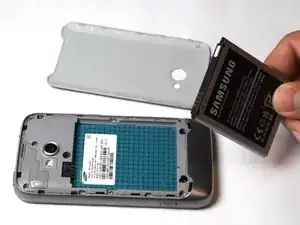

Remove battery.
-
-
-

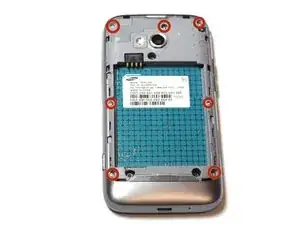

Remove the 7 Phillips 3.93 mm labeled screws by using the Phillips #00 Precision Screwdriver.
-
-
-

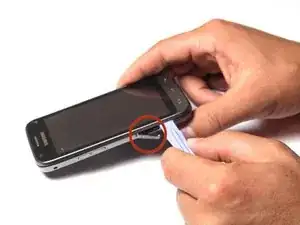

Use the plastic opening tool to pry open the back cover.
-
Insert the tool into the SD card slot and pry around the entire phone.
-
-
-

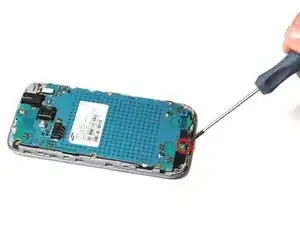

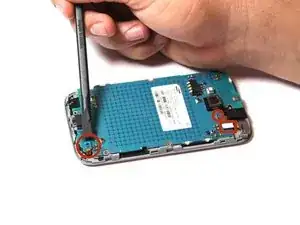

Carefully disconnect 3 ribbons at the shown location. To remove, place tool under the ribbon and pull slowly to avoid tearing.
-
-
-

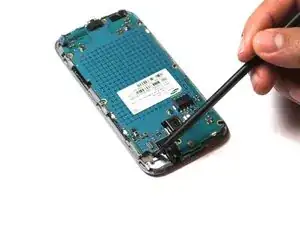

Pull the motherboard back and out to the left. Make sure the motherboard is faced straight up, as shown in the photo.
-

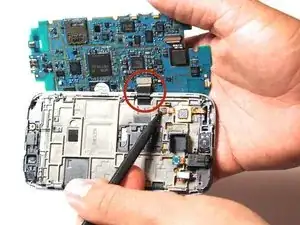

Place your tool under the labeled area and pull gently to detach the ribbon cable from the motherboard.
-

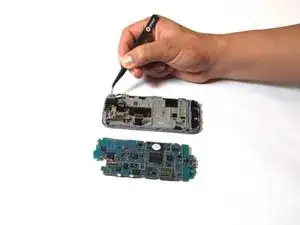

At this point the motherboard should be completely detached from the rest of the phone.
-
To reassemble your device, follow these instructions in reverse order.
