If the trackpad on your Samsung Gear VR headset is not responding to touch, use this guide to replace the faulty trackpad. For this guide, you will need a Phillips #000 screwdriver, iFixit opening tool, and metal spudger.
-
-
Push the switch on the right-hand side of the device to separate the cover from the main body.
-
Pull the cover away from the main device.
-
-
-
Remove the six 5mm Phillips #000 screws to detach the front phone mount.
-
Lift the front phone mount up and to the left.
-
-
-
Remove the four 5mm Phillips #000 screws that secure the plate on the left side of the headset.
-
Pull the plate away from the motherboard gently.
-
-
-
Use the iFixit opening tool to remove the pop connector holding the wire harness to the motherboard.
-
-
-
Remove the rest of the pop connectors on the motherboard using the iFixit opening tool.
-
Pry at the top of the motherboard with the iFixit opening tool to remove the motherboard.
-
-
-
Remove the eight 5mm Phillips #000 screws on the inner mask.
-
Gently separate the inner mask from the headset by pulling the mask from the inner sides of the lens sockets.
-
-
-

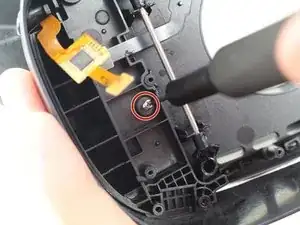

Remove the one 5mm Phillips #000 screw to detach the trackpad from the headset.
-
Pry the trackpad loose from the headset using the spudger.
-
To reassemble your device, follow these instructions in reverse order.
