Samsung Gear VR with Controller Inner Mask Replacement

Geschrieben von: Harumi Hokari
  • Kommentare: 0
Samsung Gear VR with Controller Inner Mask Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 Minuten

Einleitung

This guide is a prerequisite guide used for accessing the lenses and focus wheel.

  1. QW52Hjm6ocOdJv1M
    QW52Hjm6ocOdJv1M
    wScPr6xDm4BkFLfg
    caiuXCNnDi1nOdjA

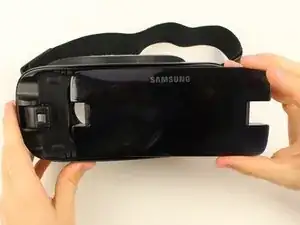

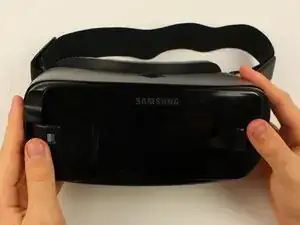

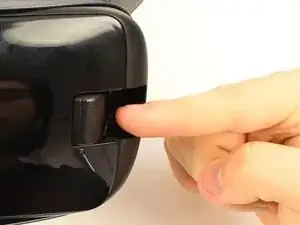

    • Push the switch on the right-hand side of the device to separate the cover from the main body.

    • Pull the cover away from the main device.

  2. l2sSFuEYcLbgnDiT
    l2sSFuEYcLbgnDiT
    fLsCZ6VHqDf2eynh
    OYCN6tlXVMD1W1TI

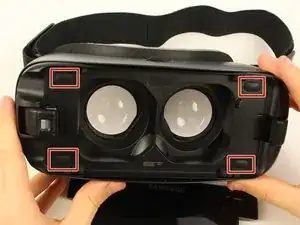

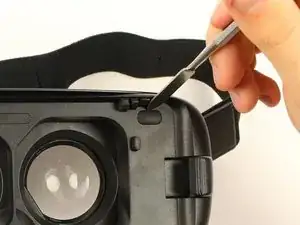

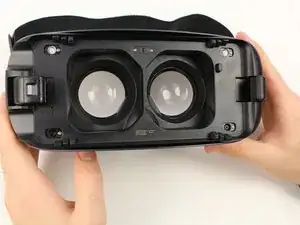

    • Remove the four corner screw covers with a metal spudger.

    • The screw covers fly off when removed, so make sure to keep track of them.

  3. VhPDGNwFd1bXpPKt
    VhPDGNwFd1bXpPKt
    GbYHHUMREDZIJBZl
    V4vEdNB5IbkOXUSL

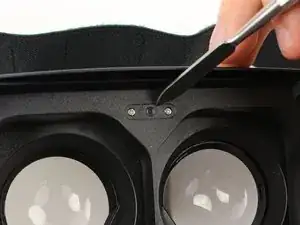

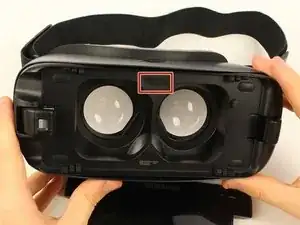

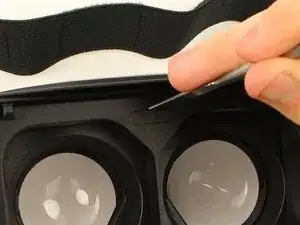

    • Use a metal spudger to remove the screw cover centered at the top.

  4. MhqHsY1PA52QqmIk
    MhqHsY1PA52QqmIk
    QoXG2wPmuJn4gOaL
    tL3NDbfAFwsrQTk5

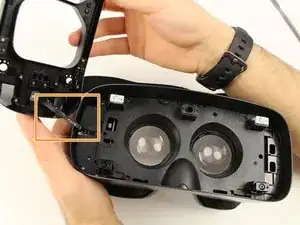

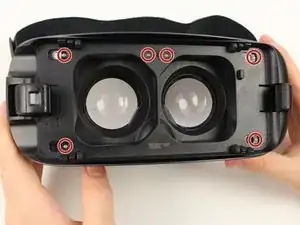

    • Remove the six 5mm Phillips #000 screws to detach the front phone mount.

    • Lift the front phone mount up and to the left.

    • Remove the front phone mount carefully because there is a wire harness on the left side of the headset.

  5. MMyiIrZCOsDr5b2I
    MMyiIrZCOsDr5b2I
    1Nllbm1rYNJLAqwp

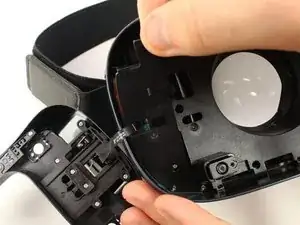

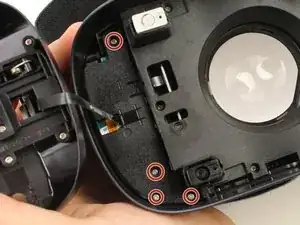

    • Remove the four 5mm Phillips #000 screws that secure the plate on the left side of the headset.

    • Pull the plate away from the motherboard gently.

  6. Z6WjL1WMjRCq5jY5
    Z6WjL1WMjRCq5jY5
    AwDEDH1UmeATJyBr

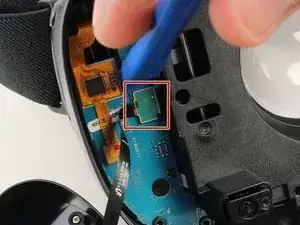

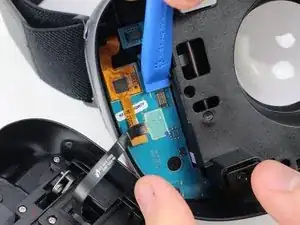

    • Use the iFixit opening tool to remove the pop connector holding the wire harness to the motherboard.

    • You can now completely remove the front phone mount from the headset.

  7. jPF4dSipYXmJZ1Tc
    jPF4dSipYXmJZ1Tc
    wdanLAskdbNYgS2P
    awa5ZqcA2khlGCMF

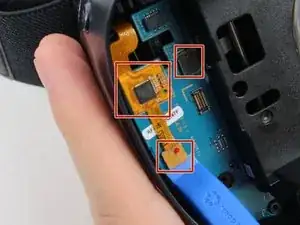

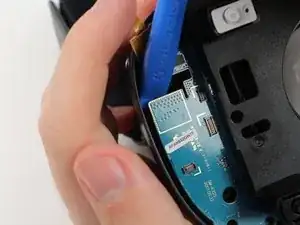

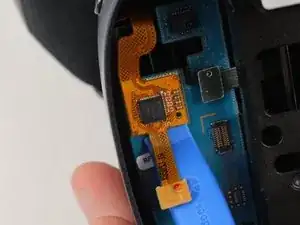

    • Remove the rest of the pop connectors on the motherboard using the iFixit opening tool.

    • Pry at the top of the motherboard with the iFixit opening tool to remove the motherboard.

    • The largest pop connector may require more effort to remove.

    • Make sure that nothing is connected to the motherboard before you pull it out.

  8. AXjPtagQSGsICmGM
    AXjPtagQSGsICmGM
    6PhDE32MHpDlXyN4
    4flWguxhhbBLICZk

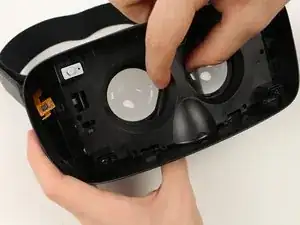

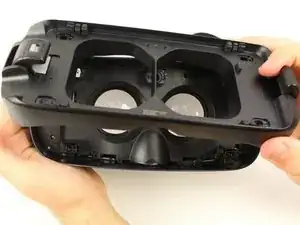

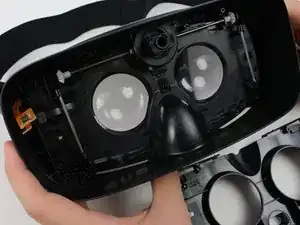

    • Remove the eight 5mm Phillips #000 screws on the inner mask.

    • Gently separate the inner mask from the headset by pulling the mask from the inner sides of the lens sockets.

Abschluss

To reassemble your device, follow these instructions in reverse order.
