Samsung Gear VR with Controller Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

If the buttons on your controller are not responding, use this guide to replace the motherboard in your controller. This replacement requires a metal spudger, iFixit opening tool, and Phillips #000 screwdriver.

  1. 2qDdABFMQeMMYTva
    2qDdABFMQeMMYTva
    cZlOERwjPENDBTWC
    3WIKOCYG5MT6VnJn

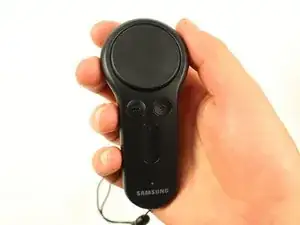

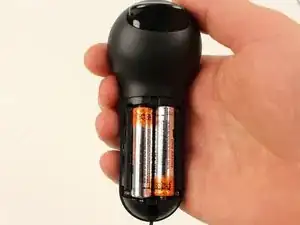

    • Turn the controller upside down to access the battery compartment.

    • The battery compartment is located on the opposite side of the buttons.

    • Press on the top of the battery plate and slide down to remove the cover.

  2. PIPMT44NUaRCsYkL
    PIPMT44NUaRCsYkL
    pWXVQcXwLQlWgQoA
    eMjOX6krc4IKbmcc

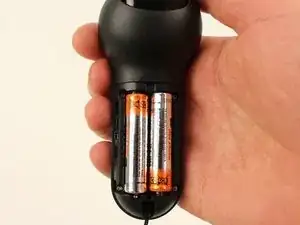

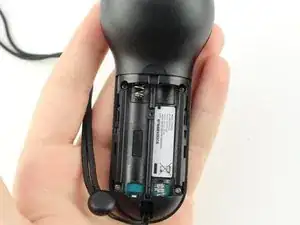

    • Remove the AAA batteries using your fingers.

  3. irPDZdvyiHh6EFQq
    irPDZdvyiHh6EFQq
    cGEZ6HBkbc6mVVca

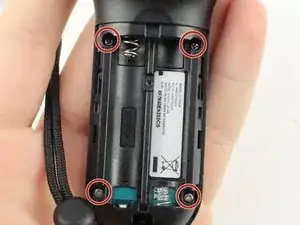

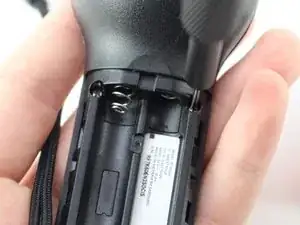

    • Remove the four 5mm Phillips #000 screws.

  4. VZUJGuMhxQNqpwVV

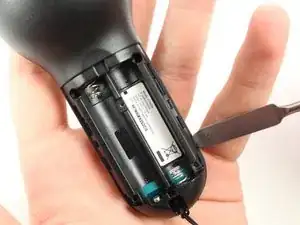

    • Use the metal spudger to pry the back side of the controller apart from the front.

    • You will have to use the spudger in many different spots along the divide before trying to separate the pieces.

  5. 1bV4AxFB6IDWqaVL
    1bV4AxFB6IDWqaVL
    X4gxkXpagHEdFRMk

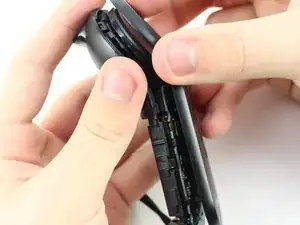

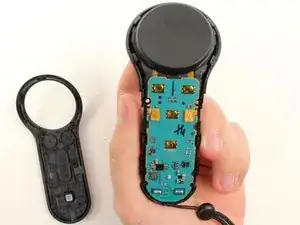

    • Pull apart the two halves of the controller to access the motherboard.

  6. JxUUjnDpmRsPbf34
    JxUUjnDpmRsPbf34
    1GD6ConXXj51SgcN
    CfbLGmQvQmUudXGm

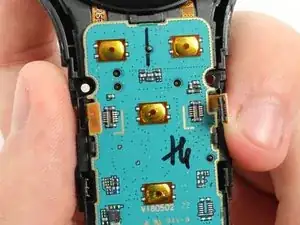

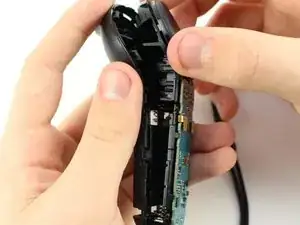

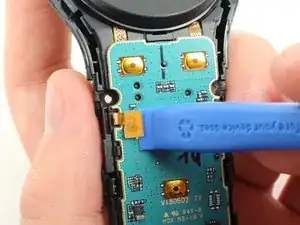

    • Pry on the two pop connectors with the plastic opening tool to detach the motherboard.

    • Separate the motherboard and trackpad from the rear part of the controller.

Abschluss

To reassemble your device, follow these instructions in reverse order.
