Einleitung
Use this guide to replace or clean the volume rocker button in your Samsung Gravity TXT.
-
-
Pry the back cover off with a plastic opening tool, or your fingernail, in the indentation on the bottom of the device.
-
-
-
Insert your finger in the groove below the battery.
-
Press the battery toward the audio jack while lifting upward and away from the phone.
-
-
-
Using your finger, push the SIM Card down and slide out of the slot.
-
Remove the SIM card away from the phone.
-
-
-
Using your fingernail, push the microSD card slightly deeper into the slot, until you hear a click.
-
After the click, release the microSD card to allow it to pop out.
-
Remove the microSD card from its slot
-
-
-
Slide the keyboard out.
-
Use a Jimmy to separate a small segment of the plastic back frame from rest of the phone.
-
Slide an opening pick around the rest of the seam, starting at the gap just created with the Jimmy.
-
Lift the plastic back frame away.
-
-
-

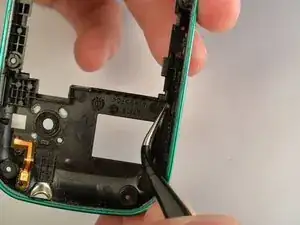

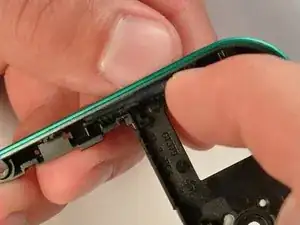

Push the + end of the volume rocker toward the inside of the back frame until it rolls over the "+ end" retainer feature on the frame.
-

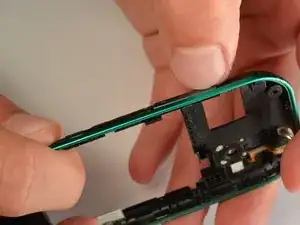

New line.Lift the button out of its slot in the frame.
-
To reassemble your device, follow these instructions in reverse order.
