Einleitung
After several times of using buttons, they can become stuck or faulty. This guide can be used to loosen or replace the record button.
Werkzeuge
-
-

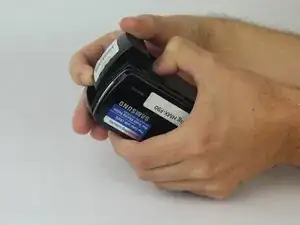

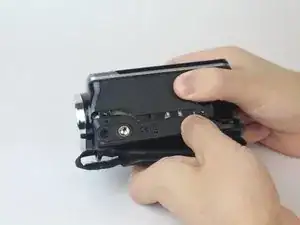

Pull the release tab away from the battery.
-

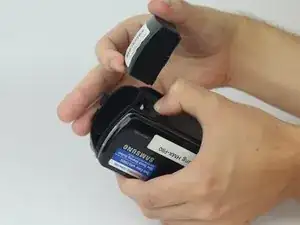

Slide the battery towards the release tab and then pull the battery away from the camcorder.
-
-
-
Rotate the camcorder so that the strap side is facing you.
-

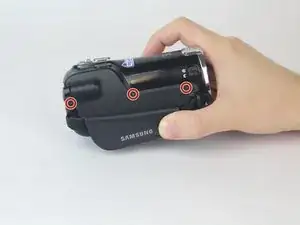

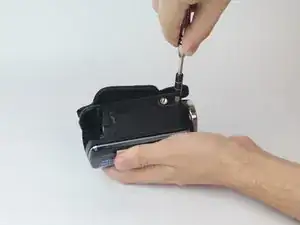

Locate and remove the three 4.5mm Phillips #00 screws around the hand strap.
-
-
-
Rotate the camcorder so that the battery slot is facing you.
-

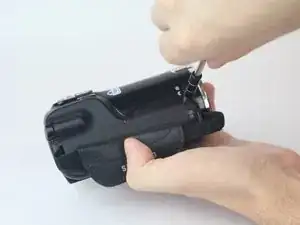

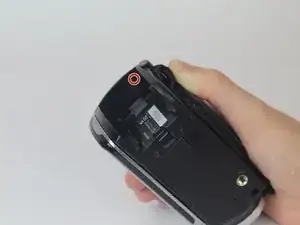

Located in the top left corner of the battery slot, remove the 4.5mm Phillips #00 screw.
-
-
-
Rotate the camcorder so you are looking at the bottom of the camcorder.
-

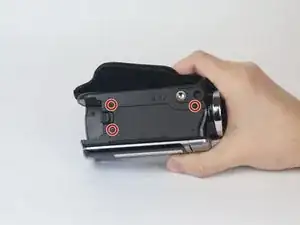

Locate and remove the last three 4.5mm Phillips #00 screws.
-
-
-

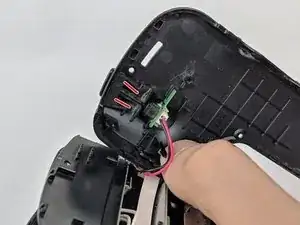

Locate plastic clips of the record button.
-

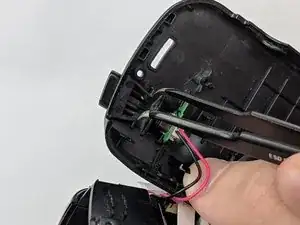

With tweezers squeeze together the two plastic clips and push the button out.
-

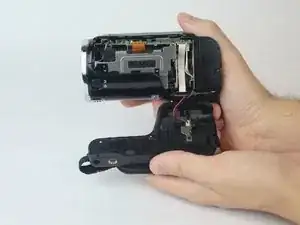

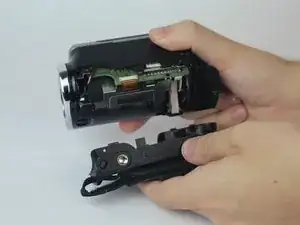

Wiggle and pull the record button to remove completely.
-
To reassemble your device, follow these instructions in reverse order.
