Samsung HMX-W200 Speaker Replacement

Geschrieben von: Haya Barakat
  • Kommentare: 2
Samsung HMX-W200 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

Keine Schätzung

Einleitung

To begin the replacement process for the speaker, the user will need to remove the outer casing. Then remove the motherboard, this will allow them to get to the speaker.

  1. QYAPnfNEvKb1LrTV

    • Remove the 5.00mm screw on the right of the LCD display towards the bottom of the device by using a Phillips #00 screwdriver.

    You also have to remove the screws at the bottom of the threaded stand mount hole, and inside the USB cover.

    Deen Hubin -

  2. aDHBBbVwSiVgLMqJ
    aDHBBbVwSiVgLMqJ
    ZtgEBoGPTCtcMJUd
    upPeWbNGkYRldUhE

    • Use the plastic opening tool to separate and remove the bottom red casing. Do this by, pushing the tool into the seam and prying up the red casing as you move along the edges.

    • Make sure to separate all the corners before removing the red casing.

  3. qimSZIDWFtUVa62O
    qimSZIDWFtUVa62O
    TDfiUWptwhQxLCsn

    • Using the plastic opening tool, separate and pull away the red casing on the right of the LCD screen.

    • Make sure to separate all the corners before removing the red casing.

    Also, remove the screw next to the SD card port before proceeding.

    Deen Hubin -

  4. LWZyrk3HkTJaCnyd
    LWZyrk3HkTJaCnyd
    NvFcwXu55IBKmdML

    • To access the HDMI slot, move slider towards the bottom of the casing on the other side of the camcorder. The lid casing will lift up upon doing so.

    • After accessing the HDMI slot you will find a 5.00mm screw. Using a Phillips #00 screwdriver, remove the screw.

  5. yDy4apJjnDYUWESe
    yDy4apJjnDYUWESe
    BUCMfhv4Gm5PAYkj

    • Using the plastic opening tool, separate and pull away the red casing to the left of the LCD screen.

    • Make sure to separate all the corners before removing the red casing.

  6. d64WmZGQaKnLuUHE
    d64WmZGQaKnLuUHE
    WZGxyhrgOcROWGGT

    • Remove the six 5.00mm screws by using a Phillips #00 screwdriver.

  7. tT4wC6nPLEJXrOQN
    tT4wC6nPLEJXrOQN
    AEFIEhiAIhAXdxiq
    FLsPoFERbsZdnC6u

    • Lift the two plastic tabs on the left side of the LCD screen and the single one on the right side on the black casing to open the device.

  8. SdG1Gw1gwc5Vvh33

    • Separate the front and back casing.

  9. cgXqE2oXETCiQ4Mn

    • Once inside the device, find the half that contains the motherboard of the device.

  10. lMnhf22eS6phSyDj

    • Use precision tweezers to gently pull out the USB connection from the motherboard.

  11. FQJh423fXtruW32x
    FQJh423fXtruW32x
    eiL54NmKfGolNBi2

    • Remove the audio connector from the motherboard (red and black cables).

    • Using the plastic opening tool, lift the connectors from all sides before pulling it with your fingers.

    • Do not pull off the connectors by the cables. This could damage the connection from the speaker to the motherboard.

  12. 2JtiEP6eQKgLf1nD
    2JtiEP6eQKgLf1nD
    xFSoKSbQQs1SMVRA

    • Use precision tweezers to remove the connector joining the LCD and the motherboard.

  13. tFeCFrgUHdmywfNO
    tFeCFrgUHdmywfNO
    DtTJ3bDV3FK2sdsd

    • Remove the six 2.00mm screws with Phillips #00 screwdriver.

  14. ZFC61Wi4mapweDMY
    ZFC61Wi4mapweDMY
    LXmVxEgkDYYKGwxX
    NctQAqClorvQrHq4

    • Lift motherboard from top left side and pull away gently.

  15. QEdKC5CMnMLrGbHo
    QEdKC5CMnMLrGbHo
    I2l3eeNhxPVqIXJa

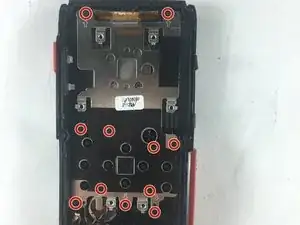

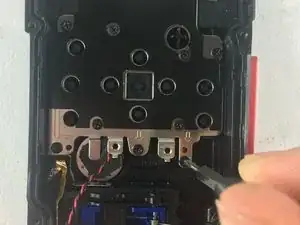

    • Under the motherboard there is a metal plate that has to be removed.

    • Use a Phillips head #00 screwdriver to remove eleven 5mm screws.

  16. QkO455JgJnZciDq4
    QkO455JgJnZciDq4
    kwZOUHPQZkdOLvoW

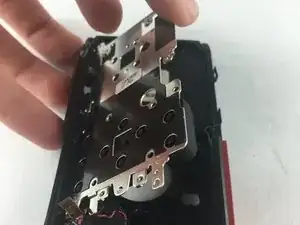

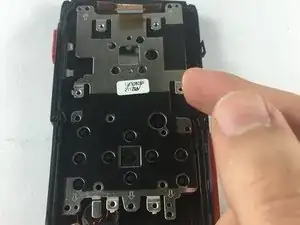

    • Lift the metal plate by pushing it up from the top right edge of the plate.

  17. QwS5JdFRilXuQKgf
    QwS5JdFRilXuQKgf
    1tVmCYewuvDoNa24
    WeJqbVMtJEGVQqxq

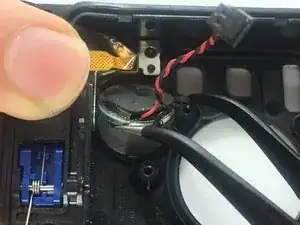

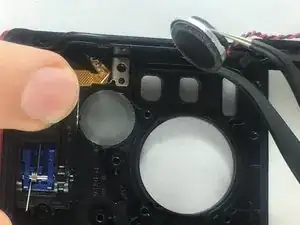

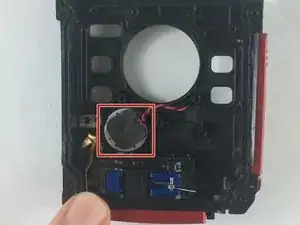

    • Use precision tweezers to remove the speaker from the casing.

    • It will be a bit difficult because the speaker is glued to the casing.

    • Be sure to only pull the speaker and not the white screen under it. This screen is what allows the speaker to be waterproof and if it gets damaged, the device will no longer be waterproof.

Abschluss

To reassemble your device, follow these instructions in reverse order.
