Samsung Impression Antenna Replacement

Orient the phone with the screen facing down.

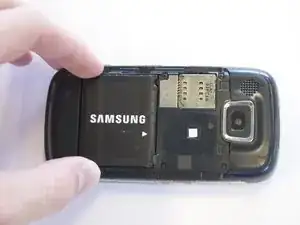

Using your thumb, slide the back panel away from the camera to expose the battery.

Insert the tip of the spudger on the left side of the battery, opposite the direction of the white arrow.

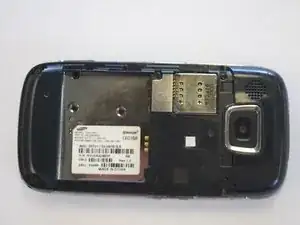

Pry the battery free. It will pivot in the direction of the white arrow.

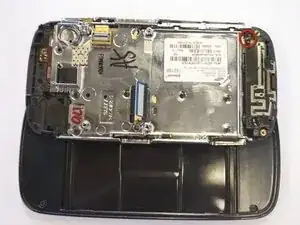

Remove the six 3.5 mm screws using a Phillips #000 screwdriver. Make sure to unscrew in a counterclockwise direction.

Remove the back cover by gently prying around the top and bottom edges with the spudger.

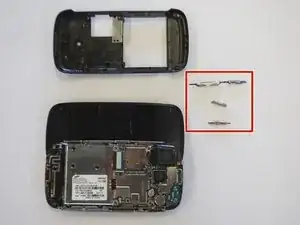

The side buttons will become loose and will fall out, so put these in a safe place.

To free the circuit board, remove the black wire that is holding it down.

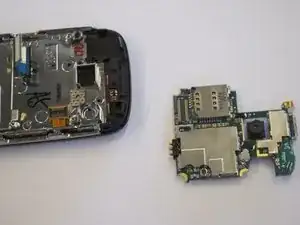

The circuit board will still be held on by a blue and black ribbon. Remove the entire circuit board by gently tugging the ribbon upwards.

Remove the 3.9mm screw holding the bottom black piece (antenna assembly) into place.

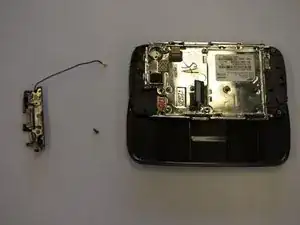

The antenna assembly will snap off.
