Samsung Impression LCD Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

30 Minuten

Einleitung

How to remove & replace the phone's LCD screen.

  1. AXDApJcHG4aOjTUm

    • Orient the phone with the screen facing down.

    • Using your thumb, slide the back panel away from the camera to expose the battery.

  2. afkrpcMfWnnXElAA
    afkrpcMfWnnXElAA
    LDcUPPQu2ETccMSH

    • Insert the tip of the spudger on the left side of the battery, opposite the direction of the white arrow.

    • Pry the battery free. It will pivot in the direction of the white arrow.

  3. OkjNXCaDbGZa2FYK

    • Remove the six 3.5 mm screws using a Phillips #000 screwdriver. Make sure to unscrew in a counterclockwise direction.

  4. cJCNQAPR2HCRHMPd

    • Remove the back cover by gently prying around the top and bottom edges with the spudger.

    • It may help to slide the touchscreen upwards when removing the back panel.

    • The side buttons will become loose and will fall out, so put these in a safe place.

  5. nACImd2sYibIS33W

    • To free the circuit board, remove the black wire that is holding it down.

    • You can remove the wire by gently prying up the gold terminator that is attached to the green circuit board. A gentle tug is all it should take.

  6. dABfYCfmonNUmQfF
    dABfYCfmonNUmQfF
    w13HItOysPgUxRmX

    • The circuit board will still be held on by a blue and black ribbon. Remove the entire circuit board by gently tugging the ribbon upwards.

  7. XJ5SUyUqtpLAAEcT

    • Remove the two base screws along the edge of the silver piece, where you just removed the black end piece.

    • The screws are 2.7mm in length.

    • The bottom black end cap will snap out.

  8. MfPsgvAcMWLs3sKK
    MfPsgvAcMWLs3sKK
    gHYj5PnynSC3RZkK

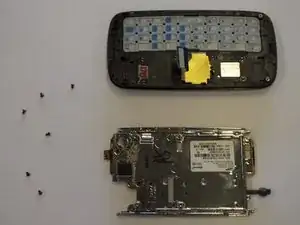

    • Remove 6 screws holding the silver plate on.

    • 2.7mm in length

    • The keys will peel right out of the screen side of the phone.

  9. F2vGXHWwa1pZpyAX

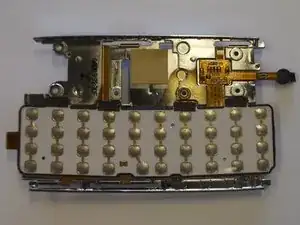

    • The silver piece you are left with is the physical keyboard assembly.

  10. M1LEeWIicFAwJFEp
    M1LEeWIicFAwJFEp
    QM4rjlWLXpLmfnCB

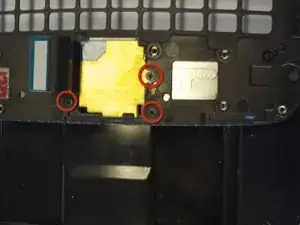

    • Remove the 3 screws holding down the flex cable.

    • The screws are 2.0 mm in length.

    • The screw that goes through the circle port on the flex cable is longer at 2.3mm long.

    • The keyboard slider frame will come off and the flex cable exposed, but not free.

  11. SoCs4ZnD5UW3NhE5

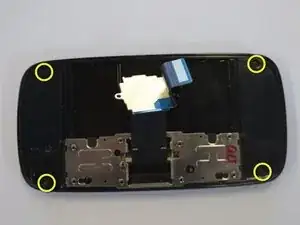

    • Remove 4 outer screws.

    • The screws are 3.5mm in length.

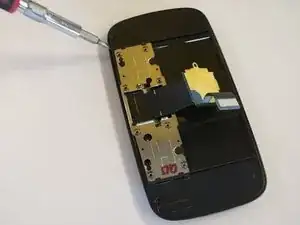

  12. JLiDjCQcQewYHnNl
    JLiDjCQcQewYHnNl
    yX24ncRMG31hUWsy
    NmJTV6wiMyvioKXE

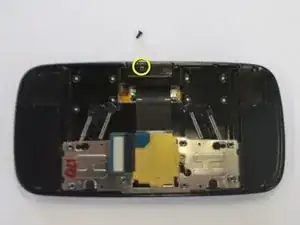

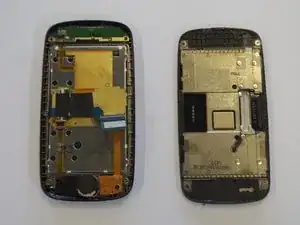

    • Slide the phone apart, and remove a 5th screw (3.5 mm).

    • Remove the outer shell by prying the edges off with your fingers, or a small screwdriver. (second image, taken before the image for above instruction)

    • The device will now be in two pieces

  13. lfGJEaThymxFXqLv
    lfGJEaThymxFXqLv
    UDKmn3yVYKFPixMS

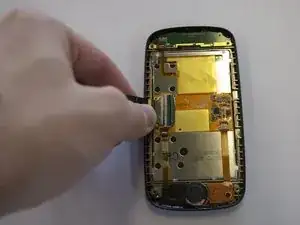

    • Lift the tab underneath the blue tape and gently pull the flex cable.

    • The flex cable will now be completely free.

  14. 2ALrlncssZAbRwr2

    • Remove the single screw.

    • This screw is 2.25 mm in length.

    • Lift the black tab at the end of the ribbon.

    • Gently pull the speaker and ribbon free.

  15. JJmK5VAEtCGVZbjc
    JJmK5VAEtCGVZbjc
    HJmTvcgrV65f3hVa

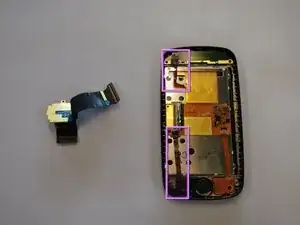

    • Lift the remaining two tabs and free their respective ribbon cables.

    • Gently pry the screen away from the housing.

    • Be careful with this step as you are in direct contact with the LCD screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
