Samsung Instinct Antenna Replacement

Geschrieben von: Jimmy Kuo
  • Kommentare: 0
Samsung Instinct Antenna Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

5 Minuten

Einleitung

This guide shows how to take out the antenna so that a replacement can be installed.

  1. I12FYsvtkc6kdHDB

    • Apply pressure to the back cover and slide it forward towards the camera.

    • Lift the back cover off the phone.

  2. UQRSMLCyVNK4TDwk

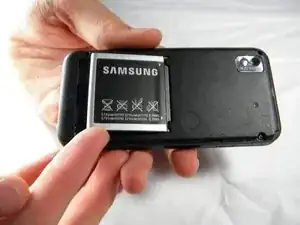

    • Holding the phone firmly, use the notches to grip and lift up the battery.

  3. CxrmvU3kupS1QffX

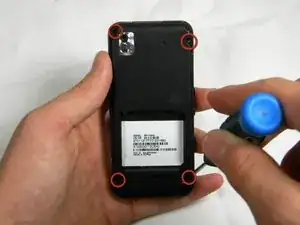

    • Remove the four 4.45mm screws at the corners of the phone.

  4. wRDRnYhaGqRefReI
    wRDRnYhaGqRefReI
    GhUg53ipd2hfPUuQ

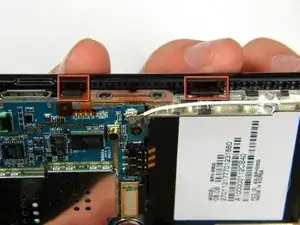

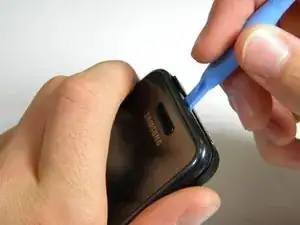

    • Use the plastic opening tool to unhinge the locks around the edges of the phone.

    • Do not worry about the inner components of the phone; they are not connected to this case.

  5. pUKHvCbB5kDUe1RC

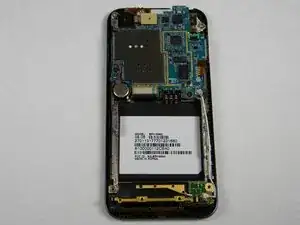

    • Lift the casing off of the phone.

  6. rGWbZ5pOsEeLaDNh

    • With the screws removed, locate the antenna.

  7. DQnQ2UY2nVEWMR3E

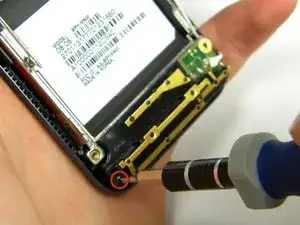

    • Using a Phillips head screwdriver, remove the 4.50mm screw holding the antenna in place.

  8. V2ipXtKadq41OUNm

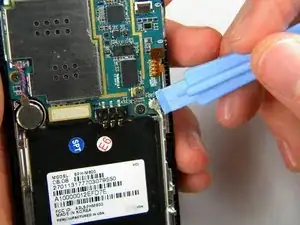

    • Using the plastic opener tool, squeeze gently on the antenna cable connector and lift to remove the connector from its position.

  9. GHLPeicFkGef5XI4

    • Gently lift up on the antenna and remove it from the back of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
