Samsung Juke Click Wheel Replacement

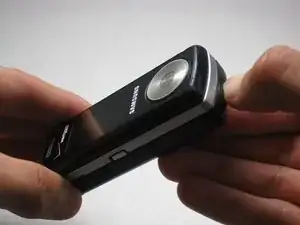

Press and hold down the button on the bottom side of the phone with your finger.

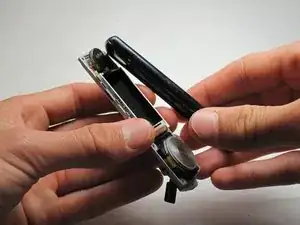

While holding the button down, remove the back cover of the phone.

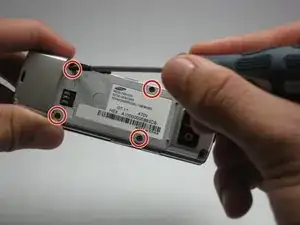

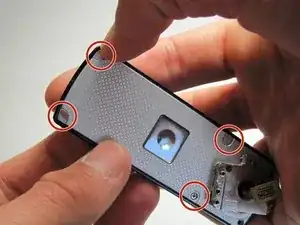

Remove the four screws from the back of the phone using a Phillips #00 screwdriver.

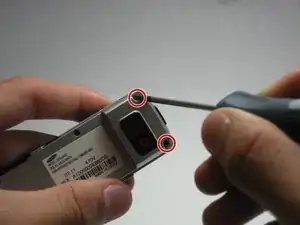

Remove the two 7.3 mm screws from the camera and the speaker at the bottom back plate of the phone using a Phillips #00 screwdriver.

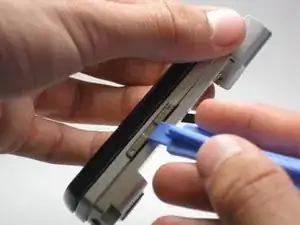

Locate the USB port (where the charger can be plugged in). Using the iFixit opening tool, open the phone cover.

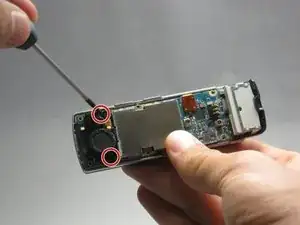

Remove the 5.5 mm screws from both sides of the camera/speaker with a Phillips #00 screwdriver.

Use the iFixit opening tool to remove the camera/speaker from the motherboard.

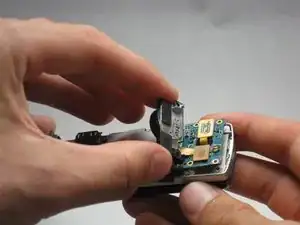

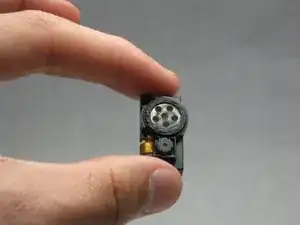

Use the iFixit opening tool to gently pry the camera/speaker off.

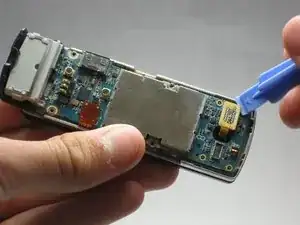

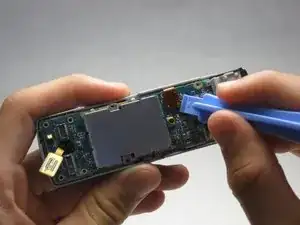

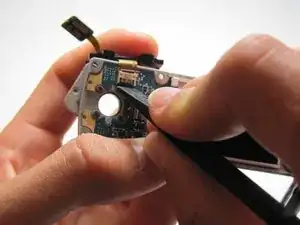

Use the iFixit opening tool to remove the yellow tab on the motherboard.

Use the iFixit opening tool to remove the other orange tab to free the motherboard.

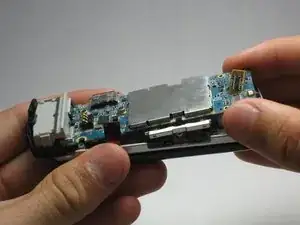

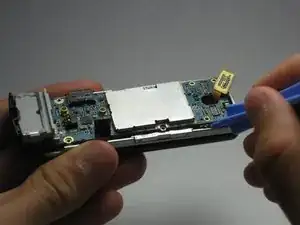

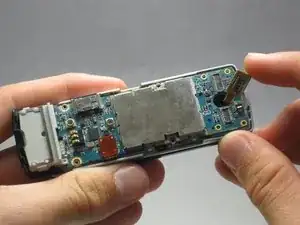

To completely remove the motherboard, use the iFixit opening tool to leverage it up, then use your fingers to pull it out.

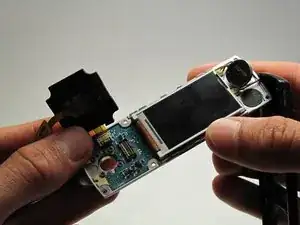

Open/swivel the phone so the back of the LCD panel is visible.

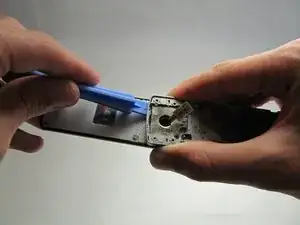

Use the iFixit opening tool to pry the keypad from the hinge on the back of the device.

Using your fingernail, remove the stickers covering the screws on the back of the LCD casing.

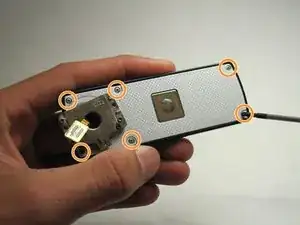

Remove six 3.5 mm screws from the back of the device using a Phillips #00 screwdriver.

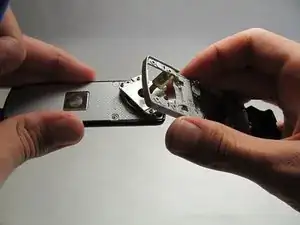

Using a generous amount of force, use your hands to pry loose the casing from the LCD panel.

Using the iFixit opening tool, remove the click wheel from the board.

After you have freed the edges, use the spudger to release the clip holding it flush to the board.

Unlock the ribbon connection by pressing down on the black clip.

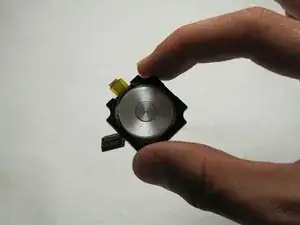

Carefully pull the click wheel away from the device.
