Samsung L100 LCD Screen Replacement

Geschrieben von: Hasit
  • Kommentare: 0
Samsung L100 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

15 Minuten

Einleitung

This guide shows how to replace the LCD screen on the Samsung L100.

  1. q2soNFxUUC5lb1ky
    q2soNFxUUC5lb1ky
    Wy6lMmSi2wEHgBVZ
    GhwphVxvUTbnKXTm

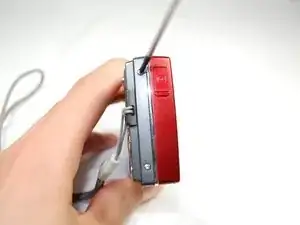

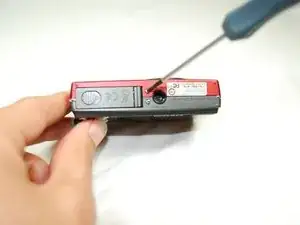

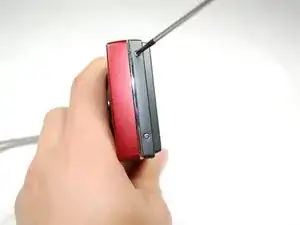

    • Remove the six external screws from the camera using a Phillips #0 screwdriver.

    • After the screws has been removed, the bottom of the back half of the external case should be loosened from the camera.

    • Be careful, make sure you don't lose the screws.

  2. ppiECWcCsQqRWXPL
    ppiECWcCsQqRWXPL
    rqmZdhu32oQEhsKx

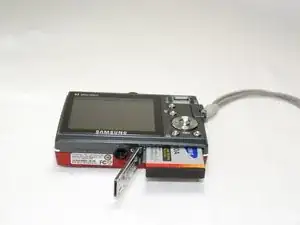

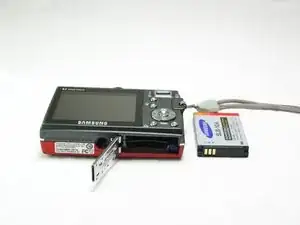

    • Open the battery cover that's located on the bottom right side of the camera and carefully remove the battery.

  3. 3TYGCgfHBJdhmRZ2
    3TYGCgfHBJdhmRZ2
    SQgNiTJKCv1PIOdD
    elgM4k3jmLnRlNBT

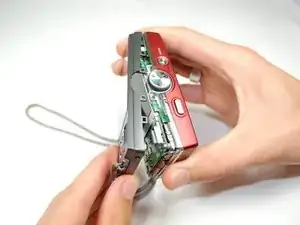

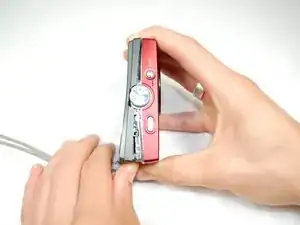

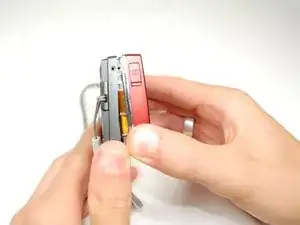

    • Slide your fingernail or a plastic spudger in the groove from the bottom to the top right side of the camera.

  4. es12lcCoBWSoRkXv

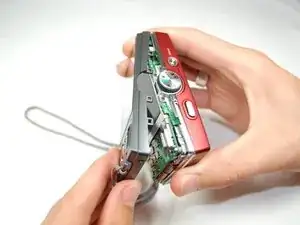

    • Carefully squeeze the top right corner of the camera and pry off the external cover.

    • If you hear a "cracking" sound. This is normal.

    • Continue to pull the external cover and it will come off cleanly.

    • Be cautious of the flash capacitor. It carries an electrical charge, that may give you an unpleasant shock.

  5. YFXwYPTkhADg5q5B

    • Carefully pull off the back cover, parts behind the back of the case might fall out.

  6. lhVjD1GkpAStAREg
    lhVjD1GkpAStAREg
    IQ5YasiYmHYZjwaE

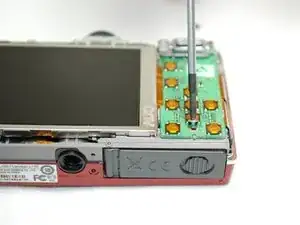

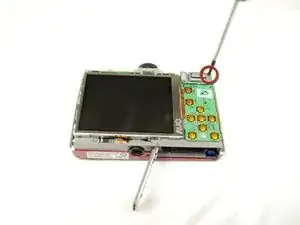

    • Remove the screws holding the circuit board.

    • Carefully remove the circuit board.

  7. nP56wHrXhQFOJuVZ
    nP56wHrXhQFOJuVZ
    kX6l1gcHByFGrOKN

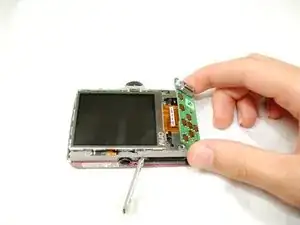

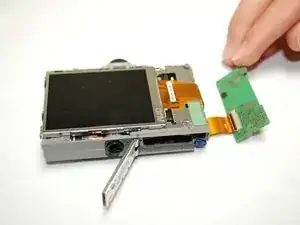

    • Carefully lift circuit board from camera.

    • Circuit board still attached to camera by ribbon.

  8. jTFv3VycqpdQV2xS

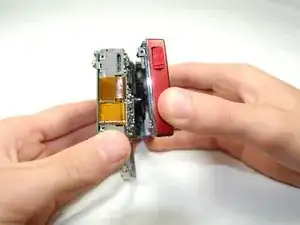

    • Remove the front cover. It should come off easily.

    • Buttons might fall out when you remove the front cover.

  9. pSRxxws6MujxOVkh
    pSRxxws6MujxOVkh
    4YZRFdnEHuDwKs4L

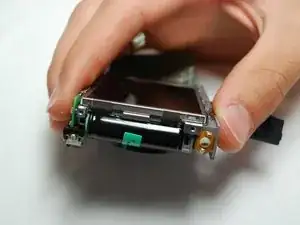

    • Remove the green tape that holds the LCD screen.

    • Carefully lift the LCD Screen.

  10. Awsx1GvjEEjWwNb1
    Awsx1GvjEEjWwNb1
    5HJOKCbr6wn1JxeX
    3XkYZyQvcqgfcEXX

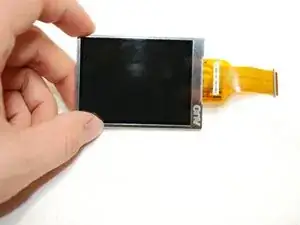

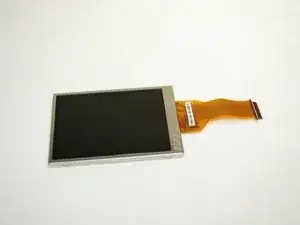

    • Flip the camera over to the other side.

    • Lift the black strip and the ribbon should easily come out.

    • The LCD Screen should be completely separated from the camera now.

  11. DDuaq64yFTSLBRqx
    DDuaq64yFTSLBRqx
    4THVOtcOZFOBXnFO

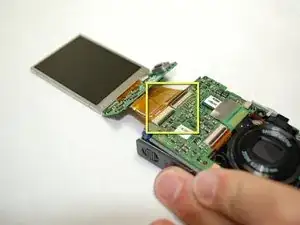

    • Insert the new LCD Screen by pushing the ribbon into the slot.

    • Flip the black strip back down to lock the ribbon in.

    • Your new LCD Screen should be connected to the camera now.

Abschluss

To reassemble your device, follow these instructions in reverse order.
