Samsung L100 camera lens replacement

Geschrieben von: Adriel
  • Kommentare: 0
Samsung L100 camera lens replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 Minuten

Einleitung

If camera lens jams or breaks, this guide will help you replace it.

  1. q2soNFxUUC5lb1ky
    q2soNFxUUC5lb1ky
    Wy6lMmSi2wEHgBVZ
    GhwphVxvUTbnKXTm

    • Remove the six external screws from the camera using a Phillips #0 screwdriver.

    • After the screws has been removed, the bottom of the back half of the external case should be loosened from the camera.

    • Be careful, make sure you don't lose the screws.

  2. ppiECWcCsQqRWXPL
    ppiECWcCsQqRWXPL
    rqmZdhu32oQEhsKx

    • Open the battery cover that's located on the bottom right side of the camera and carefully remove the battery.

  3. 3TYGCgfHBJdhmRZ2
    3TYGCgfHBJdhmRZ2
    SQgNiTJKCv1PIOdD
    elgM4k3jmLnRlNBT

    • Slide your fingernail or a plastic spudger in the groove from the bottom to the top right side of the camera.

  4. es12lcCoBWSoRkXv

    • Carefully squeeze the top right corner of the camera and pry off the external cover.

    • If you hear a "cracking" sound. This is normal.

    • Continue to pull the external cover and it will come off cleanly.

    • Be cautious of the flash capacitor. It carries an electrical charge, that may give you an unpleasant shock.

  5. YFXwYPTkhADg5q5B

    • Carefully pull off the back cover, parts behind the back of the case might fall out.

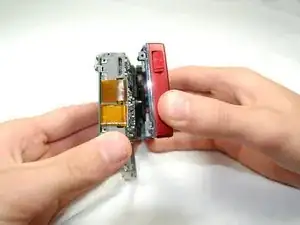

  6. NDpFm4KElfDpqajQ

    • Remove the front cover, it comes off easily.

    • Buttons might fall out when you remove the front cover.

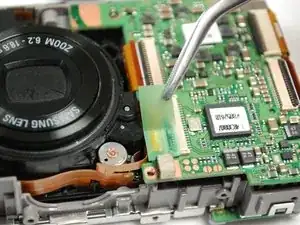

  7. qdnKXblxPQIwCDmY

    • Remove green tape from ribbon.

  8. yaUWQlMSYZGkHkai
    yaUWQlMSYZGkHkai
    TOHI4IsmN5DnIS11

    • Remove four screws around lens.

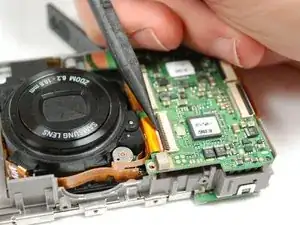

  9. btLBgNCERCv3FwBp

    • Use spudger to remove ribbon connecting the circuit board from lens.

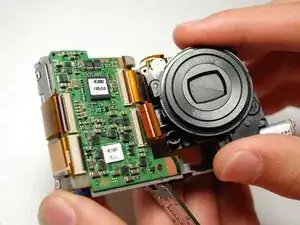

  10. ghGM5tXGM1k3WTMY

    • Remove lens from camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
