Samsung Level Box Mini Buttons Replacement

Geschrieben von: Amanda Hymer
  • Kommentare: 1
Samsung Level Box Mini Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

Samsung Level Box Mini button cleaning or replacement. Samsung Level Box Mini buttons not working.

  1. 2gPGpZxBwlRATuXs
    2gPGpZxBwlRATuXs
    RS5AHekSIGCKmL4N

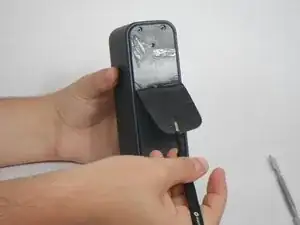

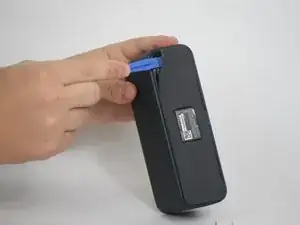

    • Using a plastic opening tool, go around the edges of the rubber bottom. Insert the same tool under the edge of the rubber and swivel side to side. Continue moving it forward while peeling the plastic off with the precision tweezers.

  2. gG4geABZSmrOcNi1

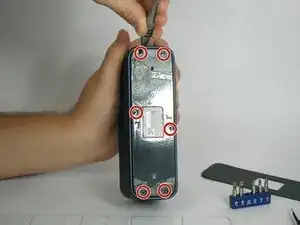

    • Remove the six 4.5 mm Philips #1 screws from the bottom plate using the Screwdriver J00 Philips Head. Take off the bottom plate.

  3. BQScIvdA2SGX42bW

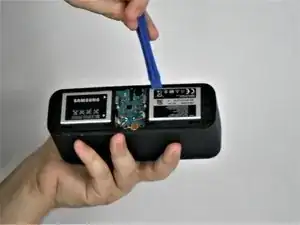

    • Using the plastic opening tool, remove the batteries from the device.

    This repair guide is less useful considering the part number for the battery is not included. There are a number of different Samsung batteries available for different devices. Since you already had the cover off, why not post the part number so that readers can order the correct part?

    Lenny Tompkins -

  4. anPTMhOOLXWi3Ctd
    anPTMhOOLXWi3Ctd
    bgSmbs1gl4QhvwLK
    mYdYsZte6J264uuH

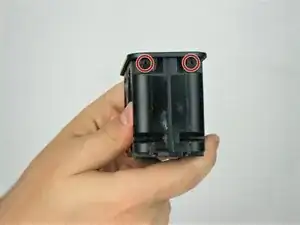

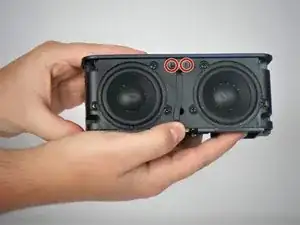

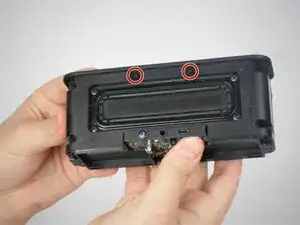

    • Remove the eight 1.6 mm Philips #1 screws from the sides, front, and back of the device using the Screwdriver J000 Philips Head.

  5. QZPiS1Gd1qYaa2wD

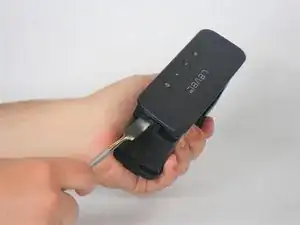

    • Remove the top of the device using the metal spudger.

  6. LDEpU5bVT3raR6Yx
    LDEpU5bVT3raR6Yx
    mEnoHbiaCs4s2Kal

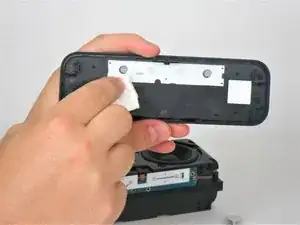

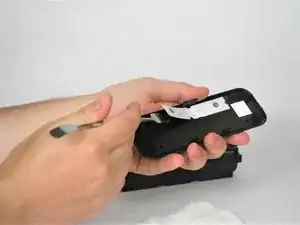

    • Clean the white plastic using a cloth. Remove the white plastic using the metal spudger.

  7. fnGHJ3vFhjcd4gXw

    • Clean the top of the buttons using a cloth.

Abschluss

To reassemble your device, follow these instructions in reverse order.
