Samsung MV900F Screen Replacement

Geschrieben von: Ethan Rowland
  • Kommentare: 2
Samsung MV900F Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will demonstrate eight steps on how to replace the flip screen on a Samsung MV900F Smart Camera.

  1. LS2H3FsJ6ayBAEXO

    • Slide the lock towards the middle of the camera, in the same direction of the arrow.

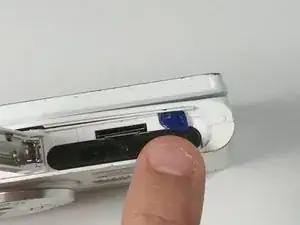

  2. WEaOAJwtXdSSsbvT

    • Push the blue battery holder up in the direction of the arrow.

  3. XNhXSnVBZAOPmilP

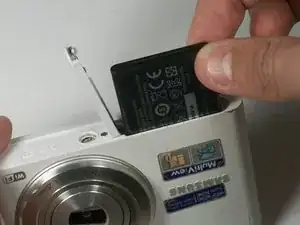

    • Pull the battery out of the battery slot.

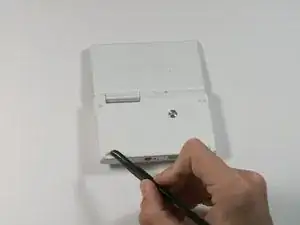

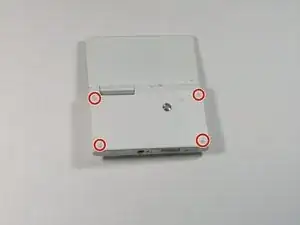

  4. WdlmgNXkP2mgIOOR
    WdlmgNXkP2mgIOOR
    OxgKByoxdlA34Vwn

    • Use tweezers to remove the four rubber screw covers.

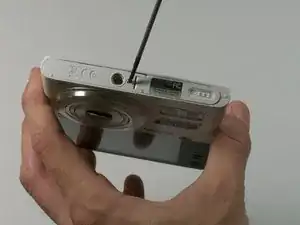

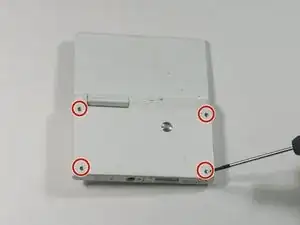

  5. AHPdiTNqFISFu3b1
    AHPdiTNqFISFu3b1
    ssY4Tyj2FiJZcEEs

    • Remove the four Phillips 2.381 mm screws on back side of camera and one Phillips 2.381 mm screw on the bottom of the camera, using a Phillips #00 screwdriver.

  6. 3EBmE3IYHO1baCYC

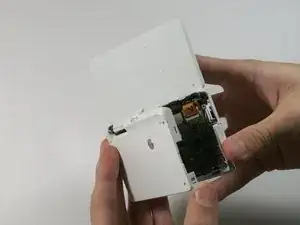

    • Remove the back casing by just carefully pulling the casing off of the camera.

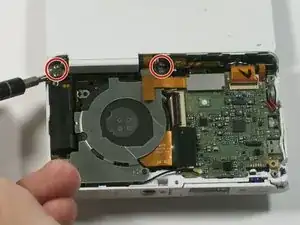

  7. OKWr5Ed2j2KZGw1E

    • Use the Phillips #00 screw driver to remove the four 2.381 mm screws next to the screen hinge.

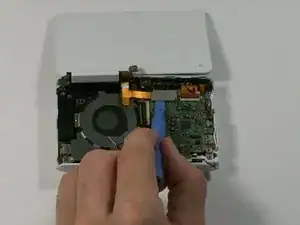

  8. LK1gJRaDoxsIbonA

    • Use plastic opening tool to disconnect screen connector from the control board.

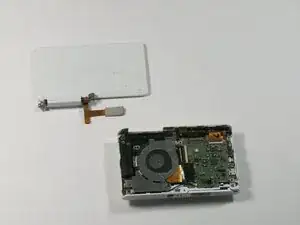

  9. U6FWFbXcZkVXhcYB

    • Remove the old screen.

    How to replace lcd in the old screen? How to open it?

    lynda_myself -

Abschluss

To reassemble your device, follow these steps in reverse order.

Tinte & Feder

Ethan Rowland

Mitglied seit: 03/03/15

201 Reputation

Ein Kommentar

Anyone an Idea where I can buy a cheap new display for that cam?

Bernhard Prieler -
