Einleitung
This guide will show users how to remove their phone's back cover, exposing many of the inside parts. It will then show readers how to replace a faulty camera.
Werkzeuge
-
-

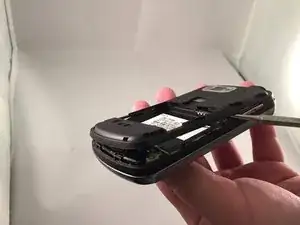

Place a finger in one or both of the indents by the bottom of the battery. Then pull out to remove the battery from the phone.
-
-
-

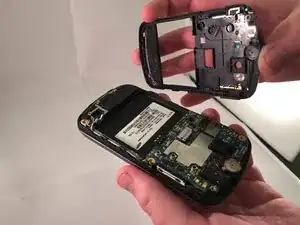

Use a spudger to peel back the green processing chip, exposing the wires underneath. Identify the thin golden band which connects the camera to the rest of the phone.
-
-
-
Using the spudger, separate the golden band from its resting dock. It should come apart fairly easily, like undoing a bit of velcro. Once separated, the camera should slide out.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
