This guide will instruct you on how to replace the motherboard of the Samsung Mythic SGH-a897. To successfully remove the motherboard tweezers will be used to remove cables, ribbons flip levers, and remove components.
-
-
To remove the phone's back cover, slide your fingernail into the slit at the bottom of your phone.
-
-
-
Place your finger on either bottom corner of the battery slot and lift to remove the battery.
-
-
-
Using a Phillips #00 Screwdriver, remove the six 5 mm screws from the back casing of the phone.
-
-
-
Using the iFixit Opening Tool, insert the tool into the seam between the back case and the rest of the phone.
-
Working along the seam, pry the back casing from the phone.
-
-
-
Carefully remove the camera by using the iFixit Tool to pry the camera cable from the motherboard.
-

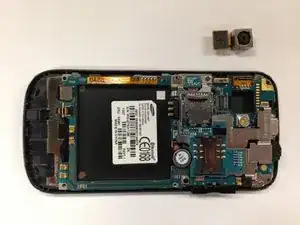

Carefully remove the camera from the phone's motherboard.
-
-
-

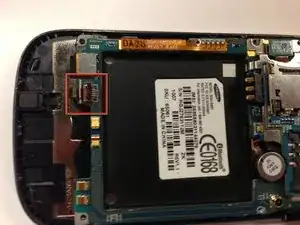

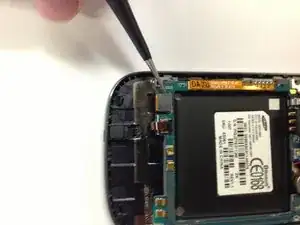

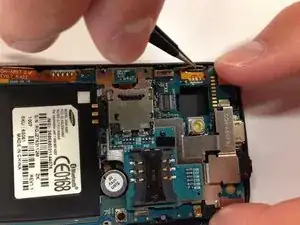

Using tweezers, firmly grip the black lever at the bottom of the motherboard.
-

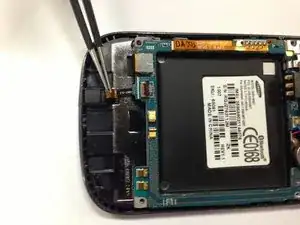

Use the tweezers to flip the black lever up so that it is upright from the motherboard.
-
-
-

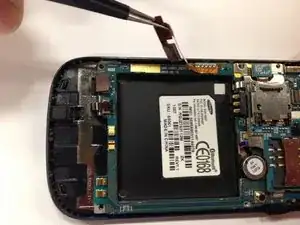

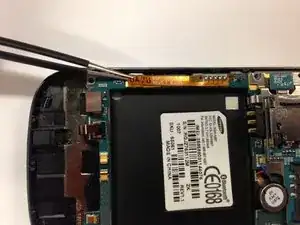

Use the tweezers to unclip the other orange ribbon cable along the left side of the phone.
-
-
-

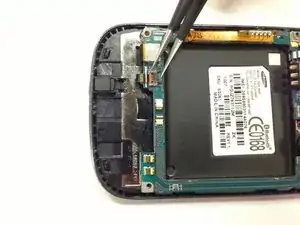

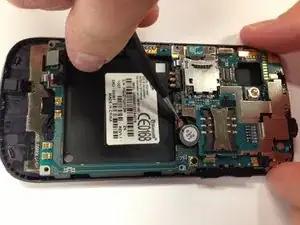

Using either side of the tweezers, slide a side of the tweezer underneath the red and blue wires and the capacitor.
-

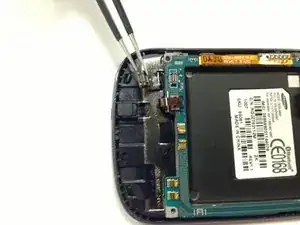

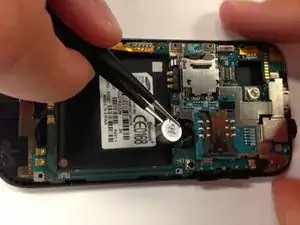

Carefully lift the capacitor away from the phone.
-
-
-

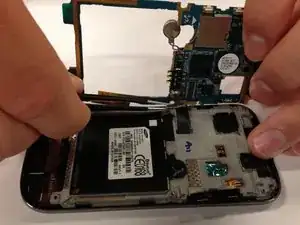

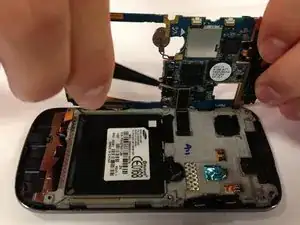

Carefully tilt the motherboard up from the back of the phone.
-
Use tweezers to unclip the black connector.
-
To reassemble your device, follow these instructions in reverse order.
